Case info

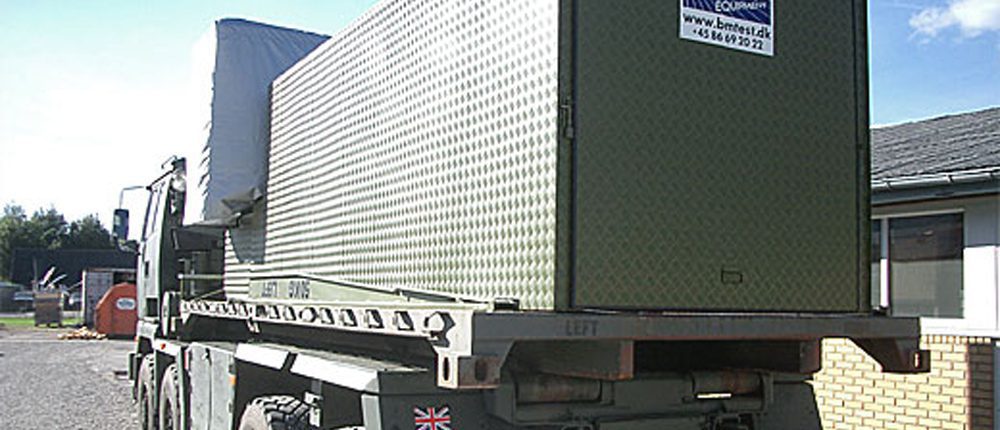

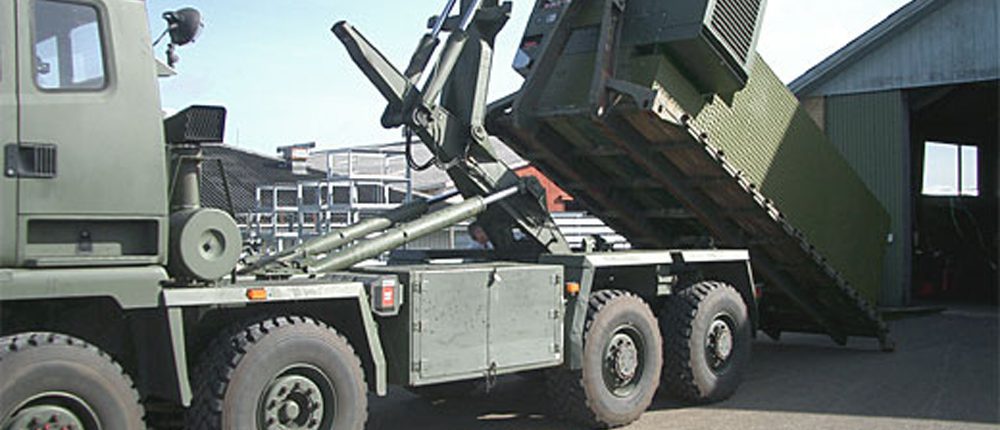

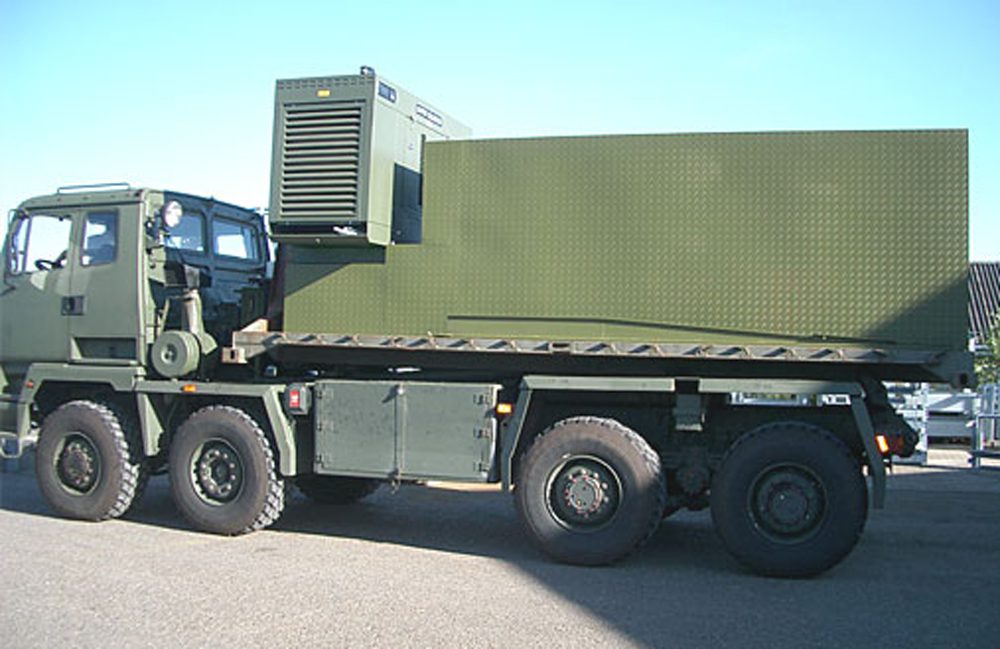

The BM20200 is transported inside a specially designed house, which is built onto a flatrack (DROPS). This solution is used by several armed forces.

More Info

Case details

The flatrack concept

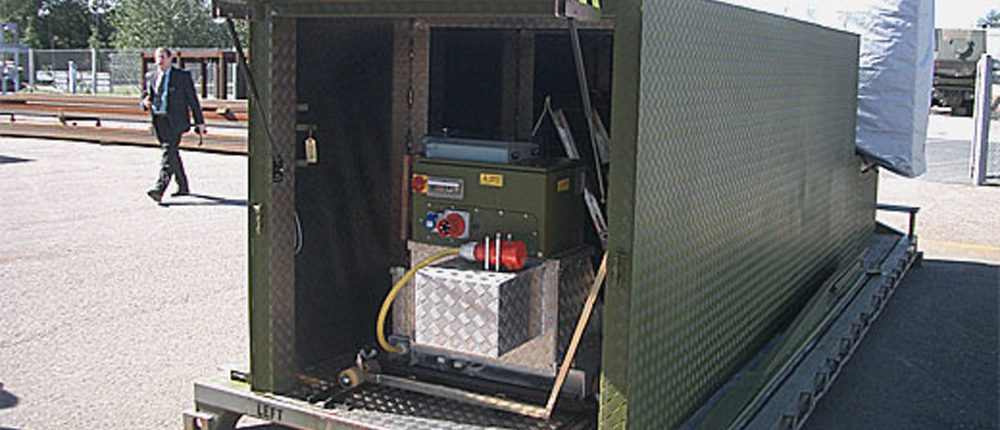

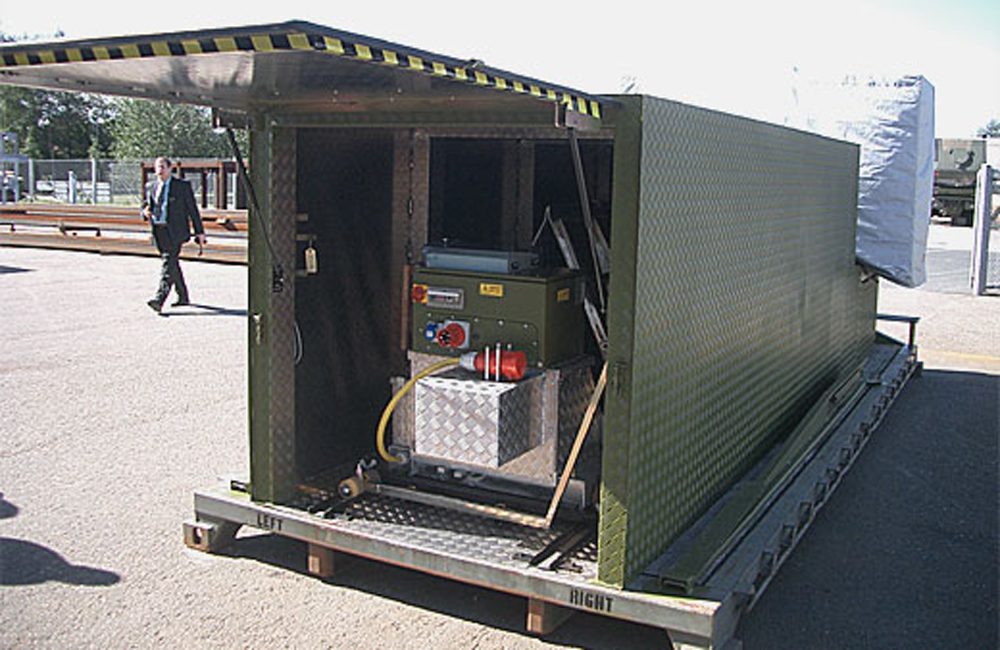

The house is built in aluminium and contains a set of ramps, which are placed on the ground behind the house. Each ramp has a weight of only 50 kg and can therefore easily be moved by two persons.

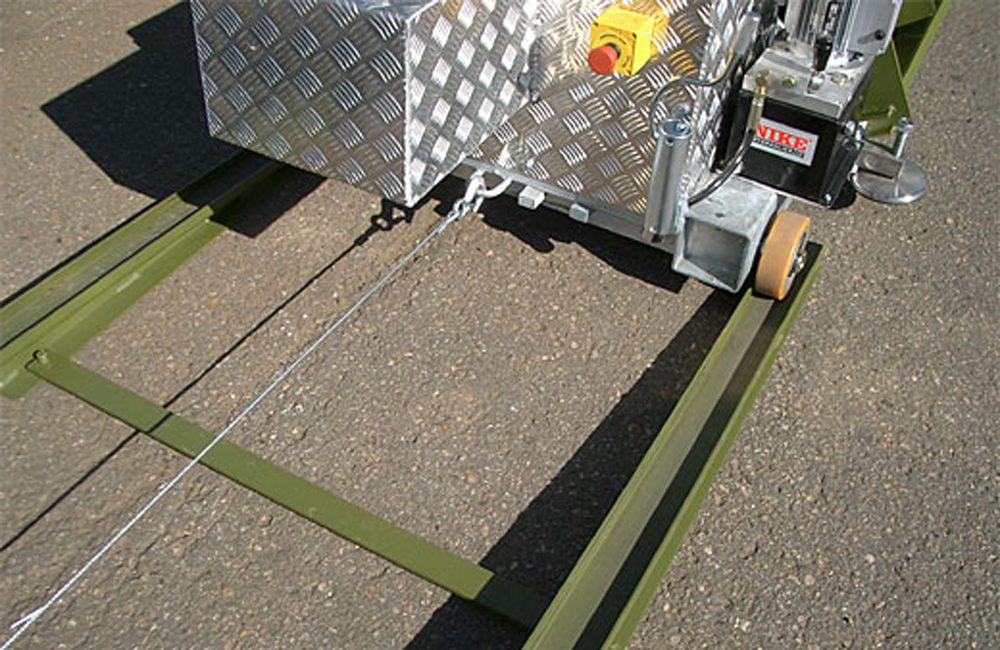

The house is equipped with an electrical winch controlled via cable remote control, so a single person can handle loading and unloading of the brake tester. Additionally, the house is equipped with a manual winch for backup and a battery, which powers the electrical winch.

The house is also equipped with special lockable transport boxes for tools and calibration equipment.

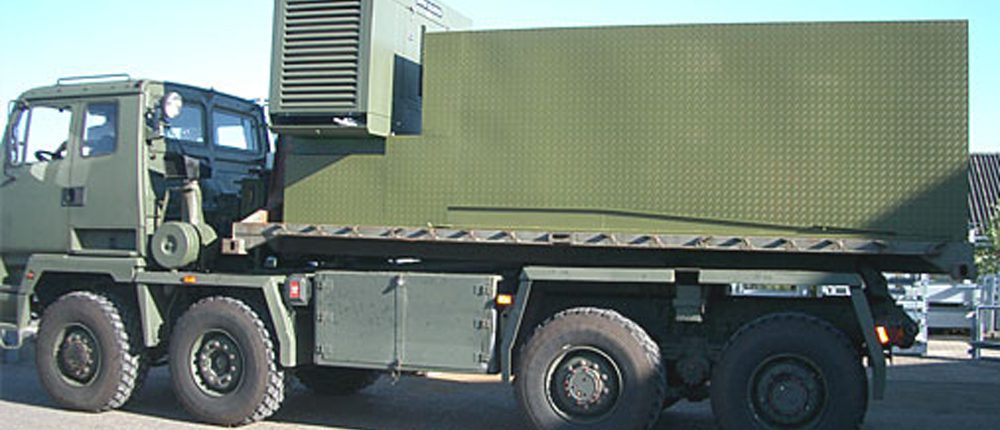

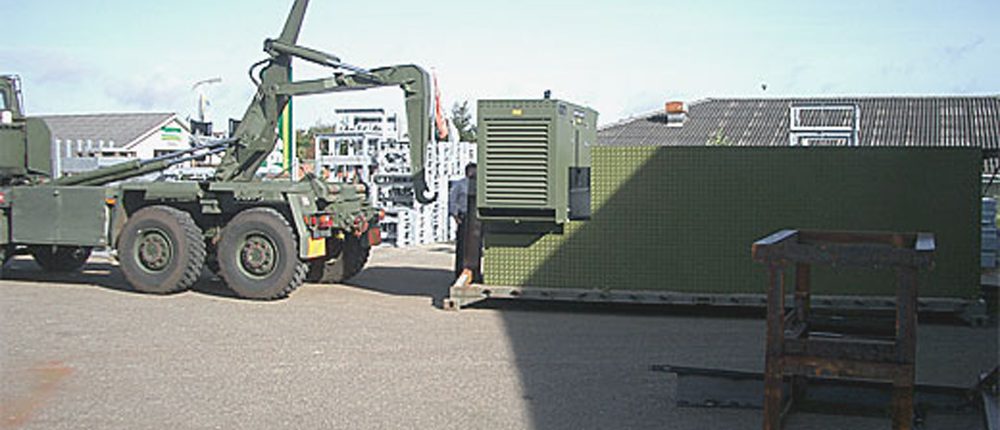

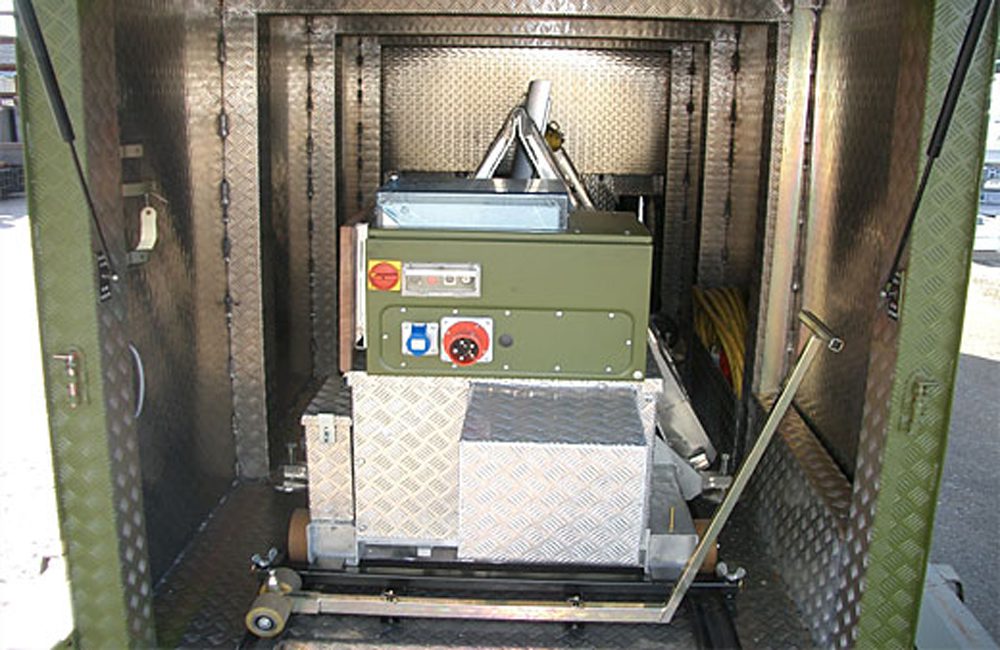

The concept includes a generator, which is mounted in front of the house on a robust frame system and the room inside this frame is used for placing power cables and tools.

Product description

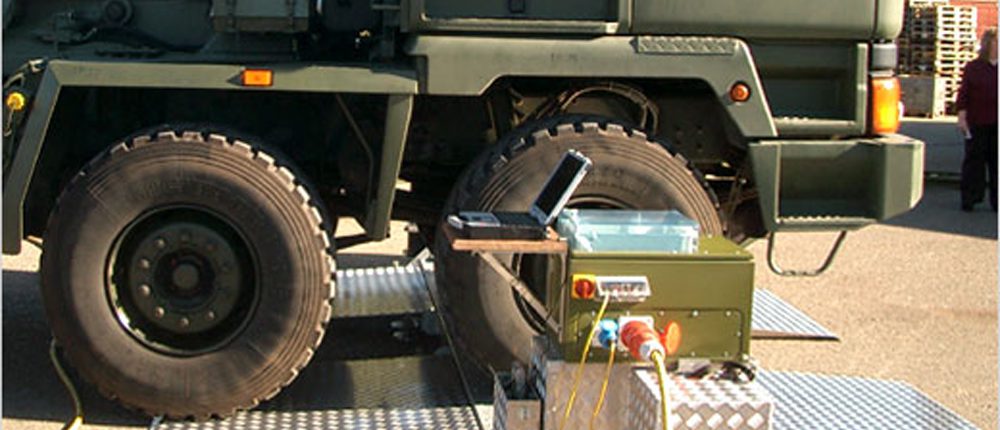

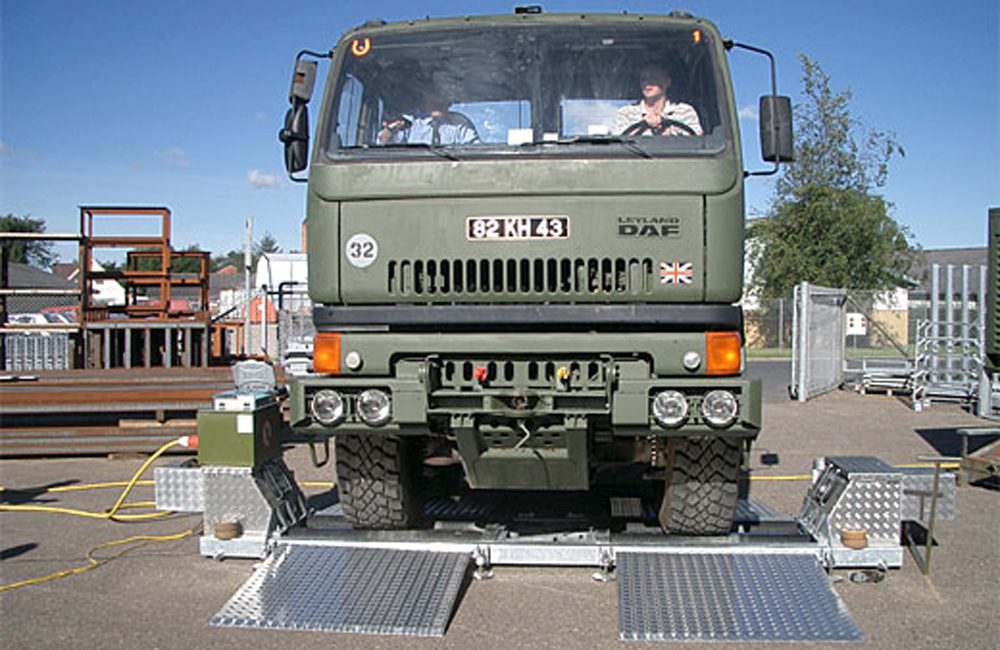

The BM20200 tester features all options known from normal in-ground brake testers such as:

  • Infrared remote control
  • Service line and cylinder air pressure measurement
  • Automatic axle weighing
  • Test of 4×4, 6×4 and 8×6 driven vehicles

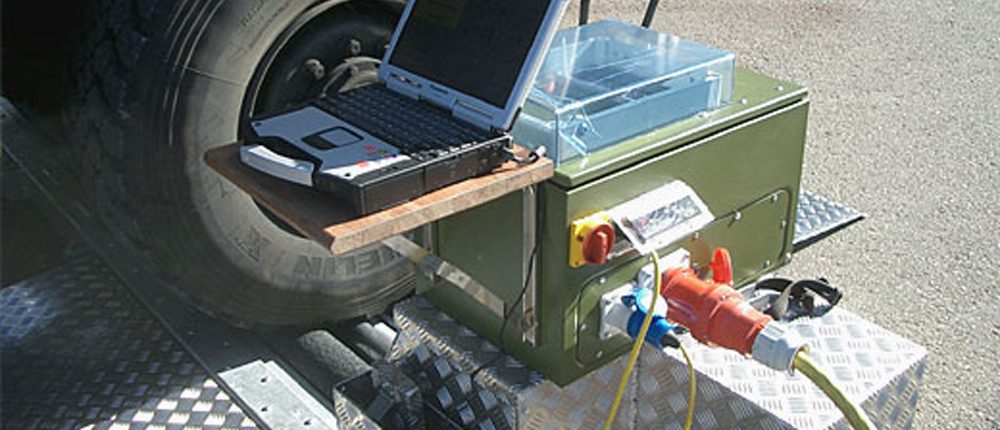

  • Diagnostic printout connection to PC/Notebook with BM Windows software
  • Axle Load Simulation

The BM20200 mobile brake tester is supplied to armed forces from

  • Germany
  • USA
  • Denmark
  • England

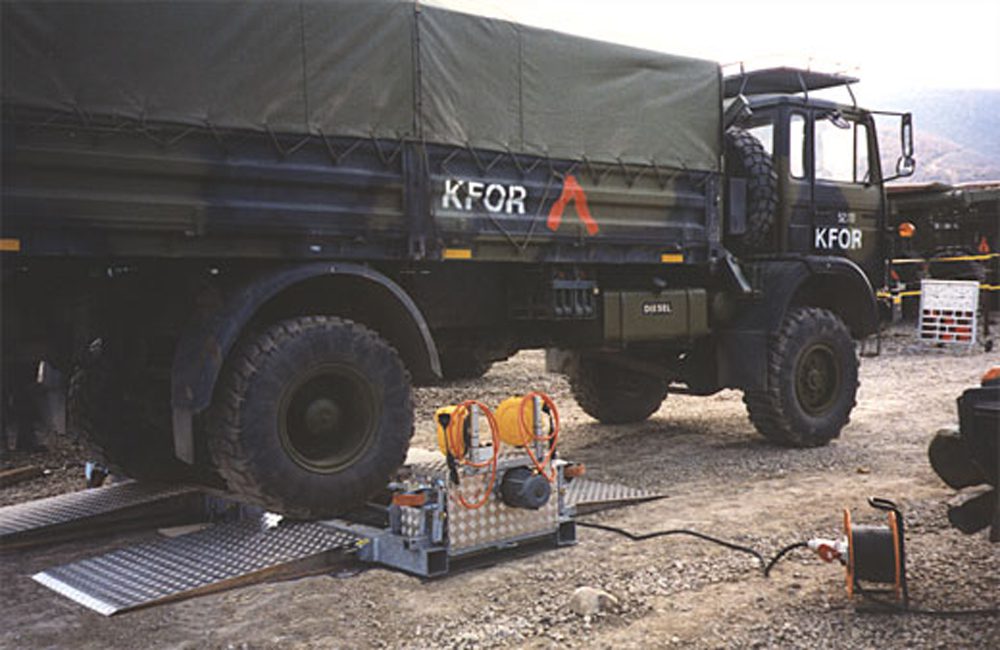

  • and operated in areas like Kosovo, Iraq and Afganistan.

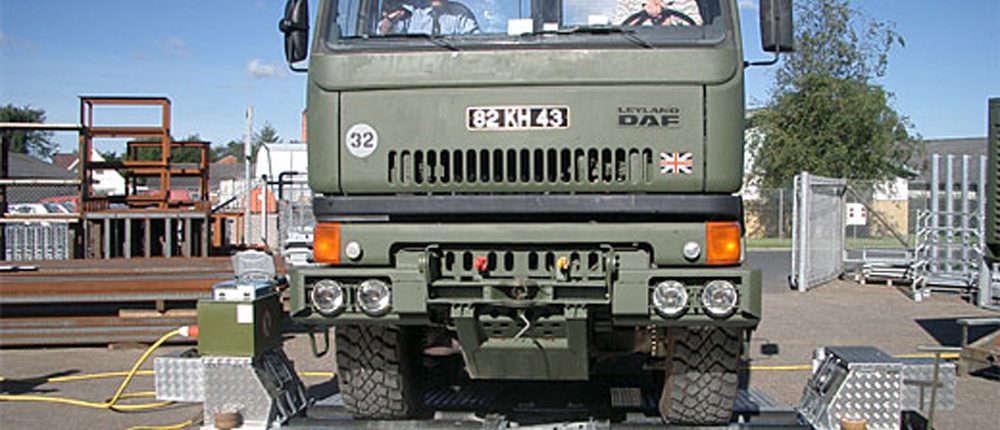

The robust design of the BM20200 allows it to be placed on gravel ground potentially supported only by small steel plates under each of the six feets.

The brake tester is designed with night light projectors and axle load simulation system power from the electrical power supply.

The display of the BM20200 is normally mounted on a mobile display on wheels, which are placed in between the rollers, when transporting it.

The BM20200 is approved by several international authorities like RWTÜV Germany and complies with the ISO standard.
