Case info

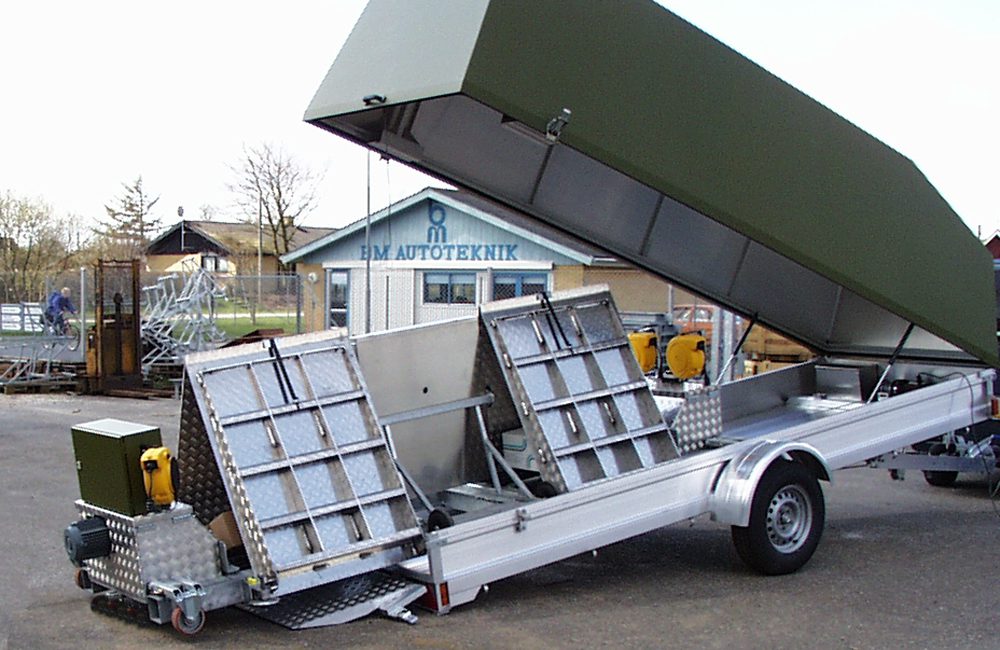

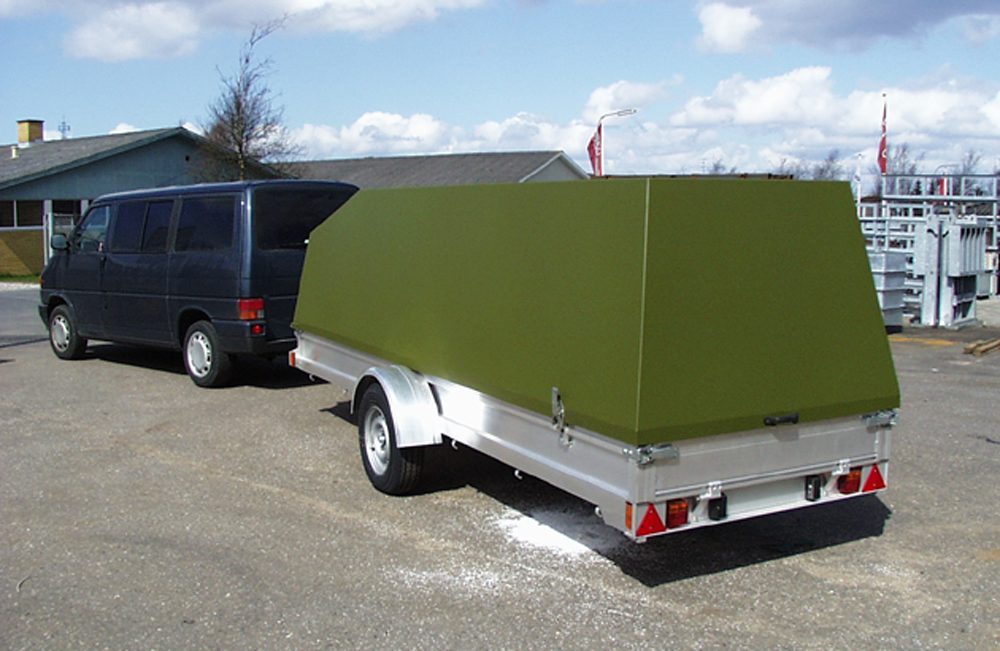

The BM20200 is transported inside a speciel designed trailer. The trailer body is tilted in order to load/unload the BM20200 brake tester and the rear door of the trailer is used as ramp.

More Info

Case details

The trailer is equipped with an electrical winch controlled via cable remote control, so one person can handle loading and unloading of the brake tester. Additionally the trailer is equipped with a battery, which powers the electrical winch and a manual winch for backup.

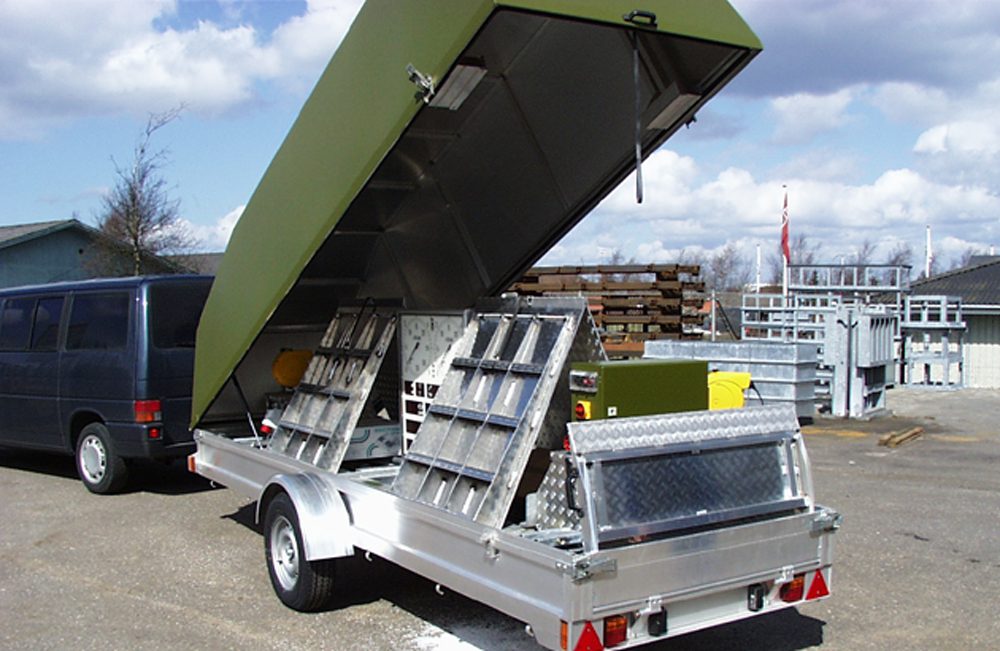

The trailer is also equipped with special lockable transport boxes for tools and calibration equipment.

The trailer is designed according to CEE norms and can be registered with licence plates in all countries in Europe.

The trailer concept does not include power supply to the brake tester. Power supply can be provided by a generator or from a normal house installation. Power requirement is as standard 3-phase 25 amp.

Product description

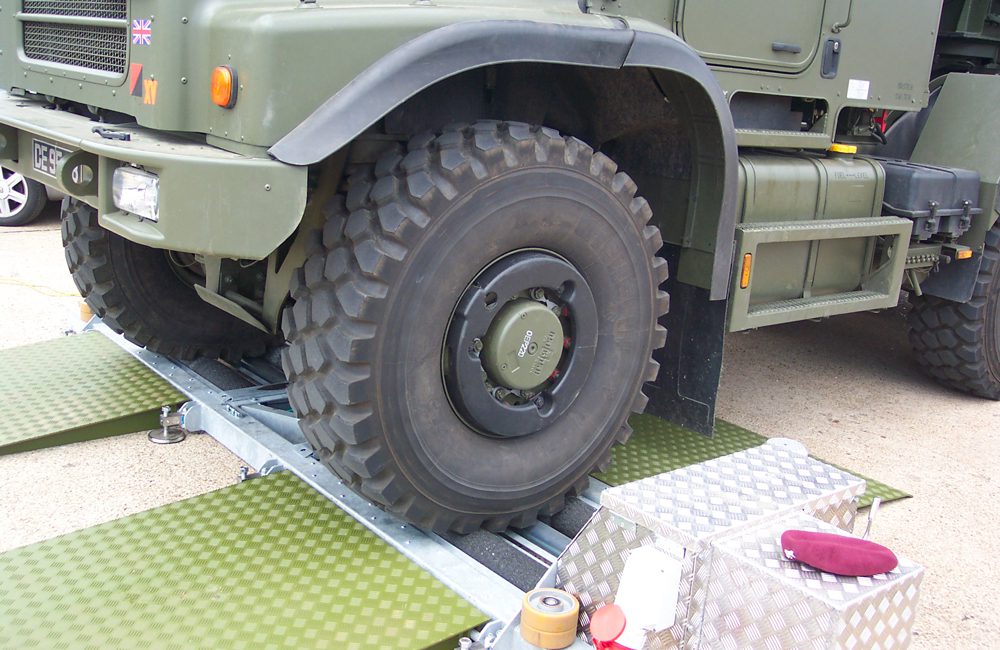

The BM20200 tester features all options known from normal in-ground brake testers such as:

  • Infra Red remote control
  • Service line and cylinder air pressure measurement
  • Automatic axle weighing
  • Test of 4×4, 6×4 8×6 driven vehicles
  • Diagnostic printout connection to PC/Notebook with BM windows software
  • Axle Load Simulation

The BM20200 mobile brake tester is supplied to armed forces from

  • Germany
  • USA
  • Denmark
  • England

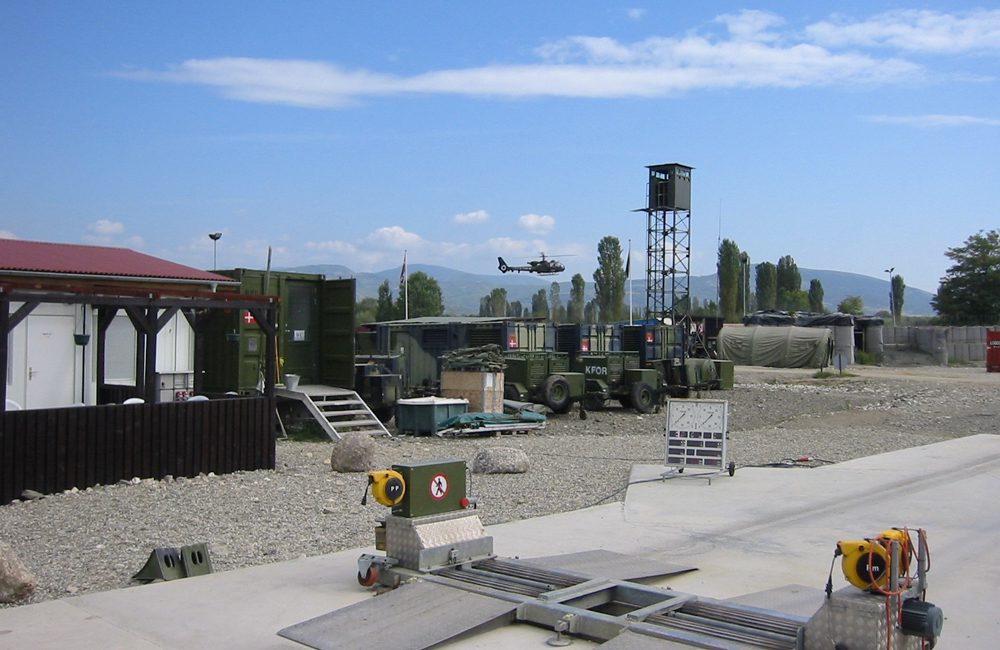

  • and operated in areas like Kosovo, Iraq and Afganistan.

The robust design of the BM20200 allows it to be placed on gravel ground potentially supported only by small steel plates under each of the six feets.

The brake tester is designed with night light projectors and axle load simulation system power from the electrical power supply.

The display of the BM20200 is normally mounted on a mobile display on wheels, which are placed in between the rollers, when transporting it.

The BM20200 is approved by several international authorities like RWTÜV Germany and complies with the ISO standard.
