Product description

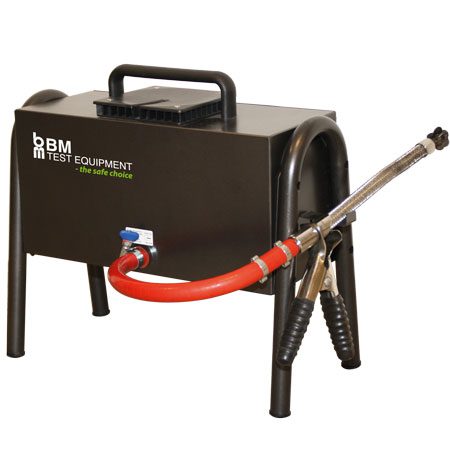

The BM3101 smoke meter is a cost effective solution.

The smoke meter features a range of options that allows for a customized configuration.

Accurate and consistent measurements.
Robust and long lasting.
Low maintenance costs.
Consists of measuring head unit and a handheld unit with software.
- Transfer of test data from measuring head to handheld unit via Bluetooth.
Can be supplied with Bluetooth printer solution.
Prepared for integration with BM FlexCheck software.
- Allows for fully automated one or multilane test facilities.

Technical data

Effective length of the measuring chamber	215 mm, +/- 0.05 cm
Hose length for opacity probe	0.5 m 2 m 4 m
Size (LxWxH)	500 x 250 x 415 mm
Preheating time	3 to 6 min depending on surrounding temperature
Zero adjustment and calibration before use	Automatic
Control of zero adjustment	Automatic by electrical filter centered at 50 %
Display (optional)	PDA, smartphone or tablet
Humidity	30% – 90%
Surrounding temperature	5°C to 40°C
Storage temperature	-32°C to +55°C
Measurement range - opacity	0.0 to 9.99 m-1
Measurement range - resolution	0.01 m-1
Electrical response time	0.9 sec
Power supply x 1	0.9 A / 230 Vac (+10-15%) 1.5 A / 115 Vac 50 – 60 Hz (+/-2%)
