Product description

The BM3201 combined emission tester is for emission testing of vehicles.

The tester features a range of options that allows for a customized configuration.

Accurate and consistent measurements.
Robust and long lasting.
Low maintenance costs.

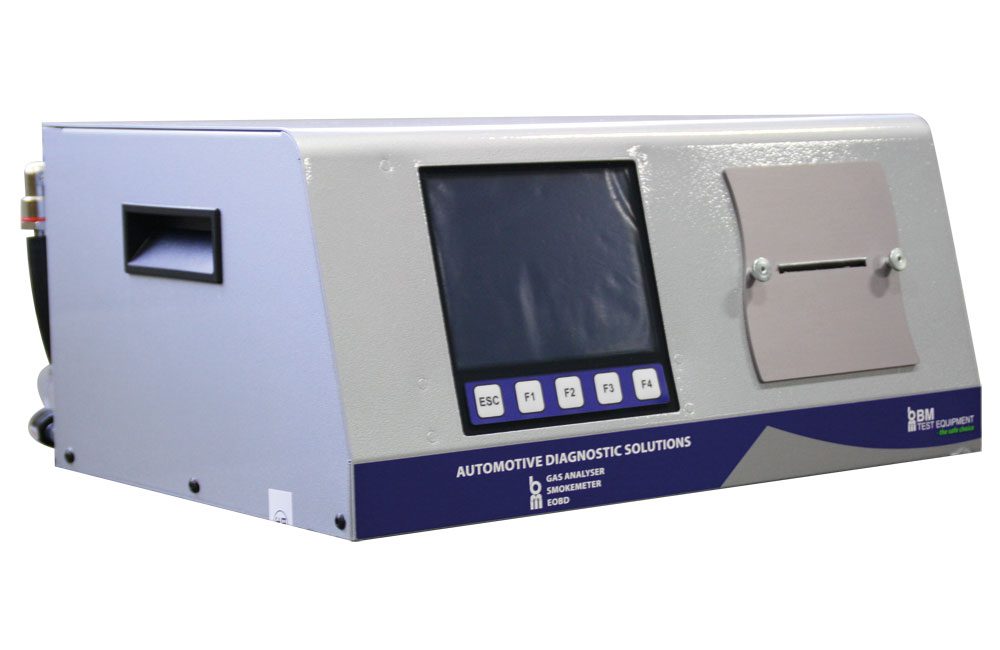

Graphic screen and 5-key keyboard.
Guided test procedure on LCD display and handheld unit.
Thermal integrated printer (or Matrix Dot on demand).
Intelligent control of gas pump via handheld unit to ensure long pump lifetime.
Petrol and diesel rev-counter.
Prepared for integration with BM FlexCheck software.
- Allows for fully automated one or multilane test facilities.

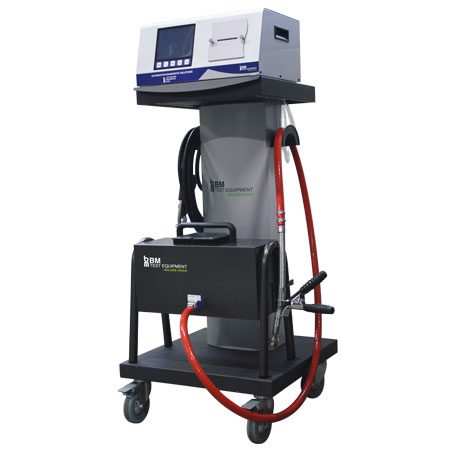

Can be supplied with mobile trolley for easy movement:
- Standard trolley or “tough” trolley.

Technical data

Effective length of the measuring chamber	215 mm, +/- 0.05 cm
Hose length for opacity probe	0.5 m 2 m 4 m
Hose length for gas sampling probe	7.5 m
Size (LxWxH)	500 x 250 x 415 mm
Size of display unit (LxWxH)	400 x 380 x 200 mm
Preheating time	3 to 6 min depending on surrounding temperature
Zero adjustment and calibration before use	Automatic
Control of zero adjustment	Automatic by electrical filter centered at 50 %
Display (optional)	PDA, smartphone or tablet
Humidity	30% – 90%
Surrounding temperature	5°C to 40°C
Storage temperature	-32°C to +55°C
Measurement range - opacity	1.0 to 9.99 m-1
Measurement range - resolution	0.01 m-1
Electrical response time	0.9 sec
Power supply x 2	0.9 A / 230 Vac (+10-15%) 1.5 A / 115 Vac 50-60 Hz (+/-2%)
Size standard trolley (LxWxH)	500 x 500 x 1000 mm
Size "tough" trolley (LxWxH)	550 x 550 x 1300 mm
