Product description

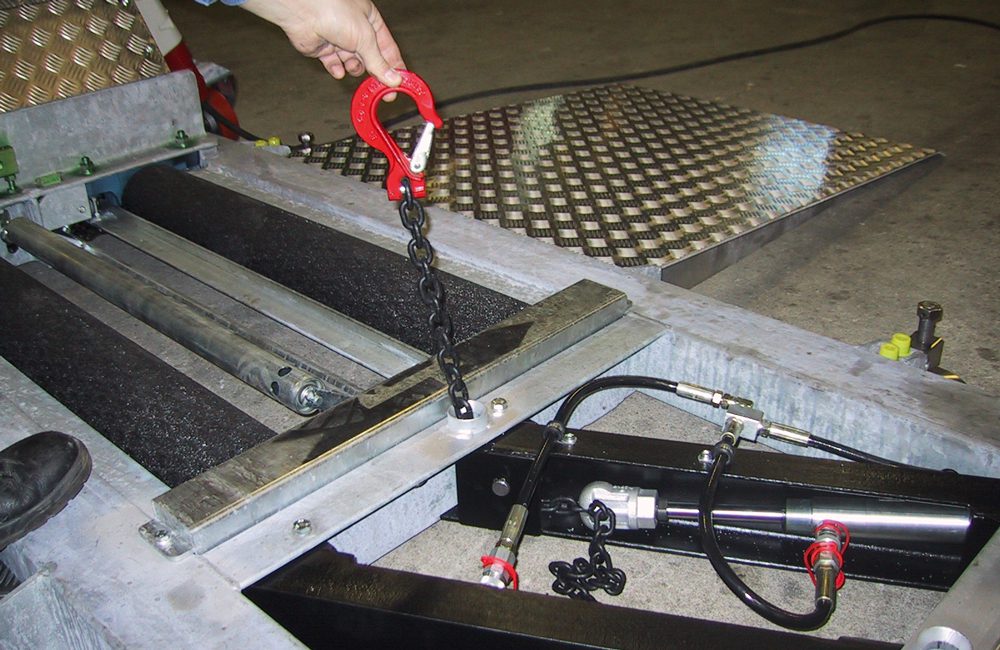

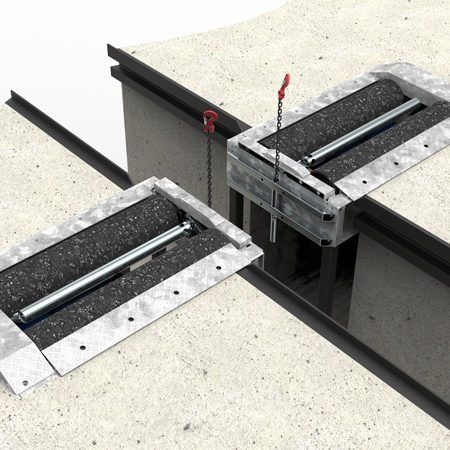

The BM ALS – axle load simulation is easily installed or retrofitted to the sides of the subframes of the heavy vehicle brake testers: BM12200 and BM14200.
This system features a range of options that allows for a costumized configuration.
OPTIONS
- Load is applied to the axle of the vehicle.
- Load sensing valve/function and suspension system of the vehicle will not be activated or tested.
- Load capacity: 8 Ton (Optionally 16 Ton).
- Chains are fitted to the axle before brake testing the axle - and removed again before moving the vehicle.
- Fully mounted on the installation subframes.
- No special requirements to the design or construction of the inspection pit.

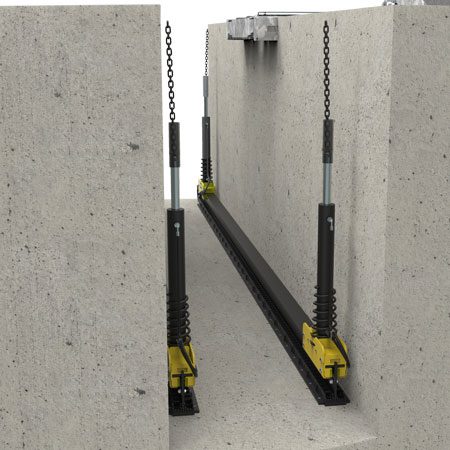

See also other BM load simulation systems: BM CLS – Type A, BM CLS – Type D and BM74000.
