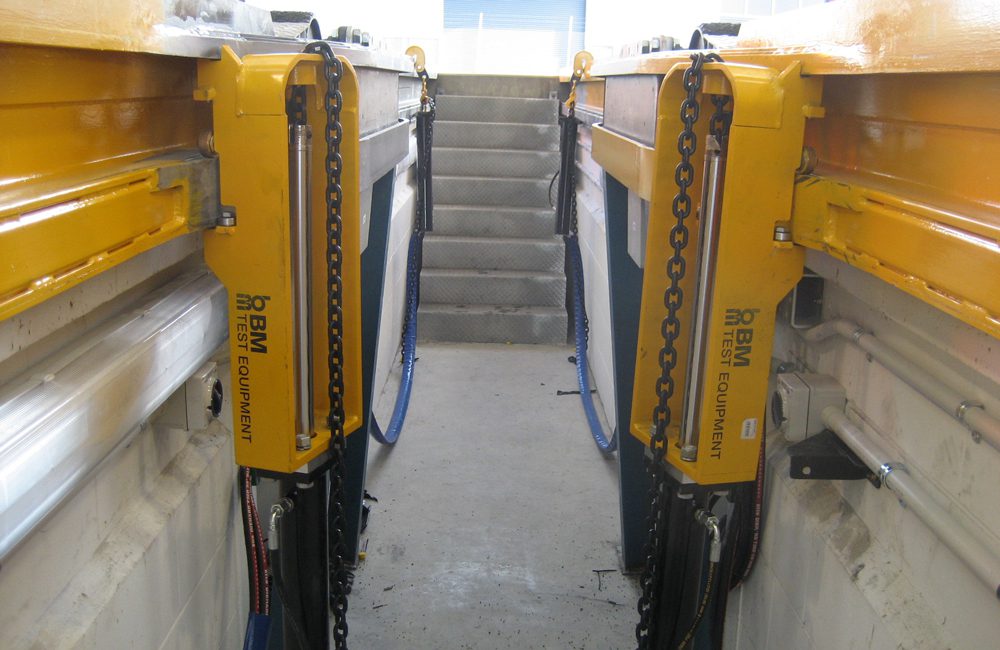

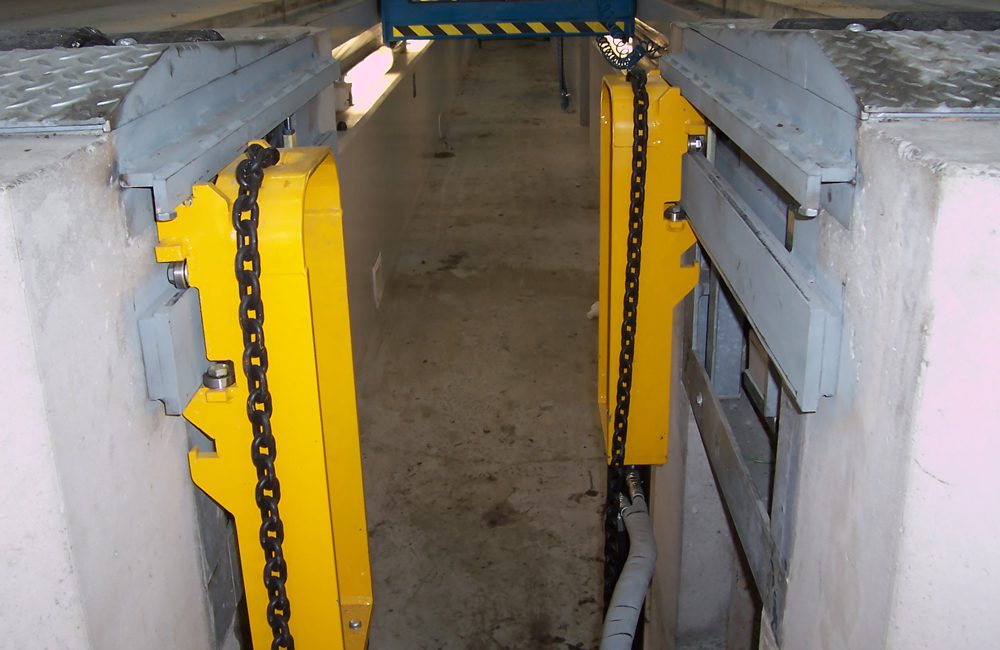

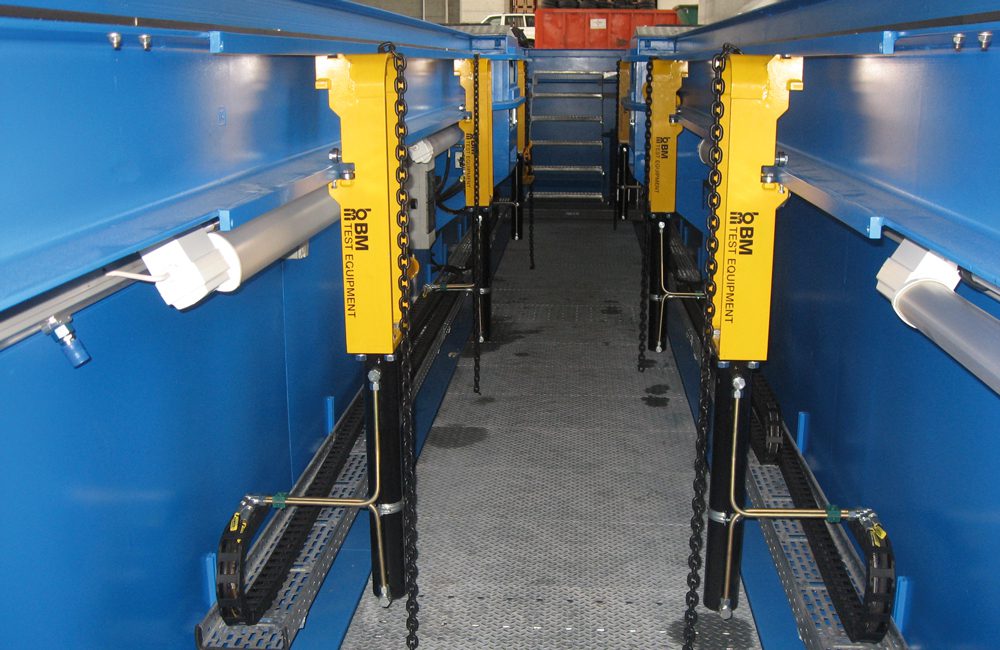

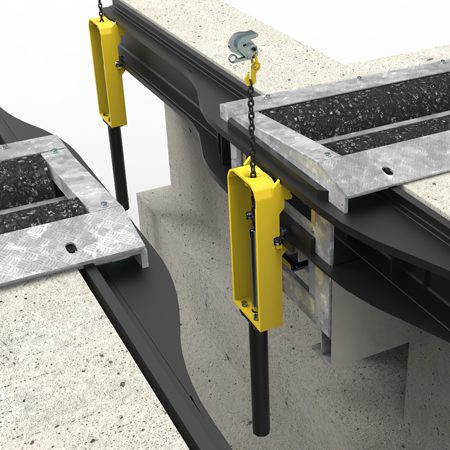

The load simulator cassettes remain attached at one point throughout the vehicle tester. The load simulator cassettes move forward with the vehicle during the test.
The operator can fully control the load application from his remote control unit from the vehicle cabin.
Will not reduce the functionality nor the operation area of the pit jack.

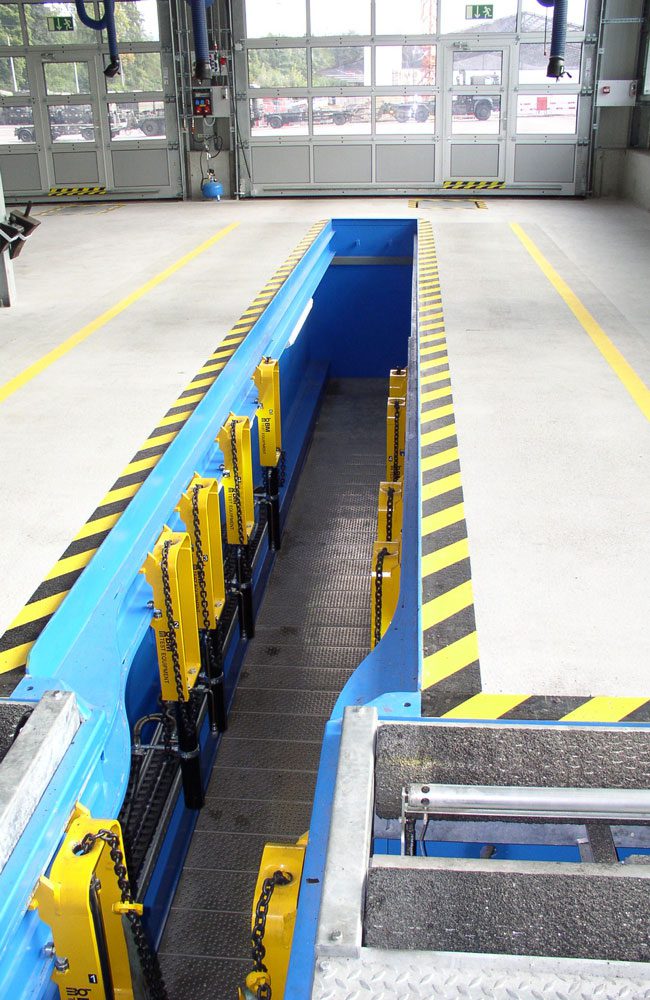

Can be fitted to practically any inspection pit regardless of the width of the inspection pit etc.
Principle of use
The requested load on the axle being tested is entered via the remote control and the computer controlled CLS system is activated.
The brake test of the axle is conducted.
The load application is released via the remote control.

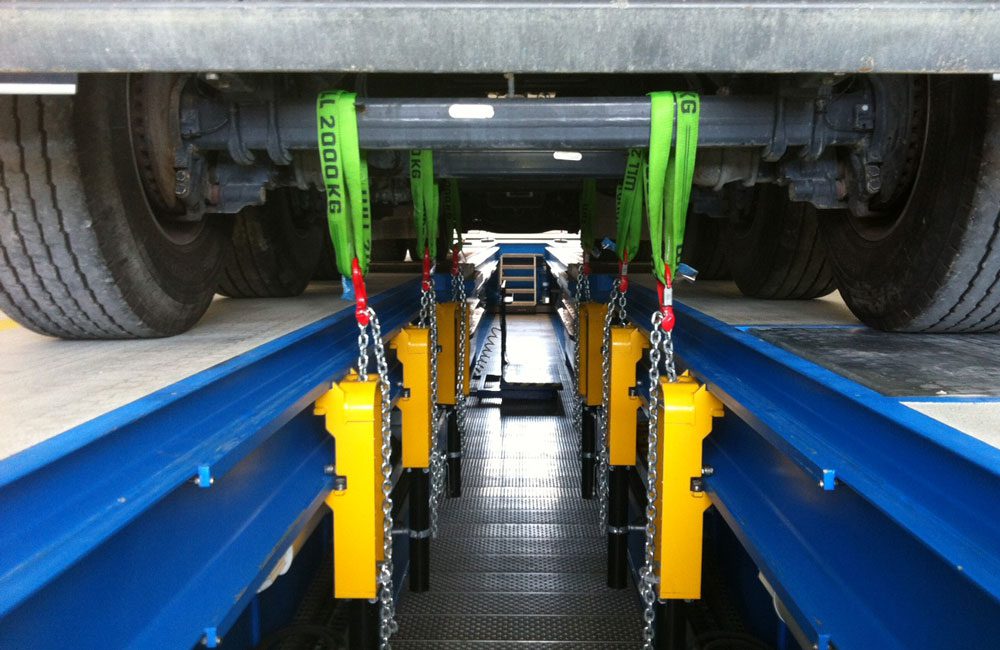

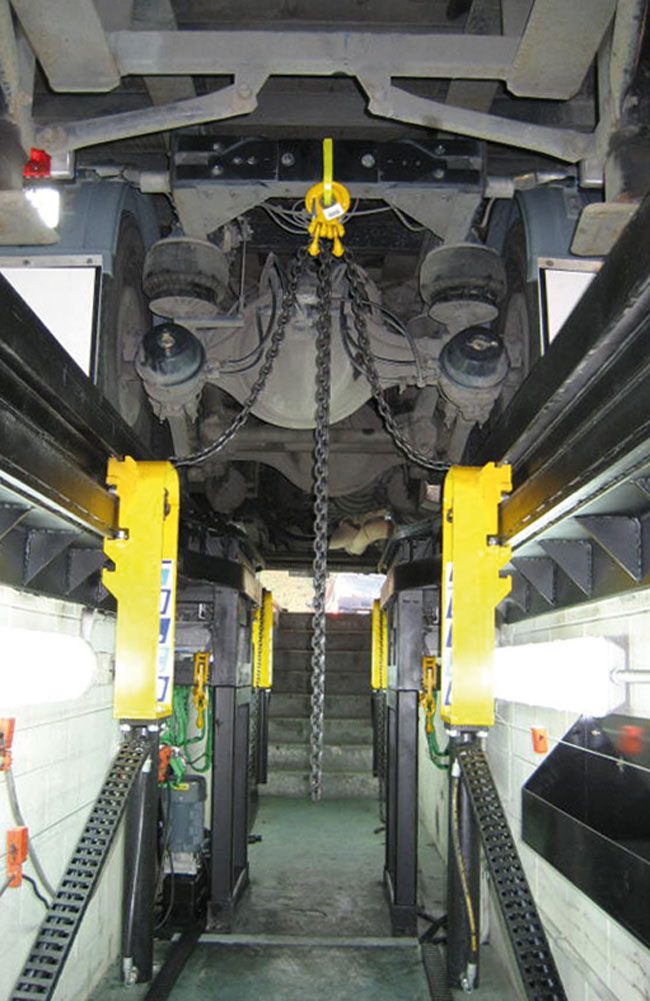

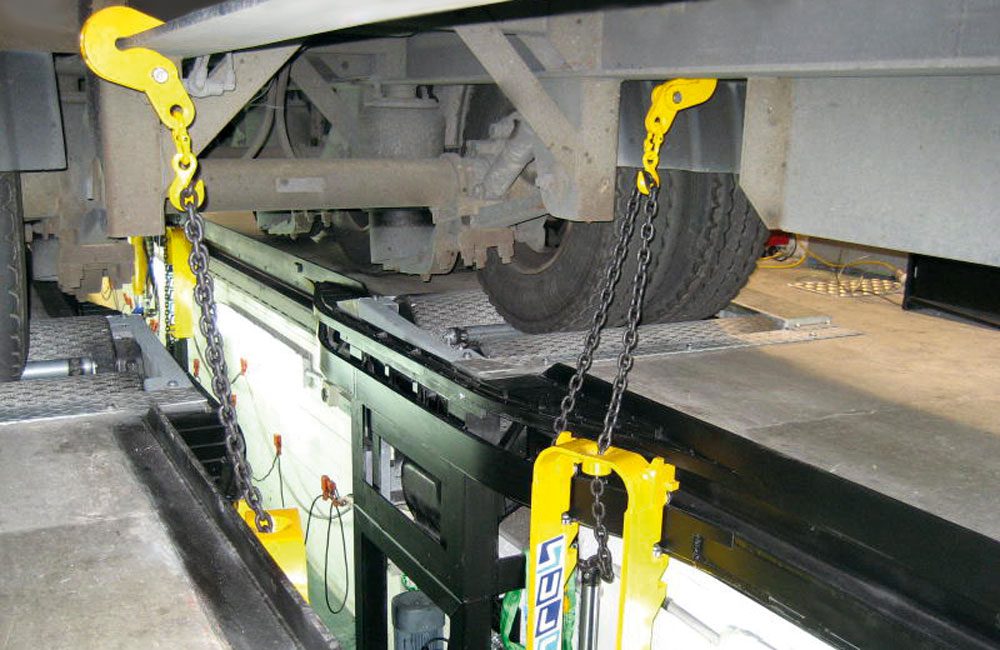

The vehicle is driven forward to the next axle. The CLS cassettes stay on the chassis while the vehicle is being moved as the claws make sure the chains remain fixed to the chassis and the cassettes are smoothly being pulled forward rolling on the rails.
The requested load on the next axle is entered vi the remote control, the load simulation is activated and the brake test is conducted.
All of this without the operator having to leave the cabin between test of axles.
