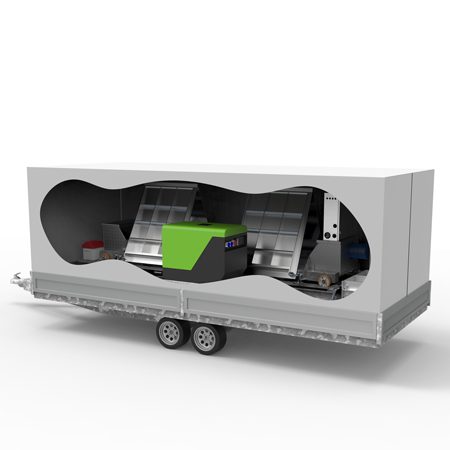

Mobile vehicle inspection lane in trailer - 3D illustration

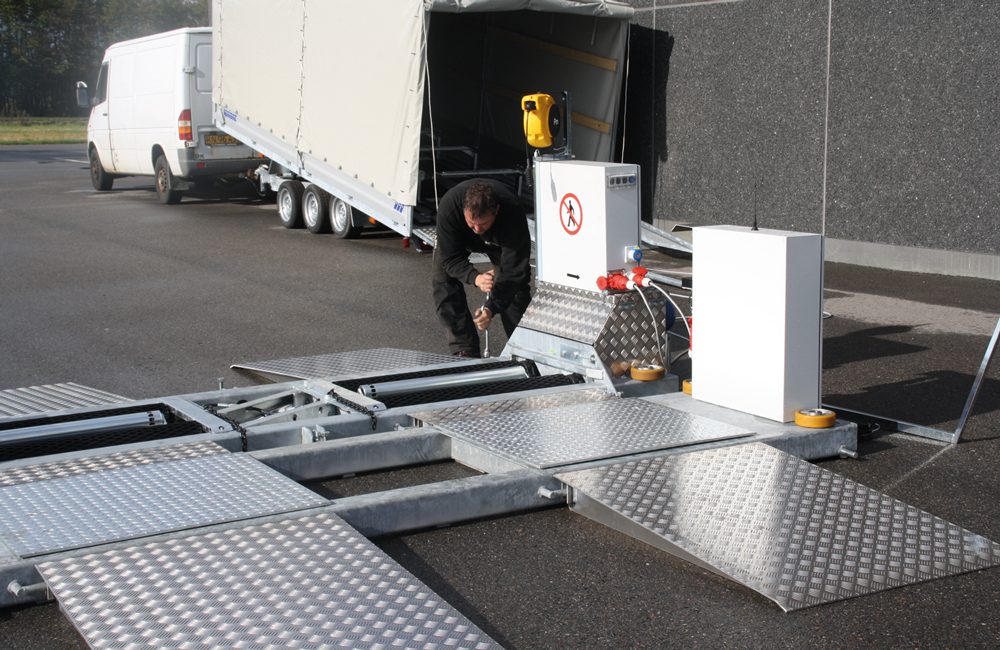

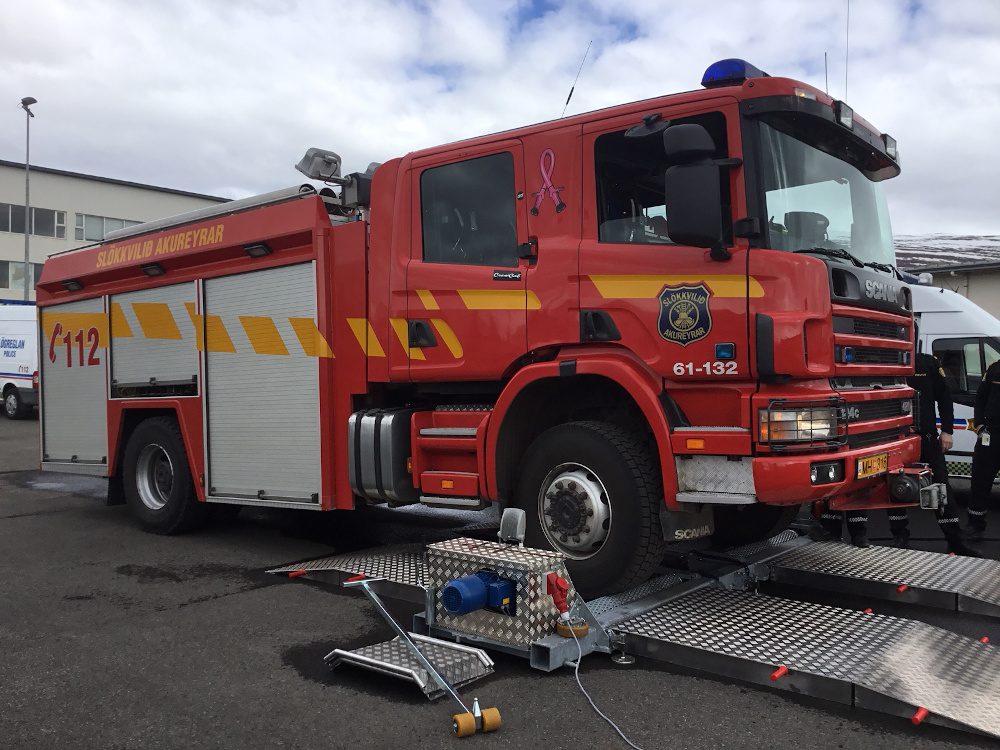

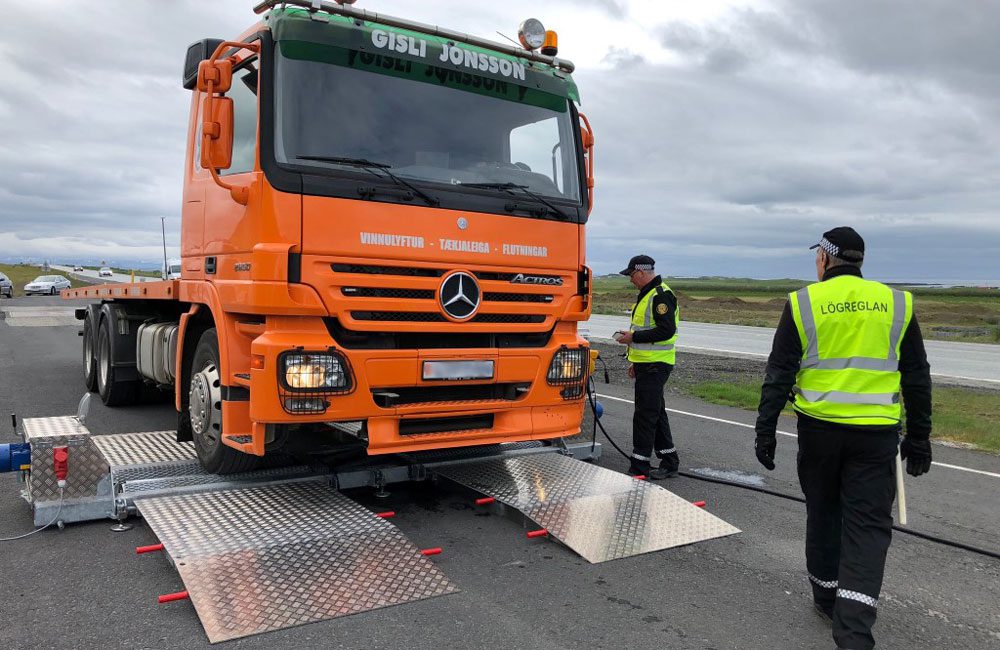

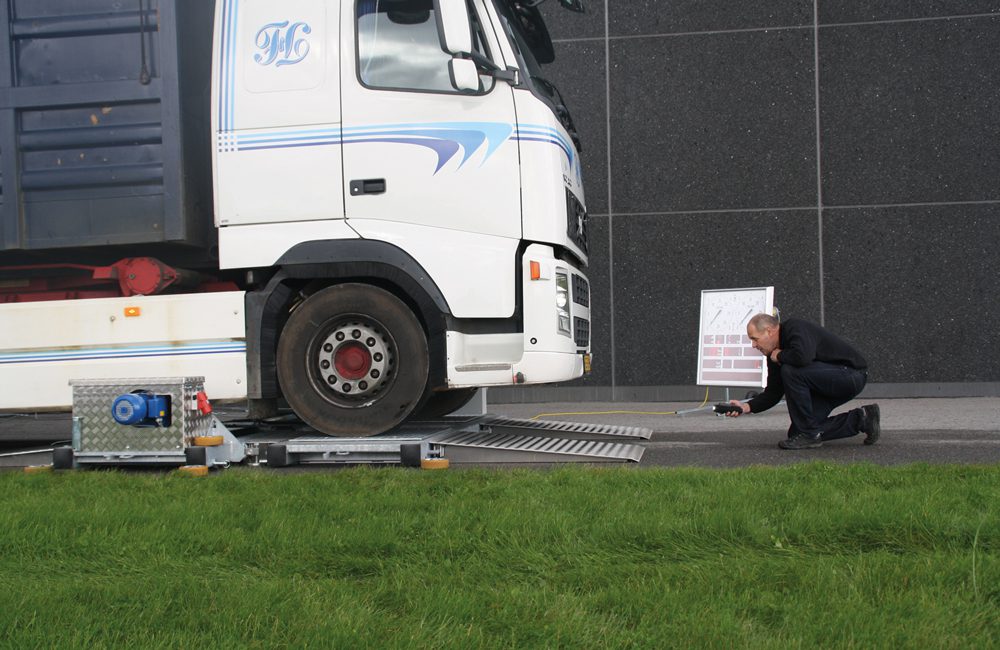

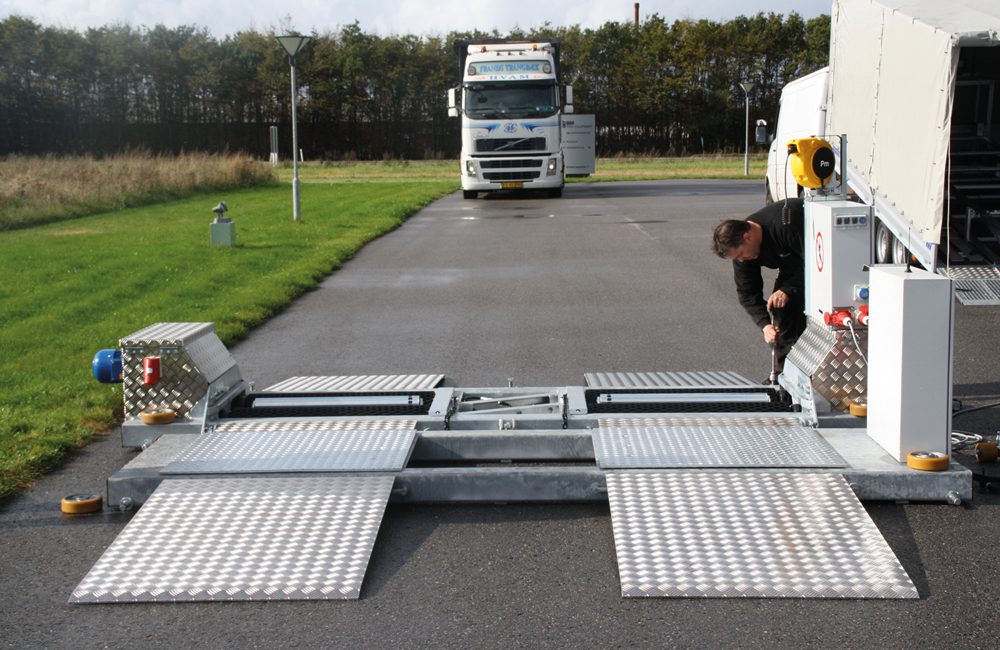

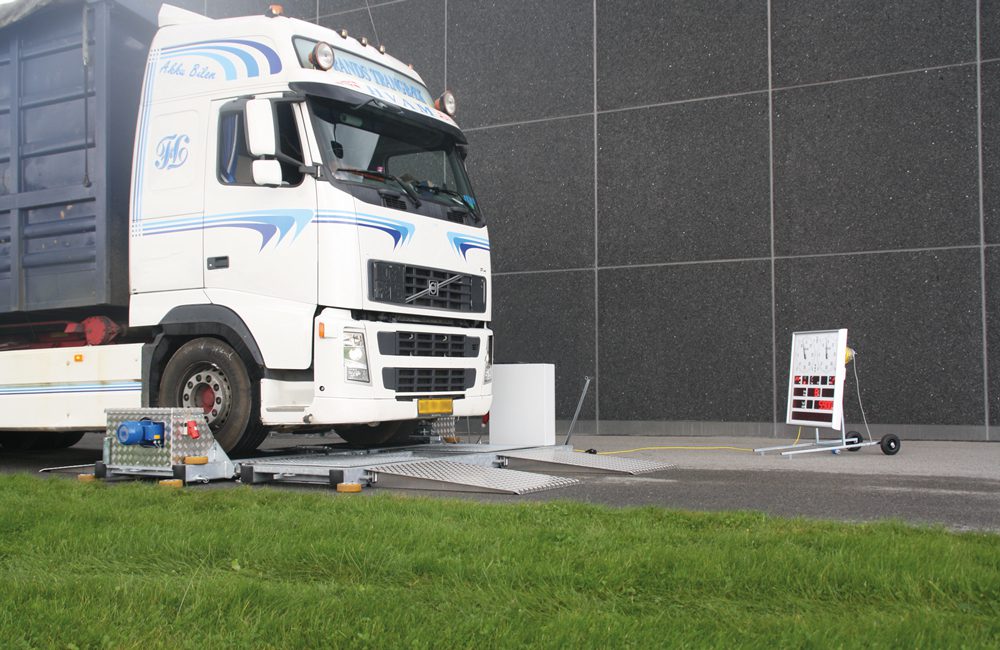

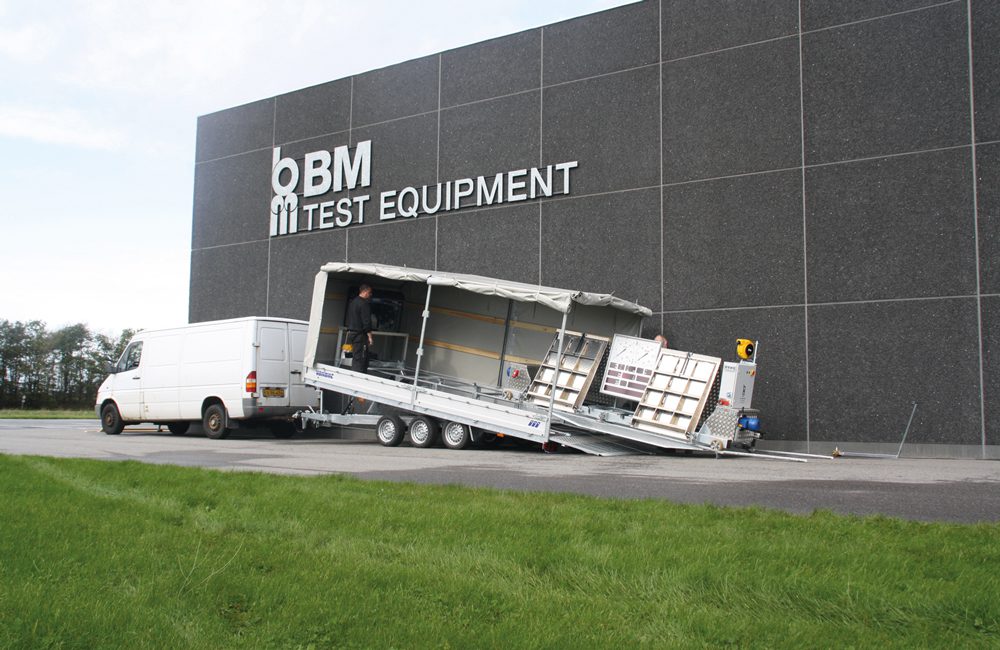

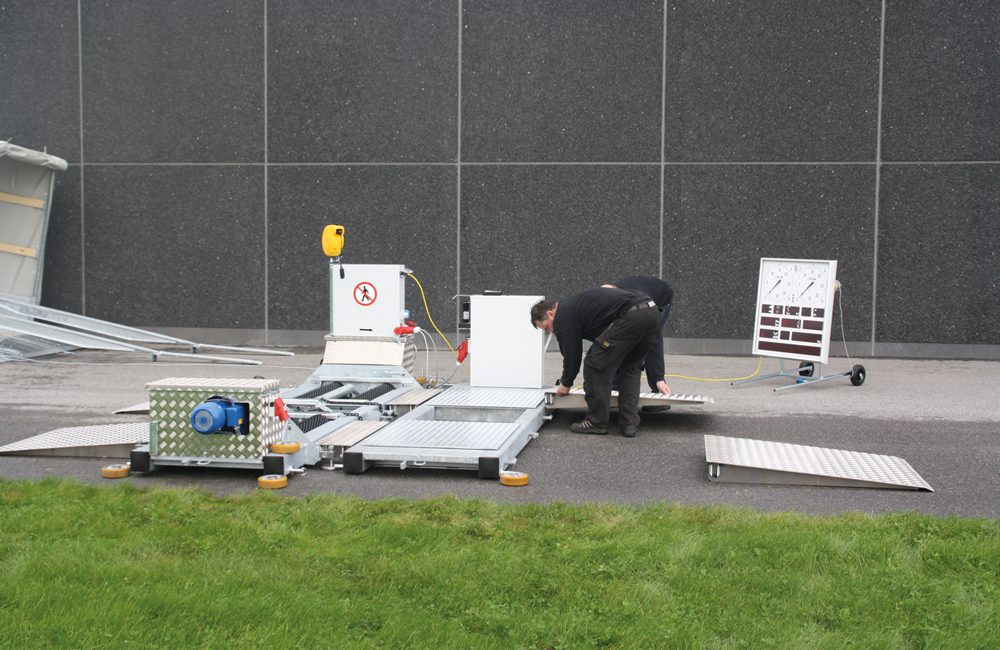

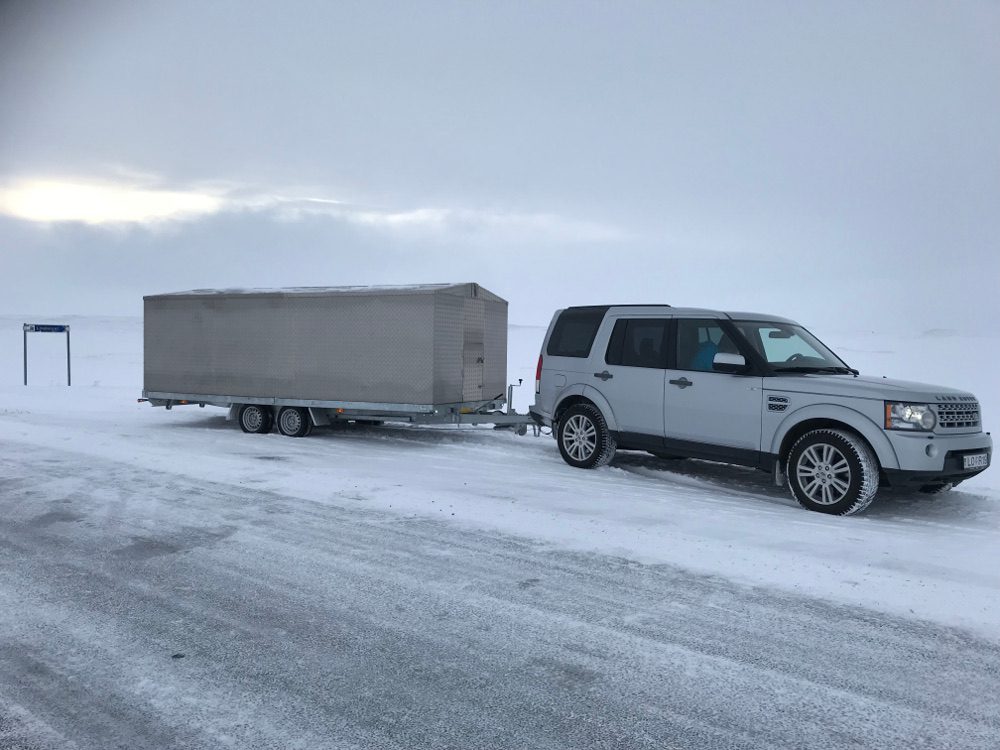

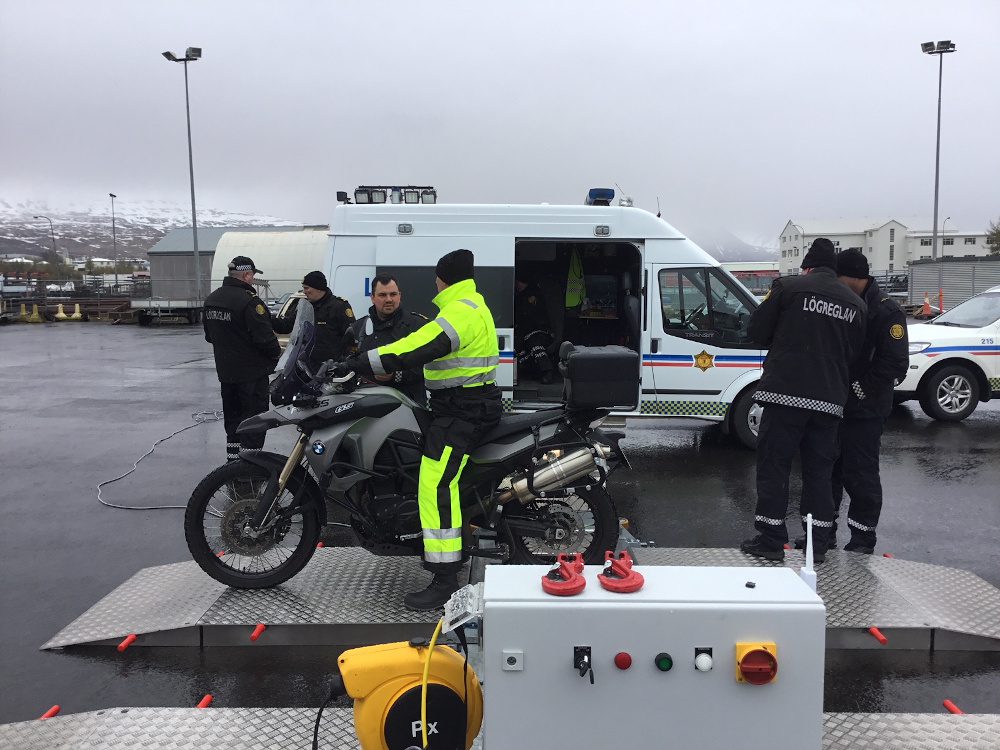

BM trailers with vehicle inspection lanesBM trailer with mobile vehicle inspection laneTowing vehicle arrives to site and trailer is openedTrailer is tilted and ramp is folded downSpecial unload rails are placed and equipment is rolled down using the integrated electrical winchThe BM53000 wheel play detector is rolled down using the electrical winchRails are then moved to the top of the transport rail system whereafter the BM20200 mobile brake tester is rolled down using the electrical winchBoth the BM20200 and BM52000 are supplied with small wheels so one person can easily place the equipment on the preferred location for vehicle testingThe drive on and off ramps are quickly fitted to the equipment without use of toolsThe equipment has strong feet with high resistant contact path. All feet can be adjusted in height to offset uneven ground.The equipment is connected to - and powered from - the onboard generator located inside the trailerFinal adjustments before vehicle is called forward. Approximate setup time for two persons is 5-10 minutes.First axle of the vehicle is being tested on the BM20200 mobile roller brake testerThe vehicle is driven forward so the first axle is on top of the BM53000 wheel play detector. The operator uses a remote control to move the hydraulically powered plates and detect for steering system problems such as wear etc.Hard top trailer with mobile roller brake testerHard top trailer with mobile test equipmentBM20200 roller brake tester inside hard top trailerHard top trailer with mobile test equipmentBM20200 mobile roller brake tester in hard top trailerHard top trailer with mobile test equipmentHard top trailer with mobile test equipment

BM Mobile Trailer solution

Complete vehicle inspection transportation system for testing of vehicles.

Compare

Categories: ,
Tags: , ,

Product description

The BM mobile trailer solution is a complete vehicle inspection system for brake testing, wheel play detection, emission testing and headlight testing of vehicles.

The BM trailer consists of one or more of the following equipment designing a customized solution:

All equipment will be controlled from one embedded electronics.

The solution features a large range of options, that allows for a customized configuration.

OPTIONS
  • Unique transport frame system, which can be mounted onto a standard trailer with tilt function.
  • Robust and long lasting:
    • All steel is of highest quality and hot galvanized.
    • Can be supplied in a minimum configuration and still allows for later upgrade to all options.

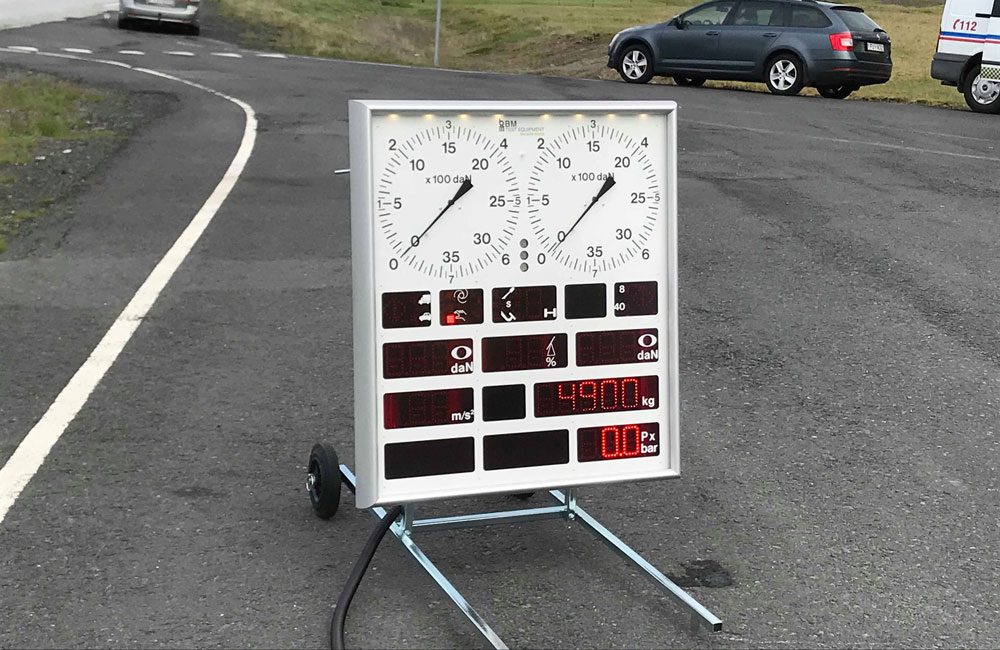

    • All equipment is controlled from the same electronics with results shown on the display.
  • Easy to use with BM software:
    • Integrated guide.
    • Advanced graphics printout.
    • Diagnostic printout with or without connection to PC/Notebook.
    • Calculation of test results according to the requirements of many national authorities.
    • BM FlexCheck software:
      • Advanced data collection, storing and presentation of test results.
      • Data capture from a complete inspection lane.
      • PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.

        BM FlexCheck on smartphone and tablet

  • Less than 30 minutes setup time.
  • Hardtop in aluminium or soft cover:

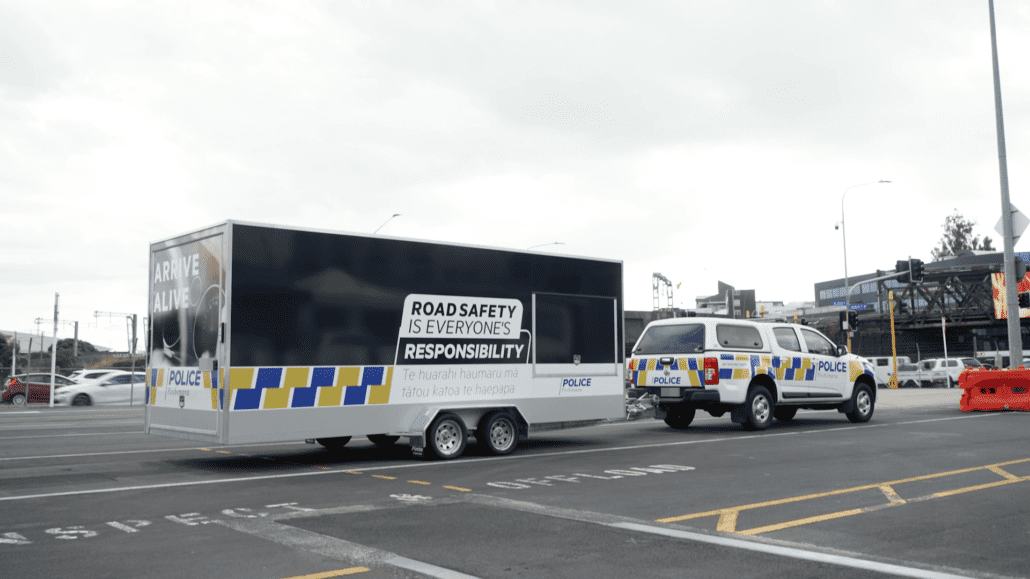

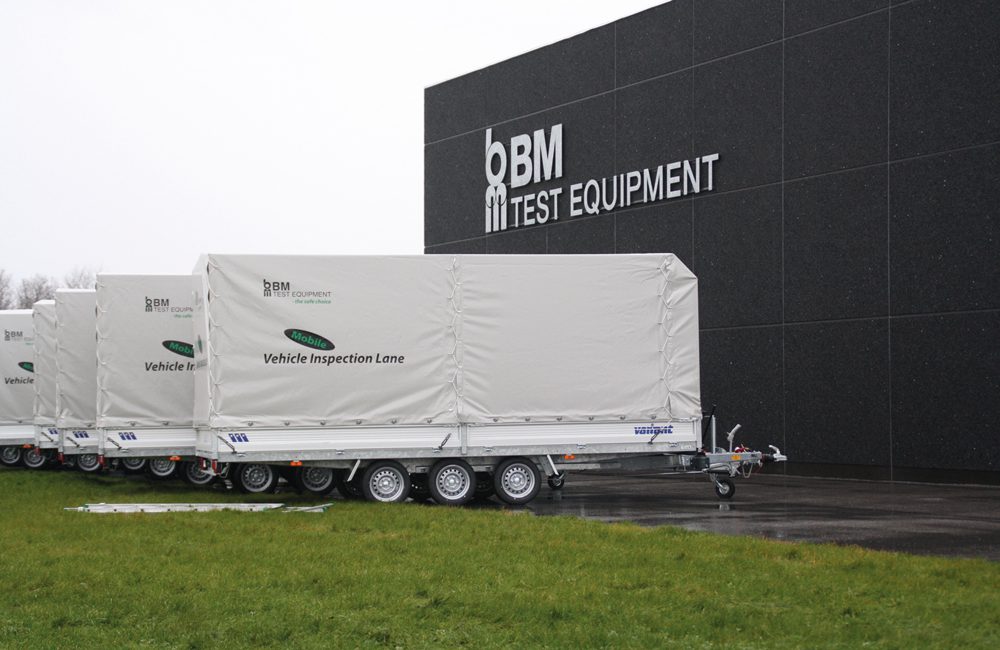

    BM trailers with vehicle inspection lanes

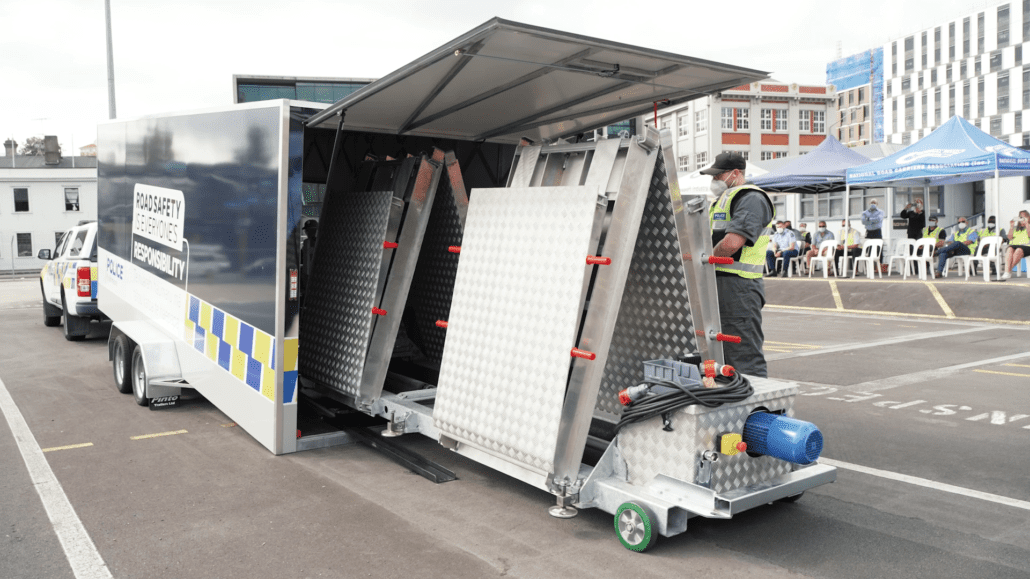

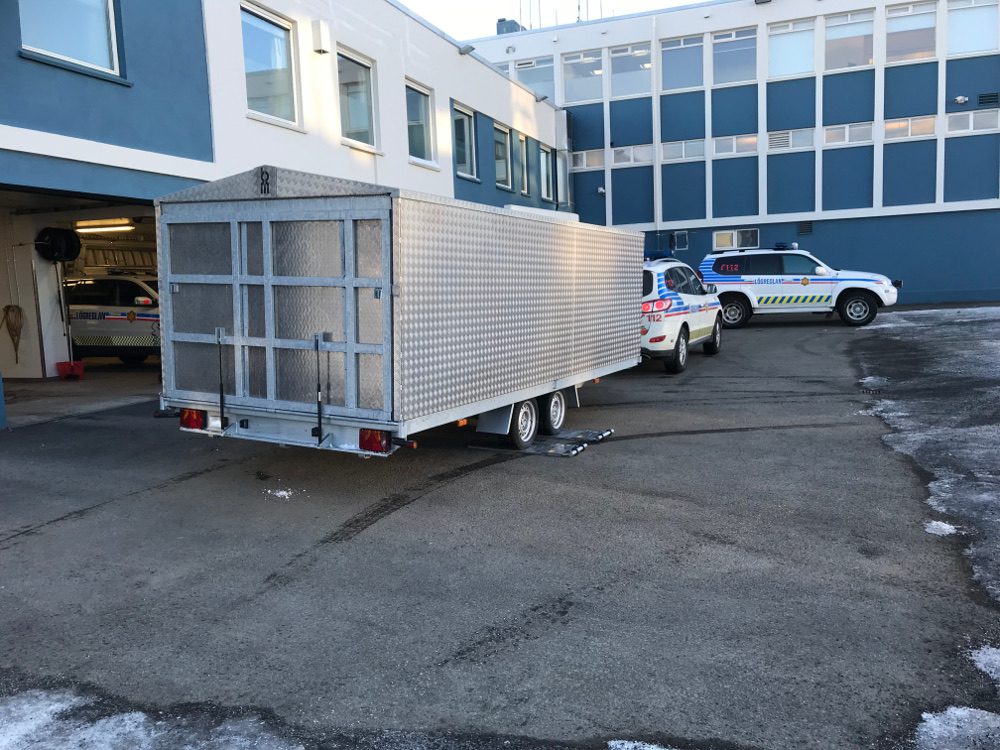

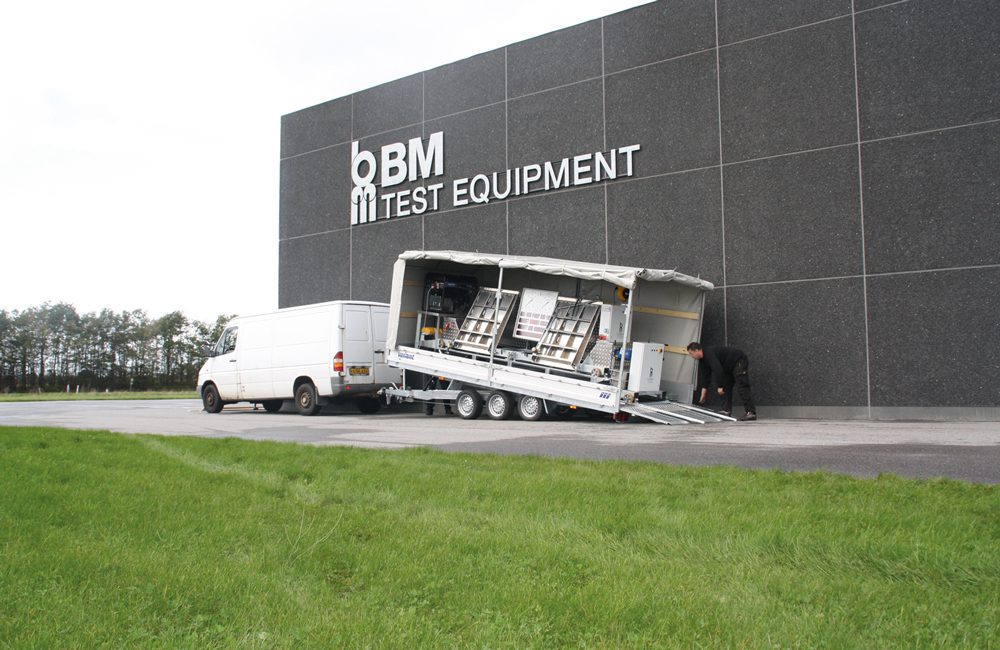

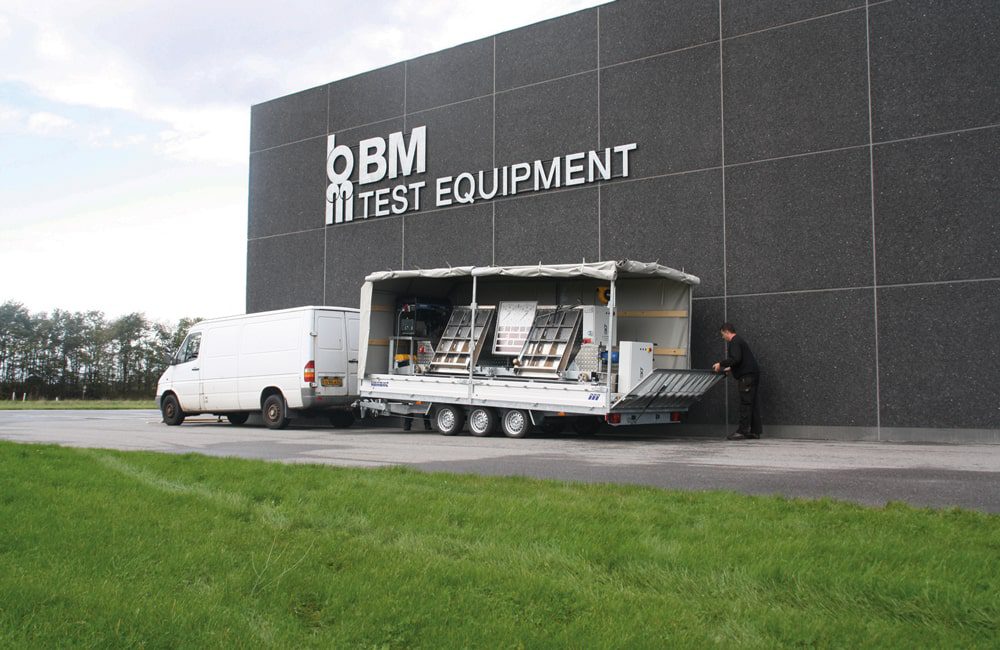

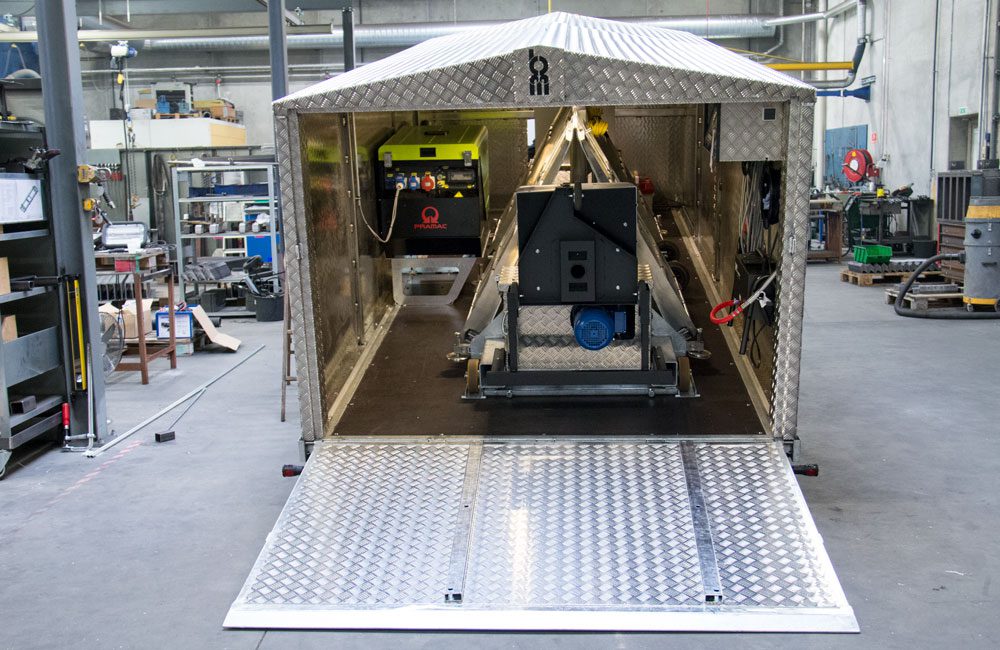

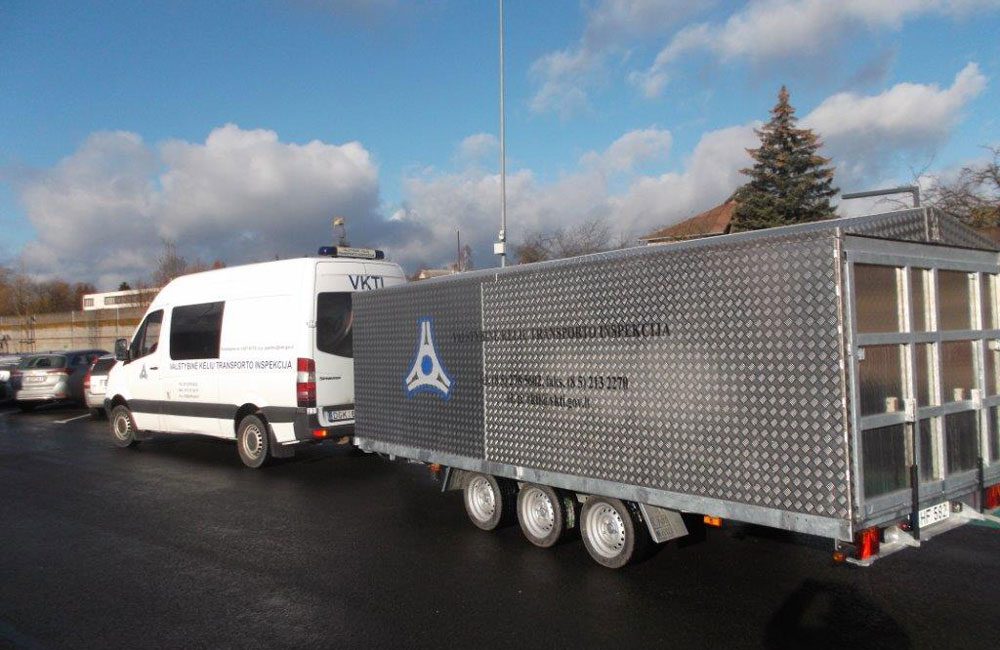

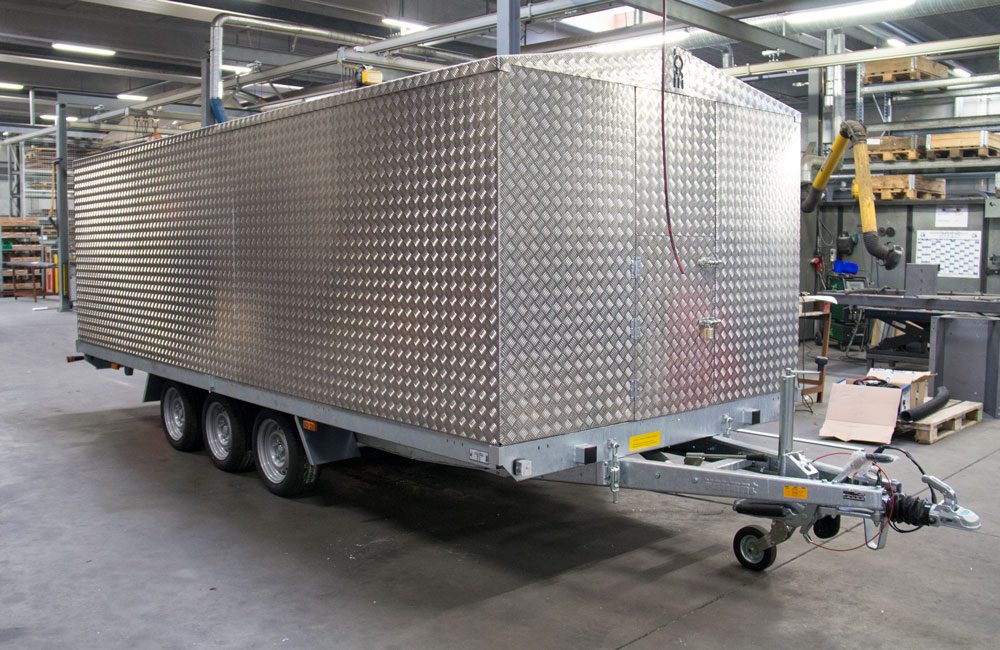

    Hard top trailer with mobile test equipment

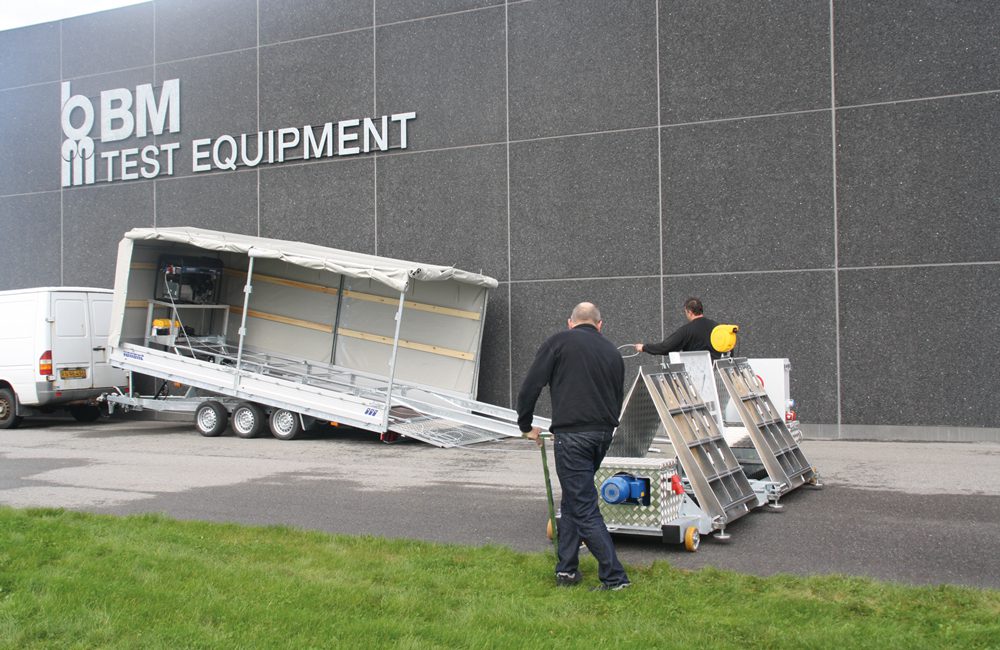

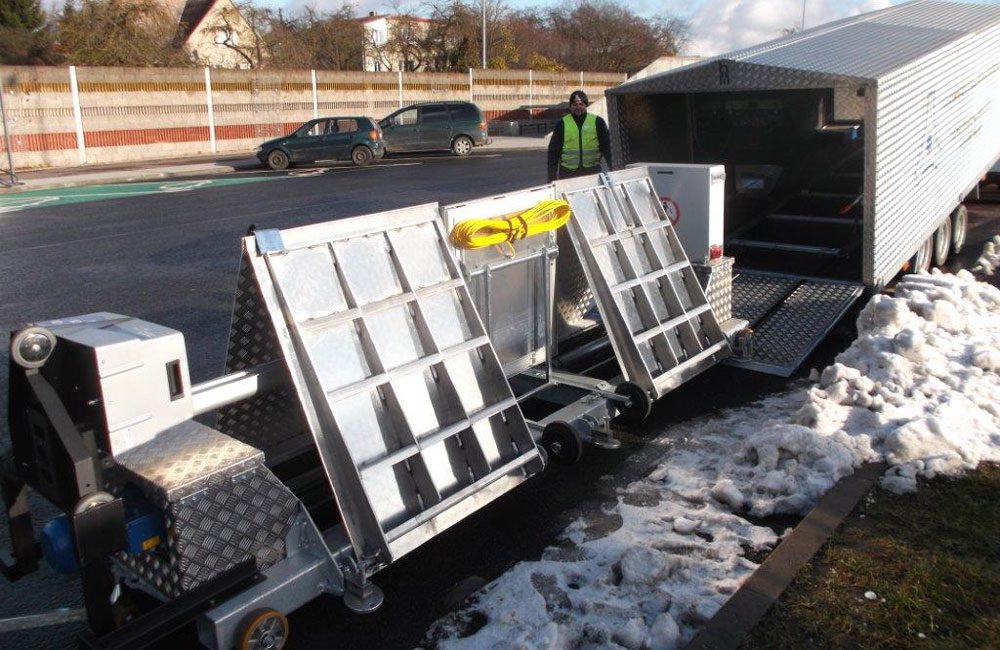

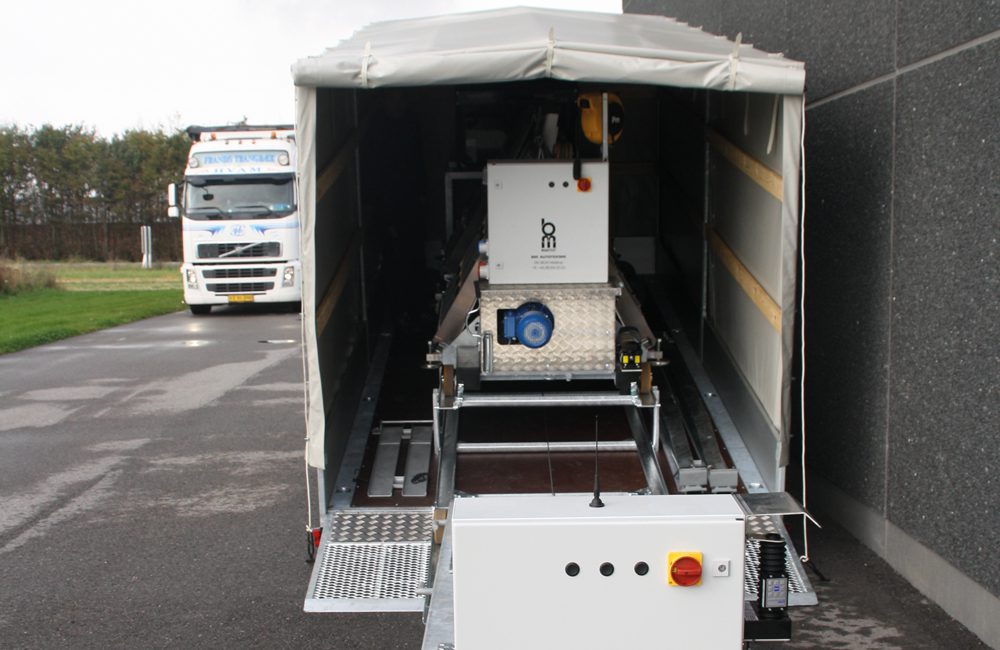

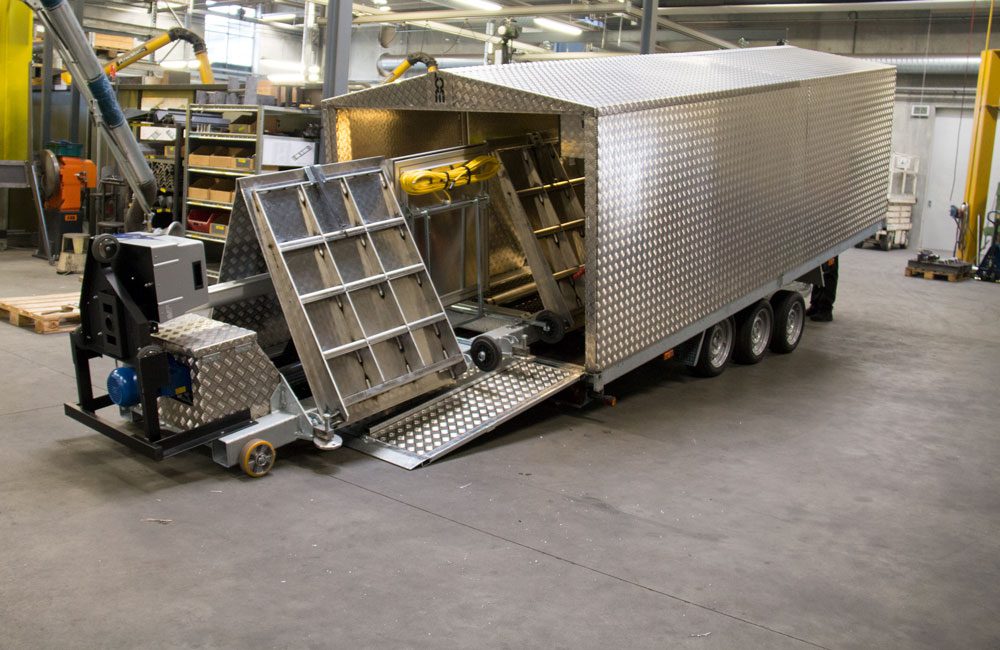

  • Special unload rails are used to roll the equipment out using the integrated electrical winch.
    • The winch is controlled via cable remote control.
  • Special lockable transport boxes for tools.

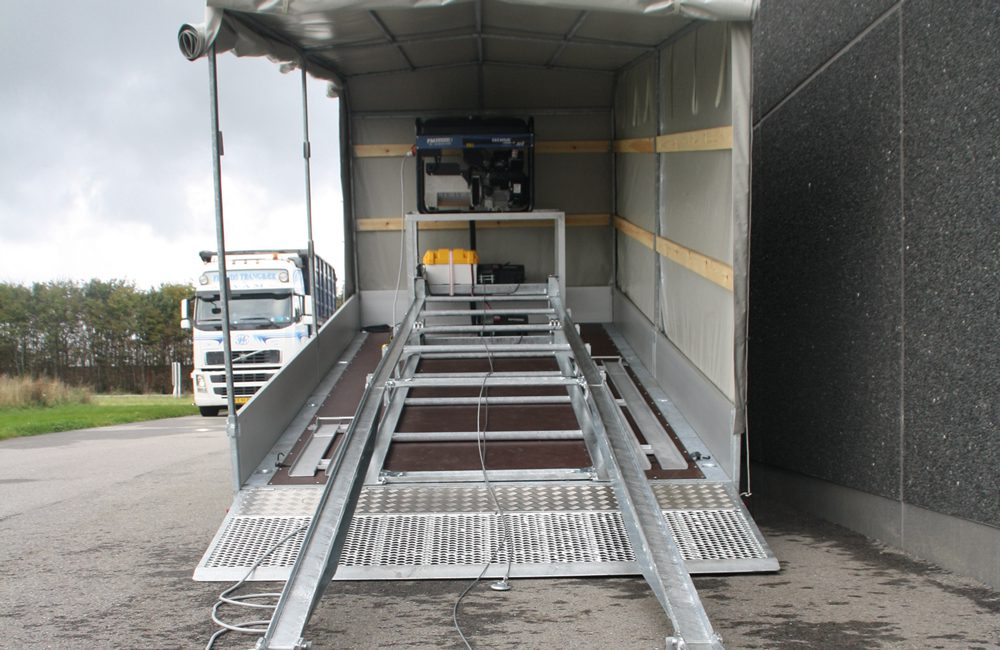

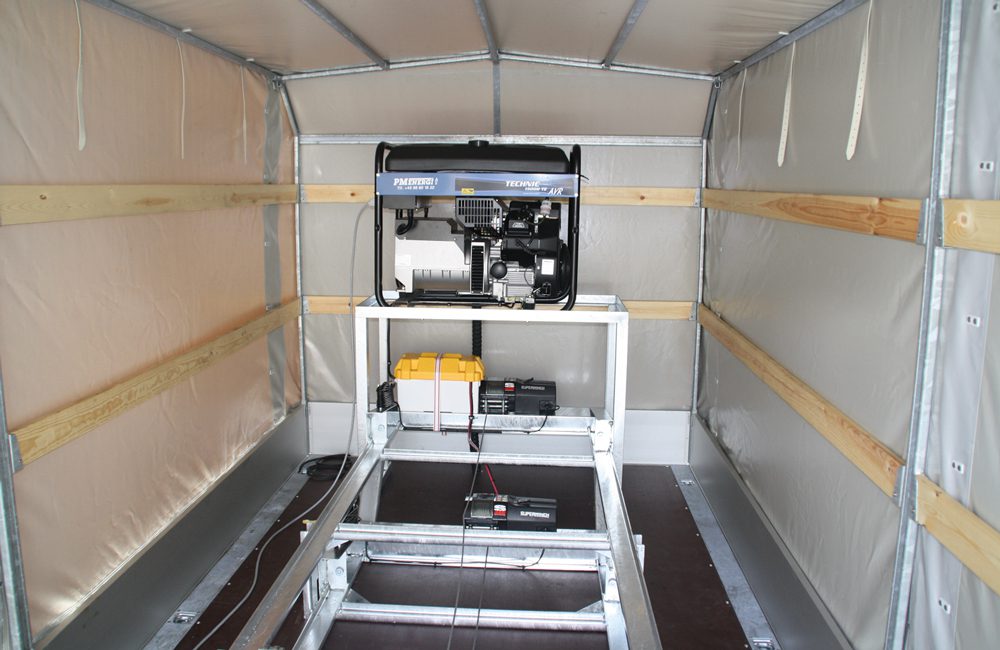

  • The equipment is connected to - and powered from - the onboard generator located inside the trailer.



READ MORE ABOUT THE EQUIPMENT

BM20200 roller brake tester

BM53000 wheel play detector

Emission testers

Headlight testers



See also other BM mobile vehicle inspection systems.

Technical data

Installation time

< 30 minutes

Advantages

  • IT system using latest app technology for smartphone and tablet (Windows and Android).
  • Test equipment can be placed directly on the workshop floor or on the ground without need of expensive civil works.
  • One person can handle loading and unloading of the equipment.

Videos

BM Trailer with Roller Brake Tester

BM Autoteknik A/S has developed a transport frame system for the mobile BM20200 roller brake tester. It takes less than five minutes for two persons to setup the roller brake tester – ready to go.

BM Trailer with Roller Brake Tester and Wheel Play Detector

BM has developed a new transport frame system, which can be mounted on a standard flatbed trailer with tilt feature. The system meets potential demands for accomodating a generator and a BM53000 wheel play detector on the trailer – the latter being placed on rails just beneath the BM20200 brake tester.
