BM1010 Roller Brake Tester

Product description

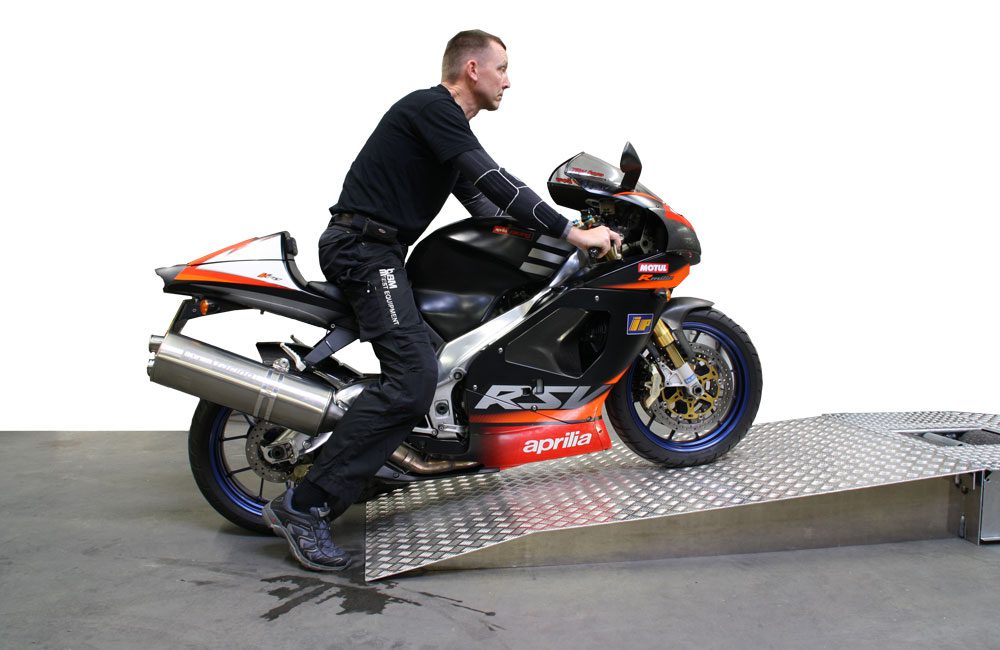

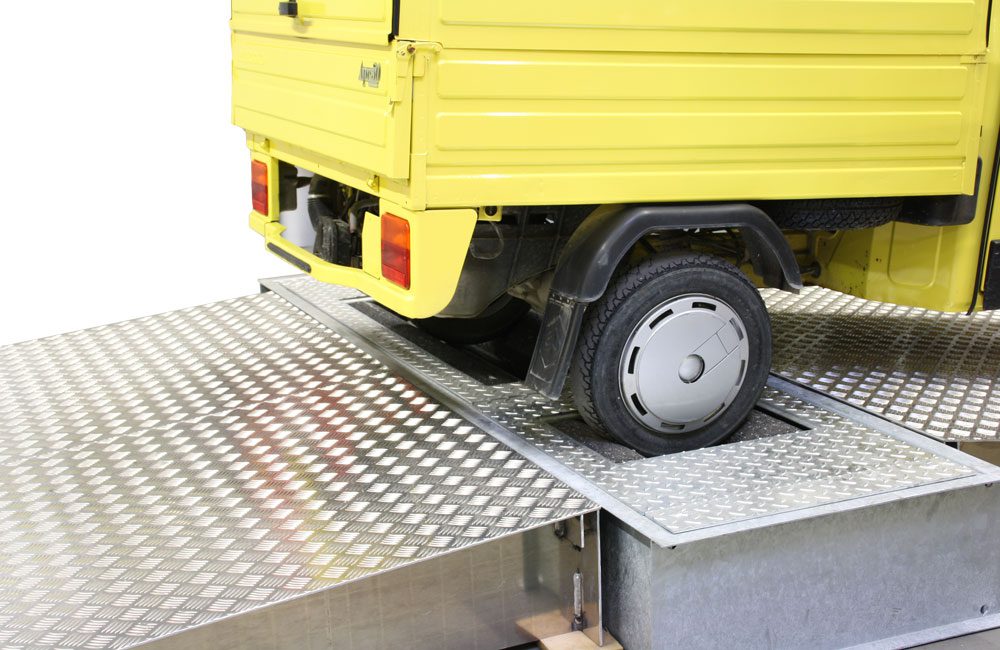

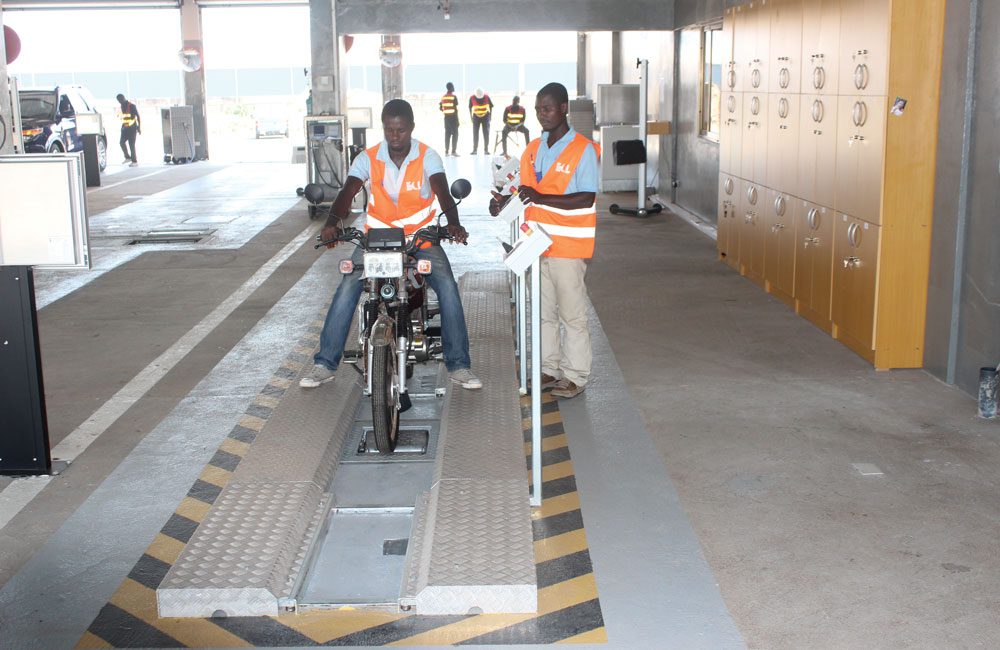

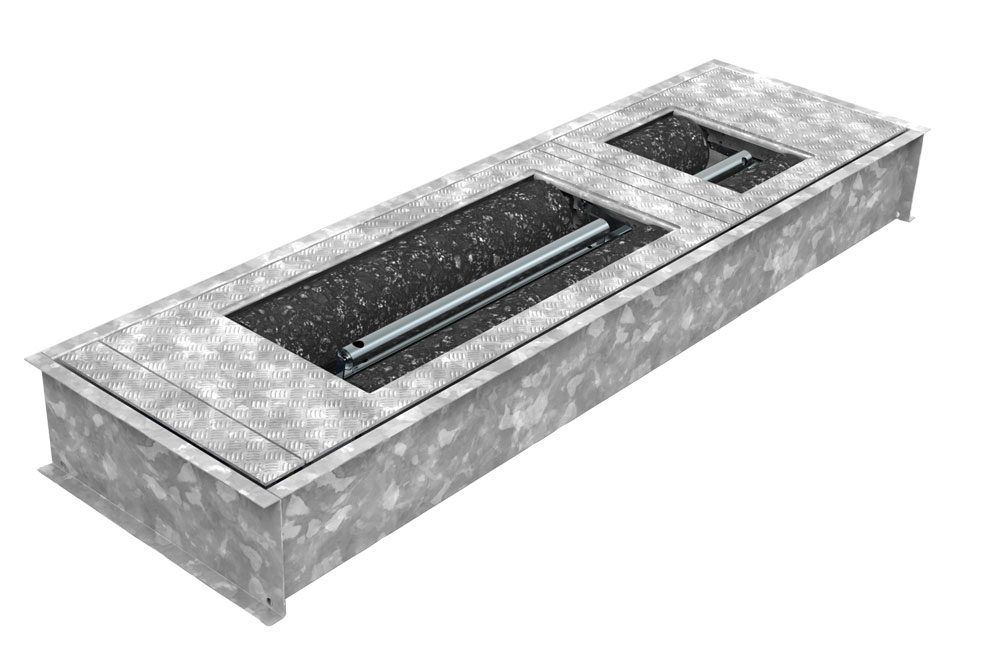

BM1010 roller brake tester is a brake tester series for motorcycle brake testing. It is used in test of most 2-, 3-, and 4-wheeled motorcycles. The series is modularly designed and based on three types of hot galvanized roller beds with different roller lengths: 300, 600 and 1000 mm.

This brake tester features a large range of options that allows for a customized configuration

OPTIONS

Robust and long lasting:
- All steel is of highest quality and hot galvanized.

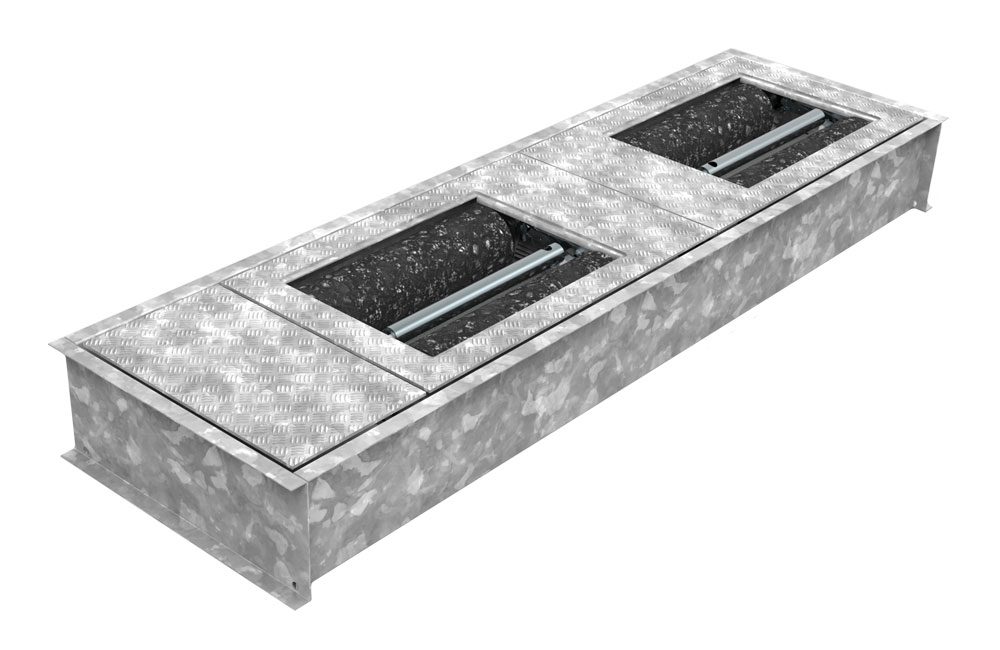

- Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
- The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.

  Steel mesh plus a flintstone/bauxite surface for test of all tires except spike tires.

  Steel mesh for test of all tires including spike tires.
- Prepared for connection to self-/motor drive tachotest for test of speedometer.
Easy to use with BM software:
- Integrated guide.
- Advanced graphics printout.
- Diagnostic printout with or without connection to PC/Notebook.
- Calculation of test results according to the requirements of many national authorities.
- BM FlexCheck software:

  Advanced data collection, storing and presentation of test results.

  Data capture from a complete inspection lane.

  PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.
  BM FlexCheck on smartphone and tablet
Infrared remote control with an operating distance of 15-25 metres.
Cable remote control with a maximum operating distance of 30 metres.

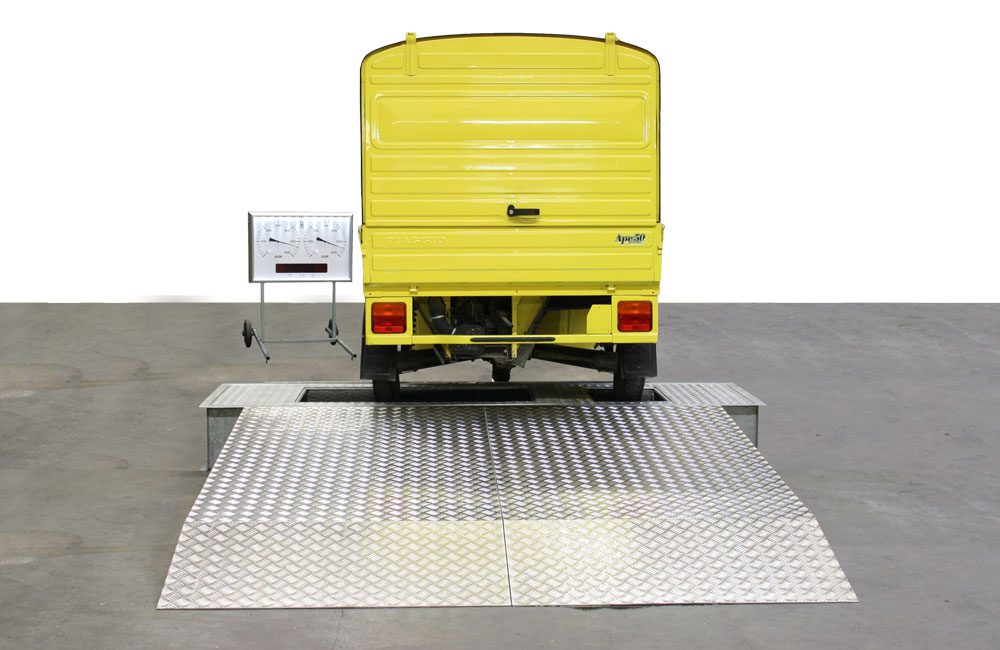

Large and easy-to-read aluminium display with analogue and digital readout of all relevant test data.
- One large analogue dial showing reading of left and right brake forces.
- 50 mm high bright digital readouts of brake efficiency and pedal force.
- Display units are available in daN, kgf or kN.
Pedal force measurement.
Automatic wheel weighing system.
Mobile trailer solution.

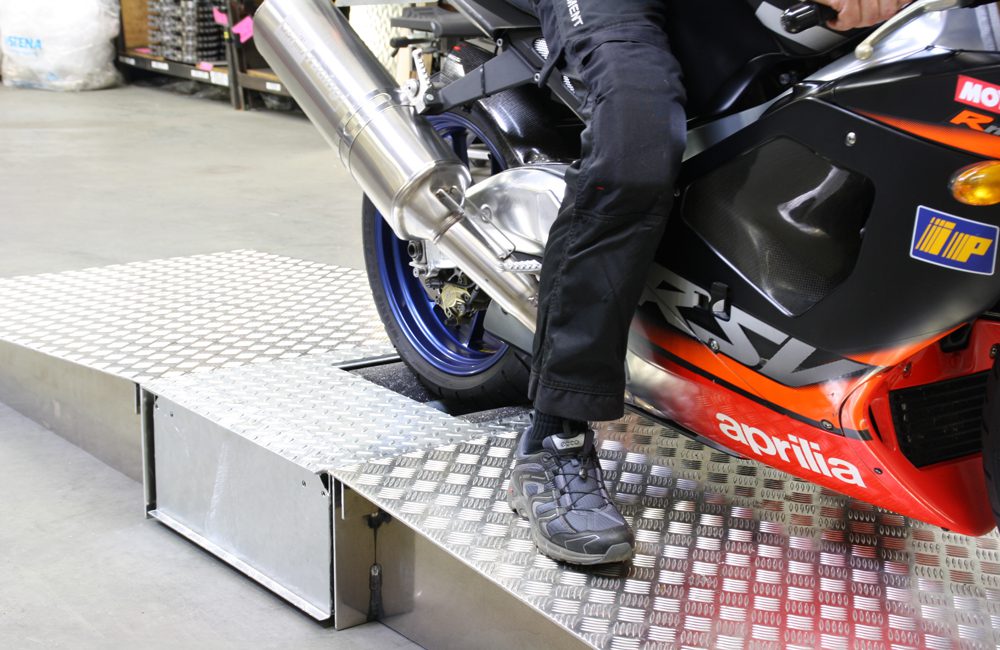

Unique wheel clamp system with dynamic wheel pressure force.
- The bigger the wheel, the higher clamp pressure.
3-phase and 1-phase power supply.

The BM1010 roller brake tester is approved by MOT in England.

Technical data

One unit rollerbed (LxWxH)	675 x 615 x 250 mm (300 mm rollers) 975 x 615 x 250 mm (300 and 600 mm rollers) 1375 x 615 x 250 mm (300 and 1000 mm rollers)
Roller diameter	182 mm
Roller length	300 mm 600 mm 1000 mm
Wheel span	290 to 1590 mm 530 to 1730 mm
Maximum wheel weight, test/drive over	500/750 kg (300 mm rollers) 1000/1250 kg (600 and 1000 mm rollers)
Friction coefficient of roller from factory dry/wet	Min. 0.8/0.7
Distance between roller centres	350 mm
Gear motor size	1.1 kW
Max. brake force measurement	400 daN
Test speed	1.0 km/h
Display (LxWxH)	735 x 500 x 140 mm
Display brake force scale	0 – 620 daN
Brake force measuring accuracy	0 – 100 daN: +/- 1 daN > 100 daN: +/- 1% FS
Weight measuring accuracy	0-100 kg: +/-2 kg >100 kg: +/-2% FS
Hand pedal force measurement accuracy	0 – 100 daN: +/- 1 daN
Power and fuses	3 x 400 Vac + N + PE, Min. 10 Amp 1 x 230 Vac + N + PE, Min. 50 Amp, Min. 25 Amp (MC) 3 x 230 Vac + PE, Min. 16 Amp, min. 10 Amp (MC)
BM200 TECHNICAL DATA	–
One unit roller bed (LxWxH)	965 x 575 x 250 mm
Roller diameter and length (ØxL)	175 x 300 mm
Maximum wheel weight, drive over/test	750 / 500 kg
Gear motor size	3.8 km/h
Maximum self-drive speed	160 km/h
Maximum motor-drive speed	160 km/h

Advantages

IT system using latest app technology for smartphone and tablet (Windows and Android).

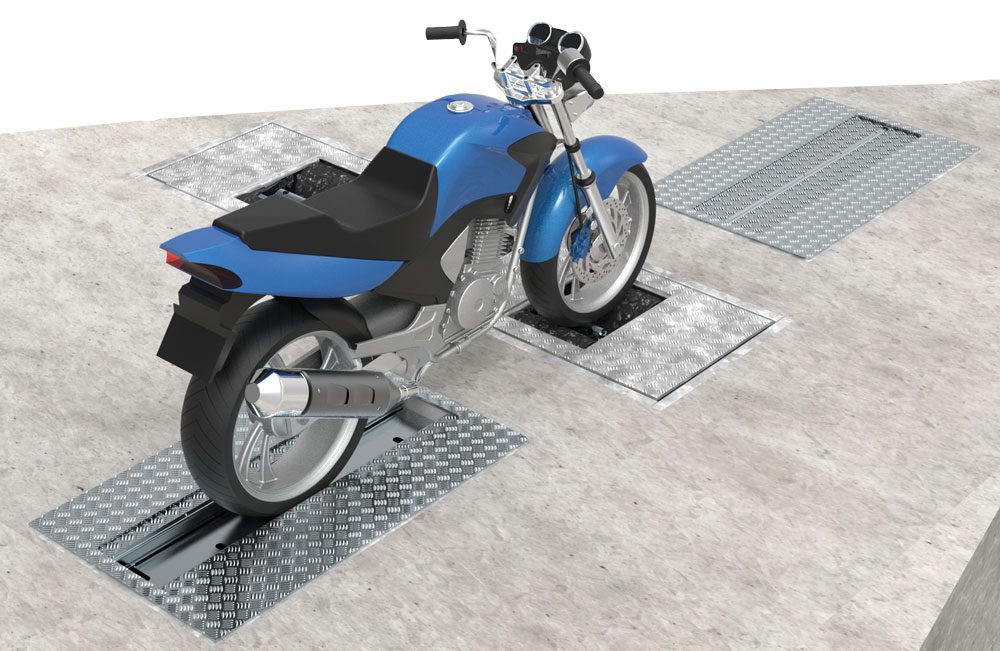

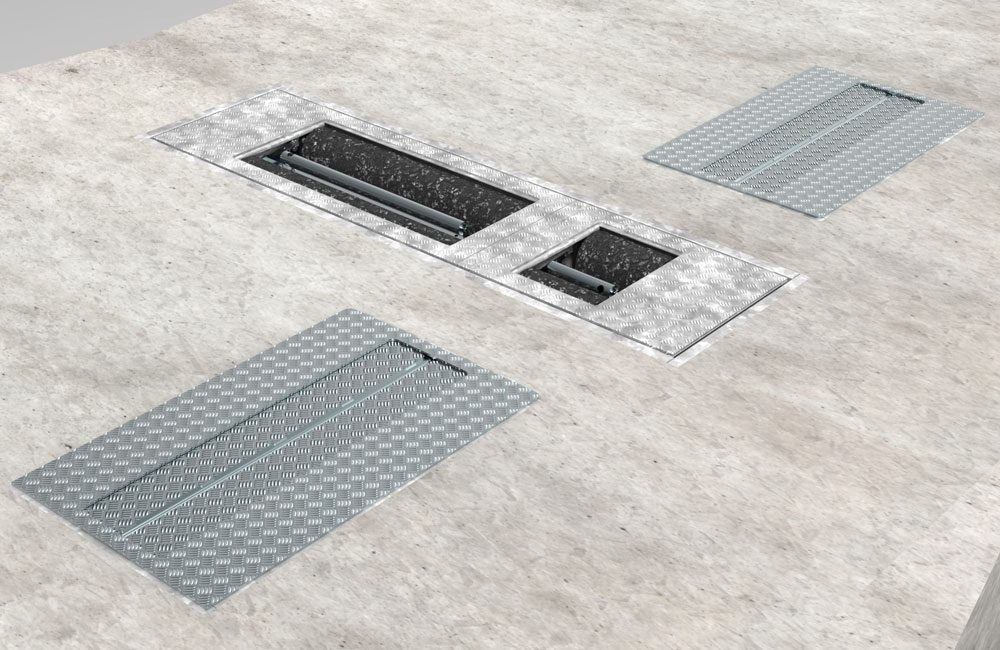

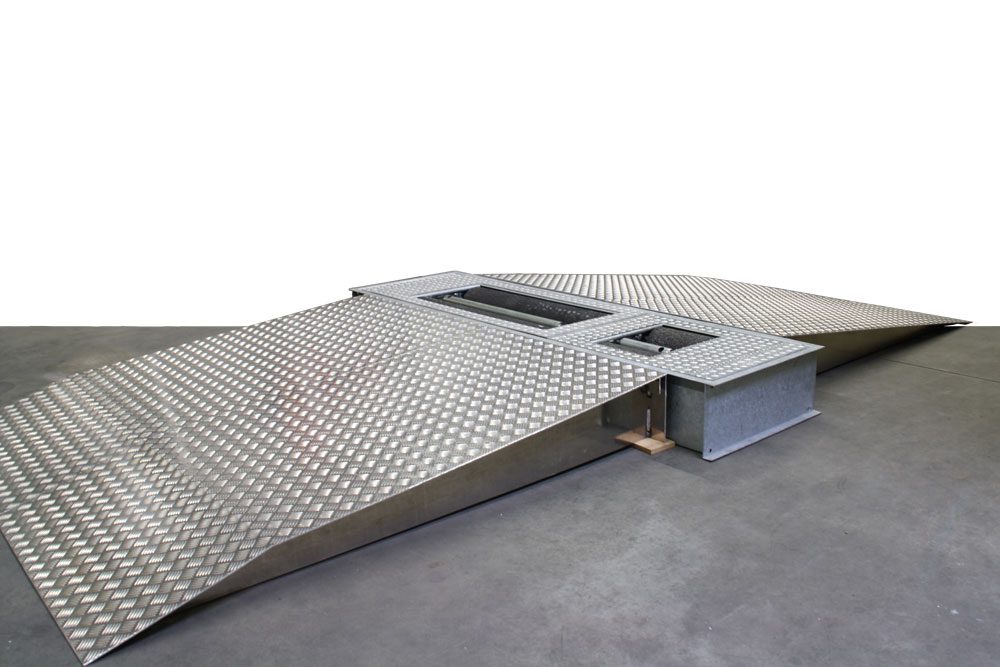

Only 250 mm deep and can therefore be installed in most workshops or even on-ground.

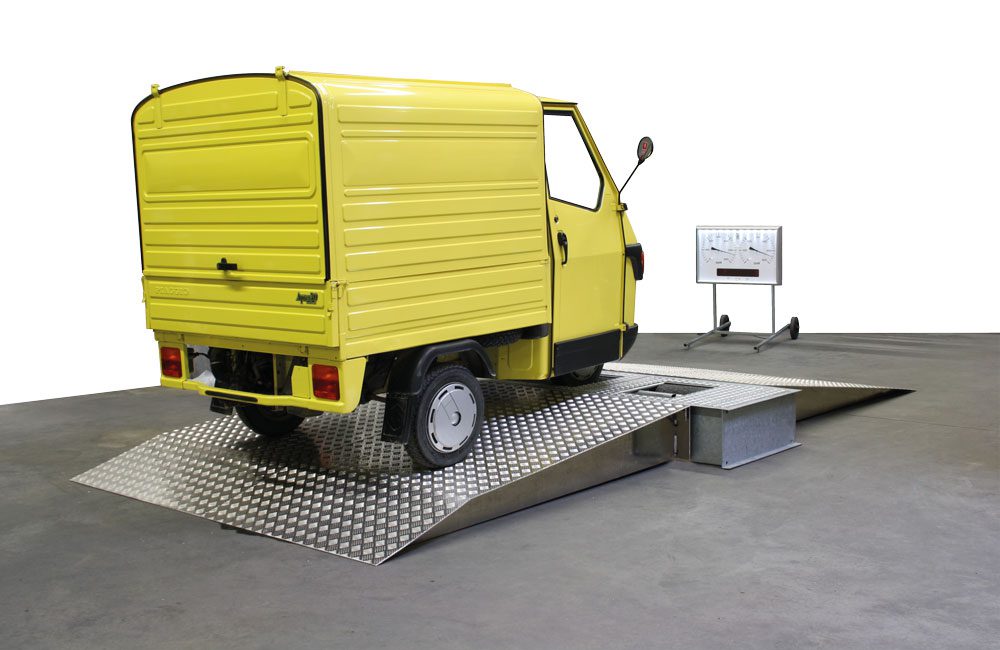

The display can be mounted either on the wall, saving floor space, or on floor column devices, that are designed so equipment is protected even when floor is cleaned with chemicals. It can also be mounted on a trolley making it easy to move around.

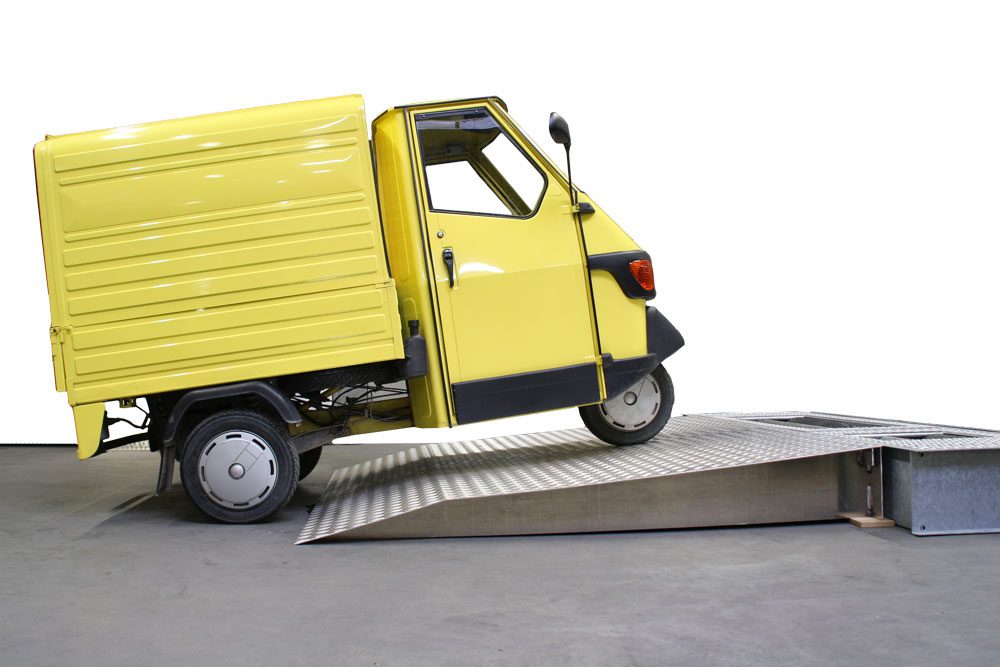

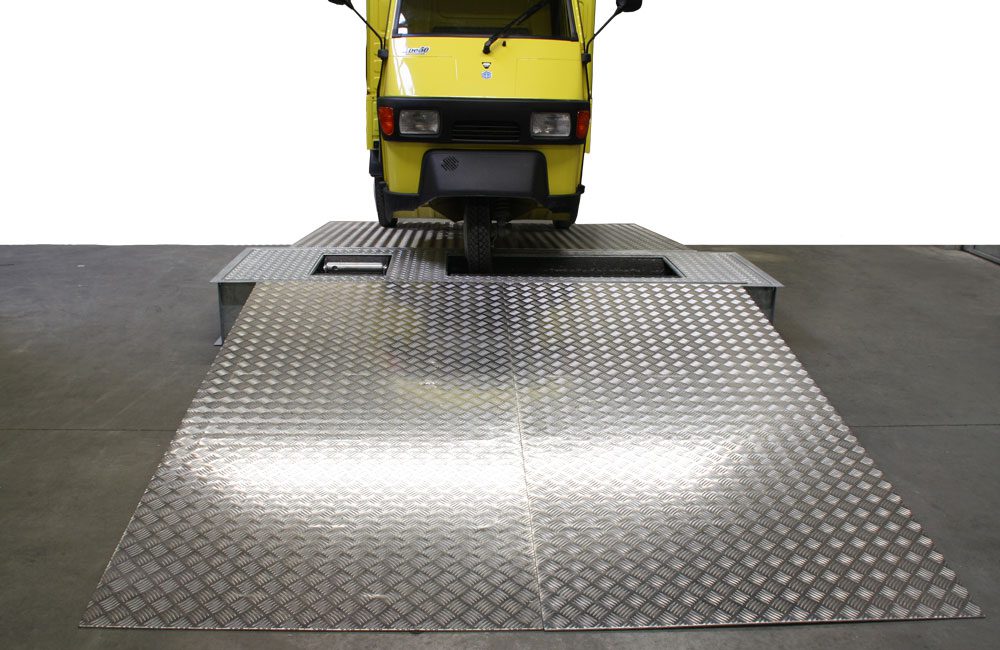

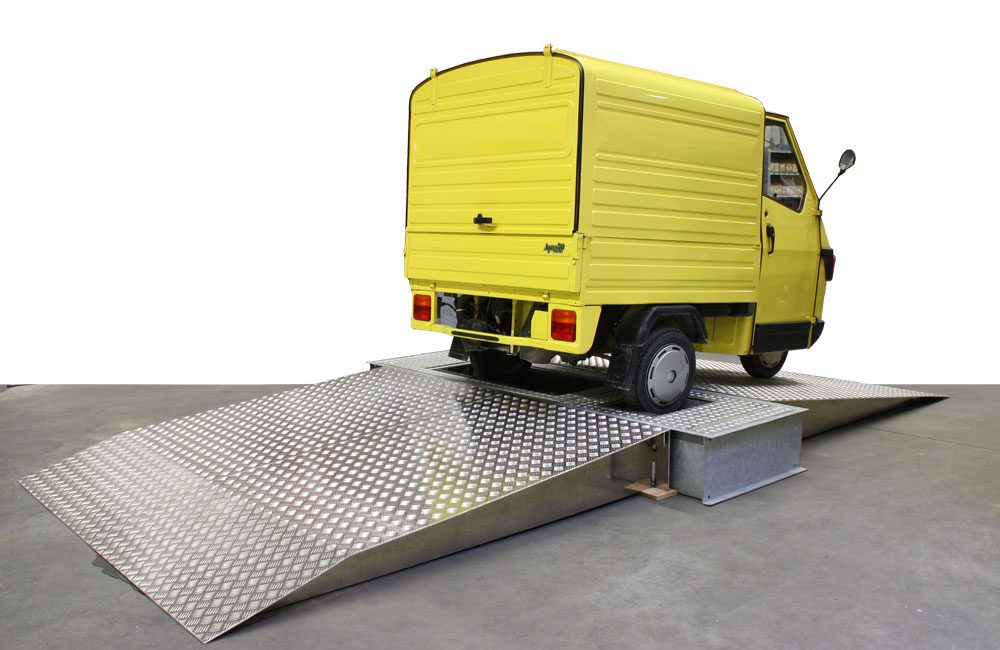

A highly versatile modular test system, it can accommodate 2 wheelers, 3 wheeler (side car and tricycle), and 4 wheeler (quad), with auto detect of vehicle type.
