Product description
The BM14200 roller brake tester has one of the strongest designs in the market and is built to withstand a high daily throughput of fully laden vehicles.
This brake tester features a large range of options that allows for a customized configuration.
OPTIONS
- All steel is of highest quality and hot galvanized.

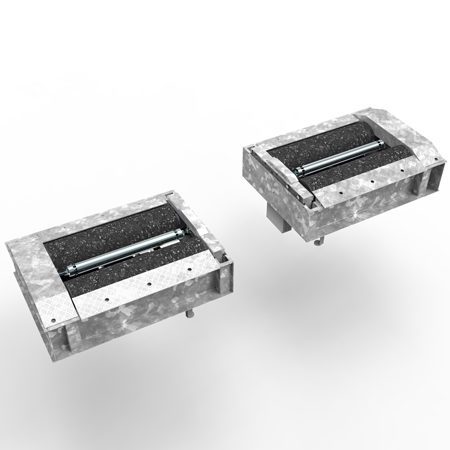

- Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
- The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.

Steel mesh for test of all tires including spike tires.

Steel mesh plus a flintstone/bauxite surface for test of all tires except spike tires.
- All gaps are minimized to protect staff.
- Cover plate design around the roller area all have angles to minimize potential tyre damage.
- Can be supplied in a minimum configuration and still allows for later upgrade to all options.
- Integrated guide.
- Advanced graphics printout.
- Diagnostic printout with or without connection to PC/Notebook.
- Calculation of test results according to the requirements of many national authorities.
- BM FlexCheck software:
- Advanced data collection, storing and presentation of test results.
- Data capture from a complete inspection lane.
- PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.

BM FlexCheck on smartphone and tablet
- Integrated guiding system.
- Large analogue dials showing readings of left and right brake forces.
- 65 mm high bright digital readouts of other measurement results.
- Modularly designed so that it can be customized to existing and future demands.
- Display units are available in daN, kgf or kN.

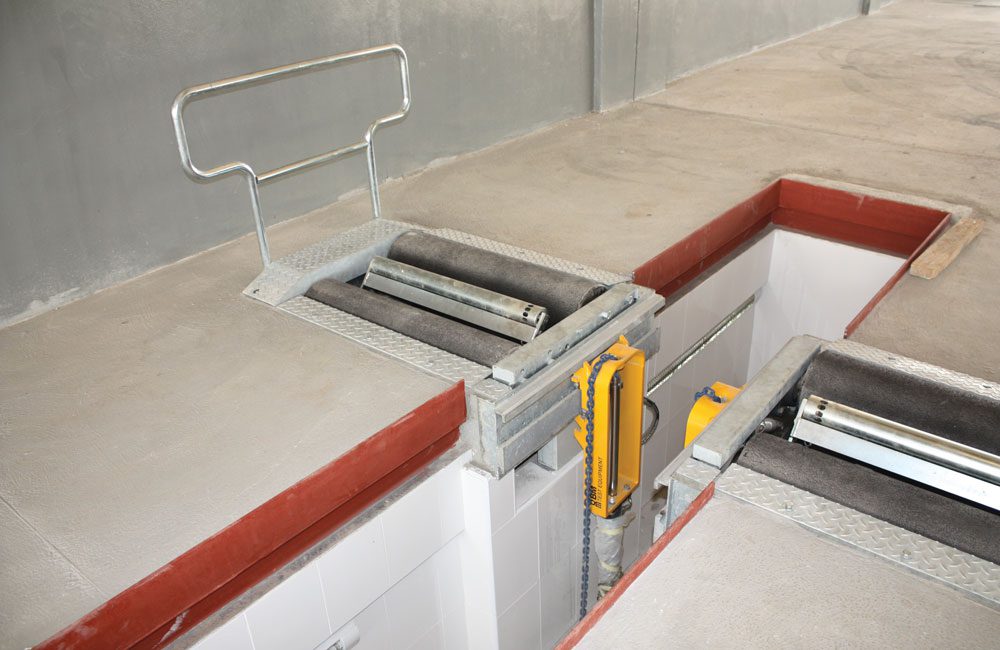

BM14200 roller brake tester with CLS load simulation
The BM14200 roller brake tester is approved by several international authorities i.e. RWTÜV Germany and complies with the ISO standard.
See also the other BM brake testers for light and heavy vehicles: BM12200, BM17200, BM20200 and BM5200.
Videos
BM14200 Roller Brake Tester
BM14200 roller brake tester in use together with PDA handheld unit
Installation of BM14200 brake tester
BM distributor in the UK, V-Tech, installing BM14200 in ground brake tester at Commercial Hairsine Trailers Ltd, Hull in March 2017.
BM14200 in-ground roller brake tester
BM14200 inground roller brake testing machine is a strong in-ground brake tester for light and heavy vehicles with an axle load up to 20t and is designed for workshop and vehicle inspection applications.
Video from BM Distributor, Levanta, in Australia.
Authorized Testing Facilities
VDO Automotive International using BM14200 in their testing facilities.
