Product description

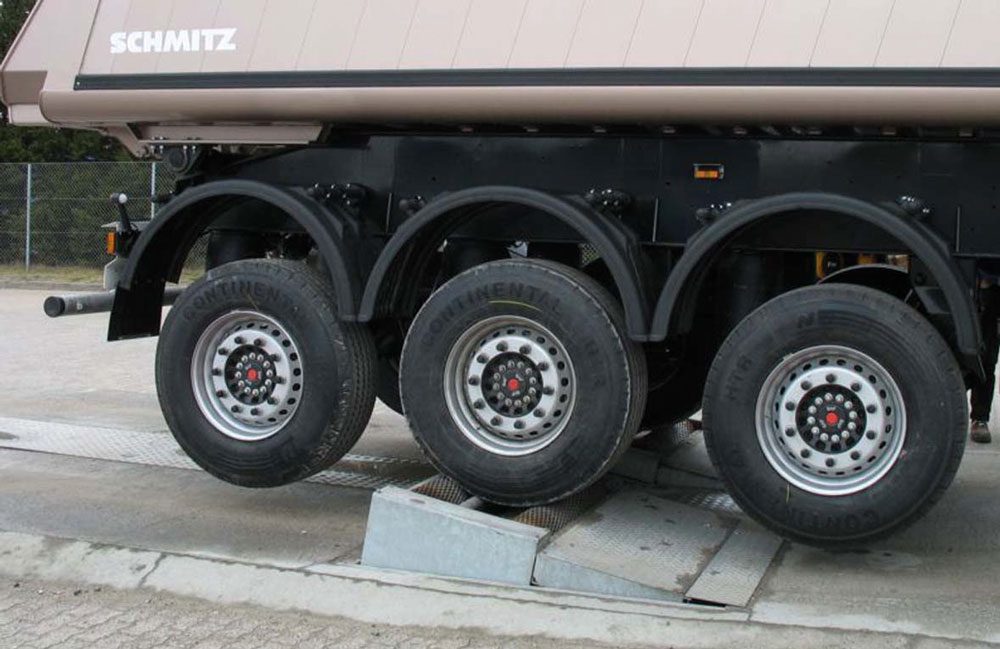

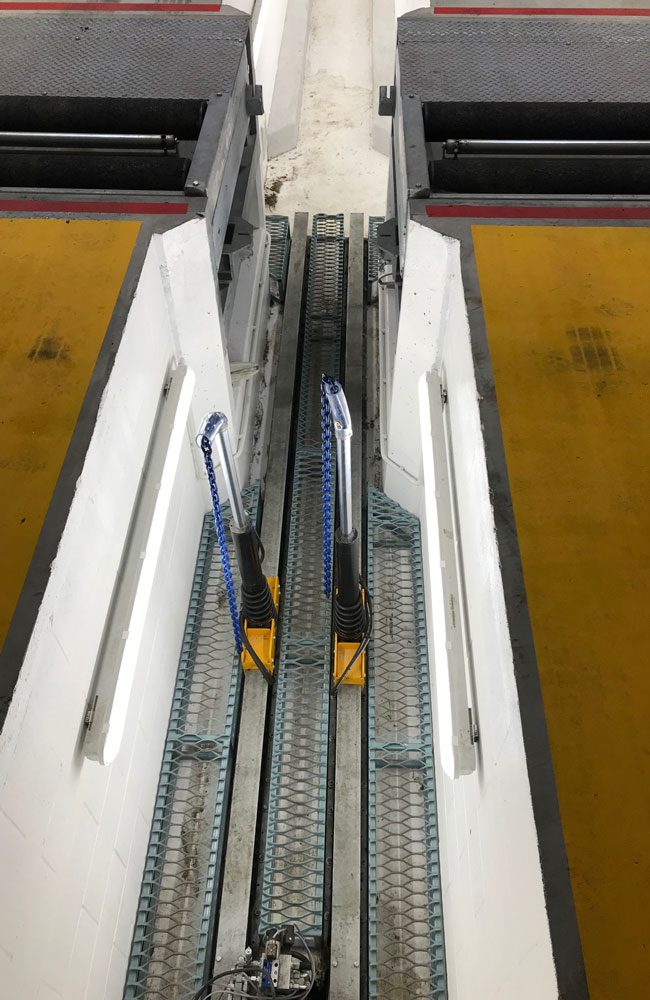

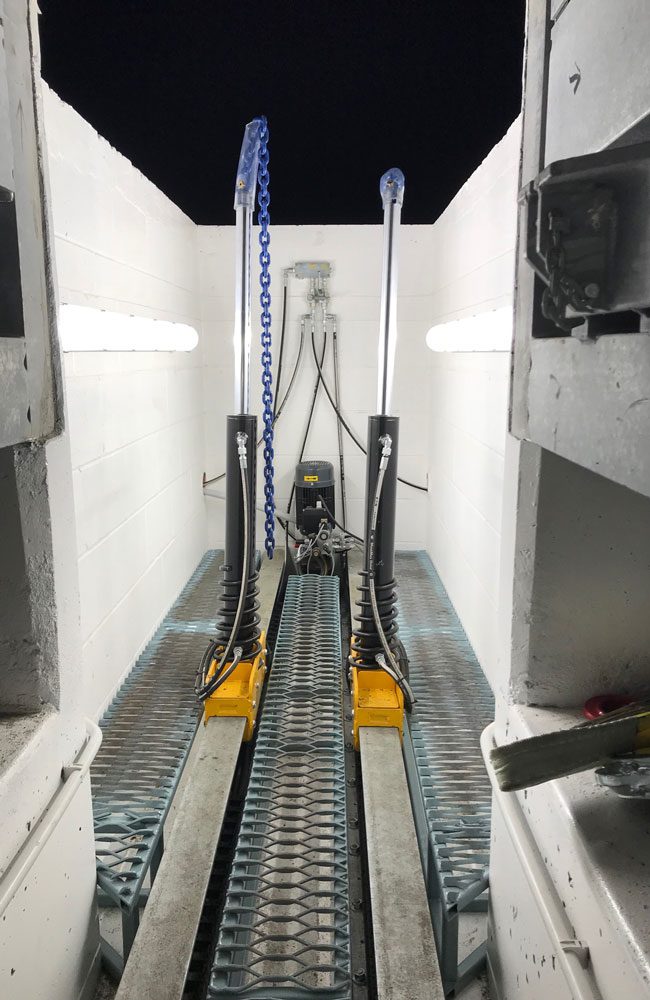

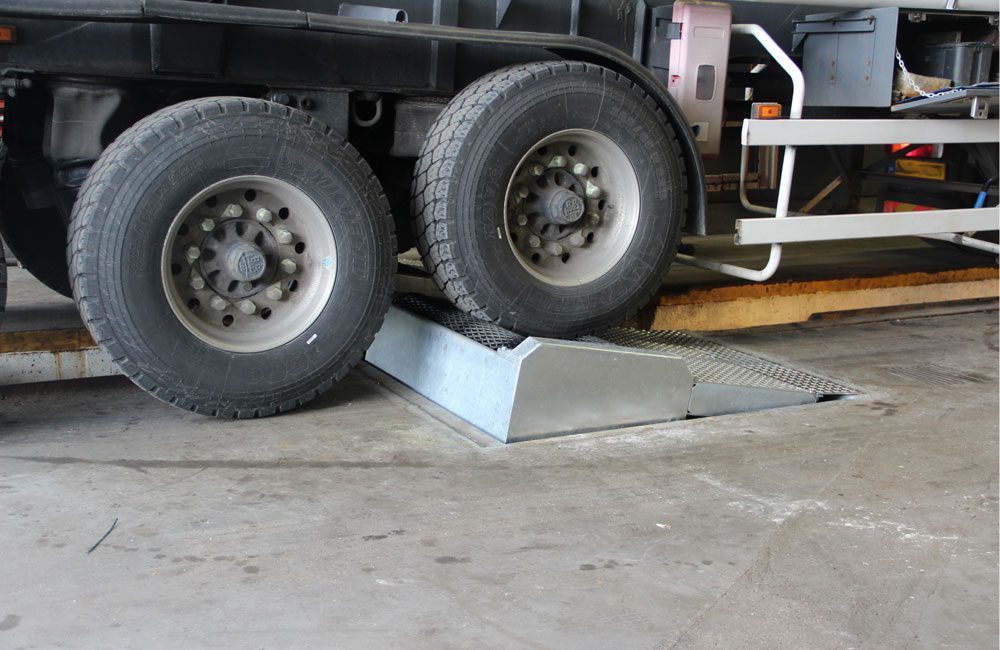

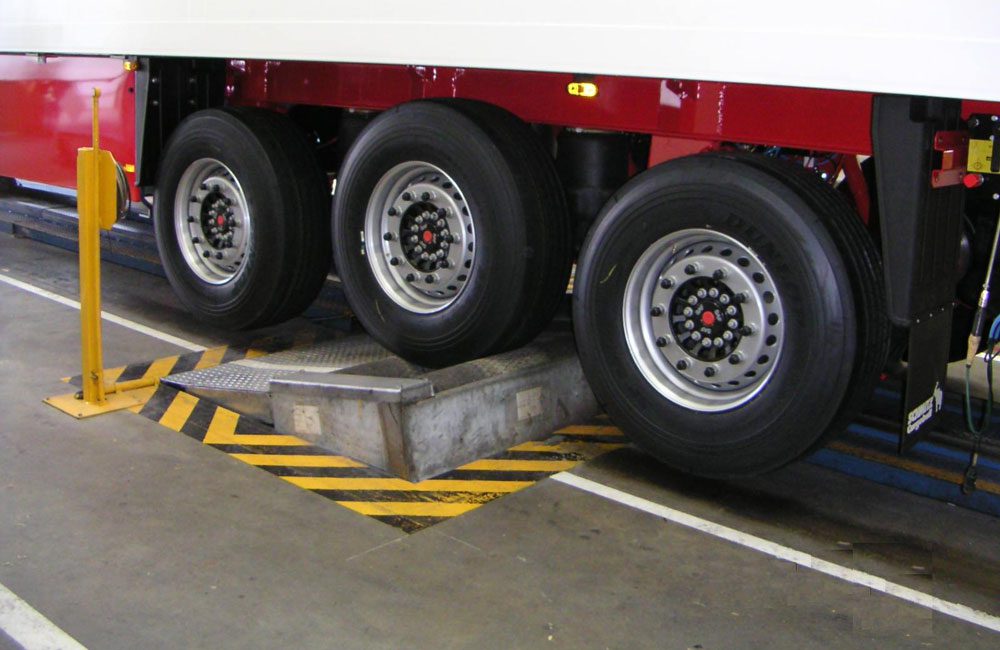

The BM17200 roller brake tester has a unique hydraulic load simulation system allowing the operator to raise the roller bed out of the ground.
This brake tester features a large range of options that allows for a customized configuration.
OPTIONS
- Load simulation using raised rollers (without use of slings).
- Robust and long lasting:
- All steel is of highest quality and hot galvanized.

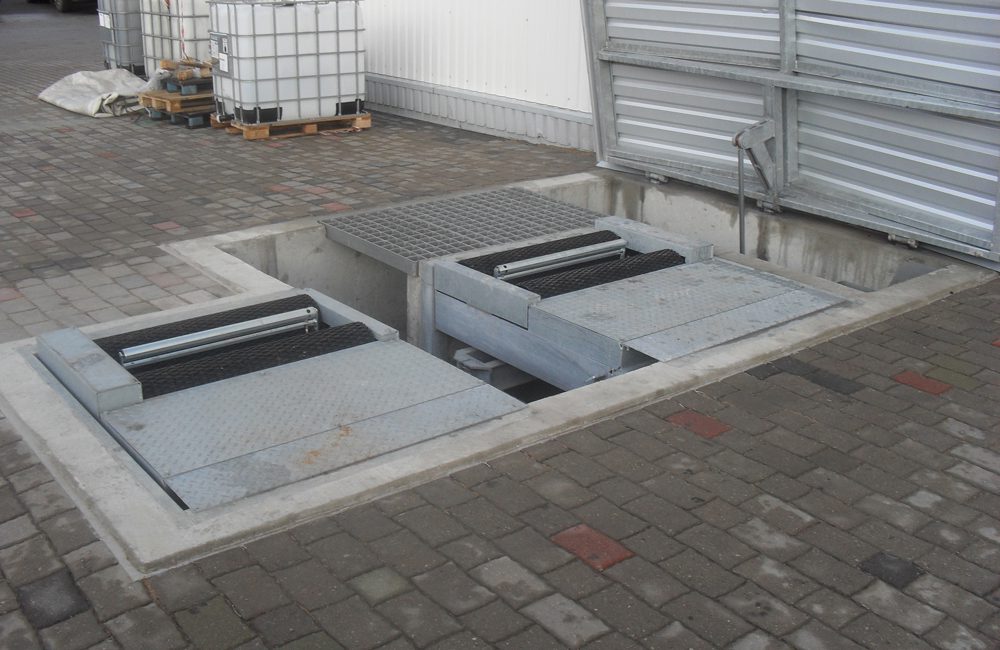

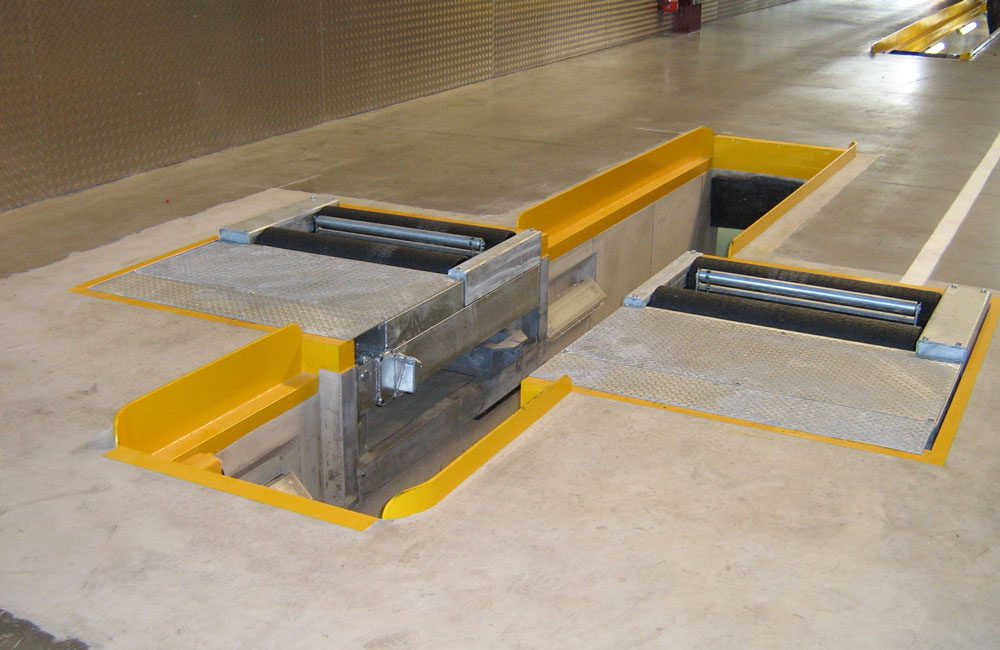

- Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.

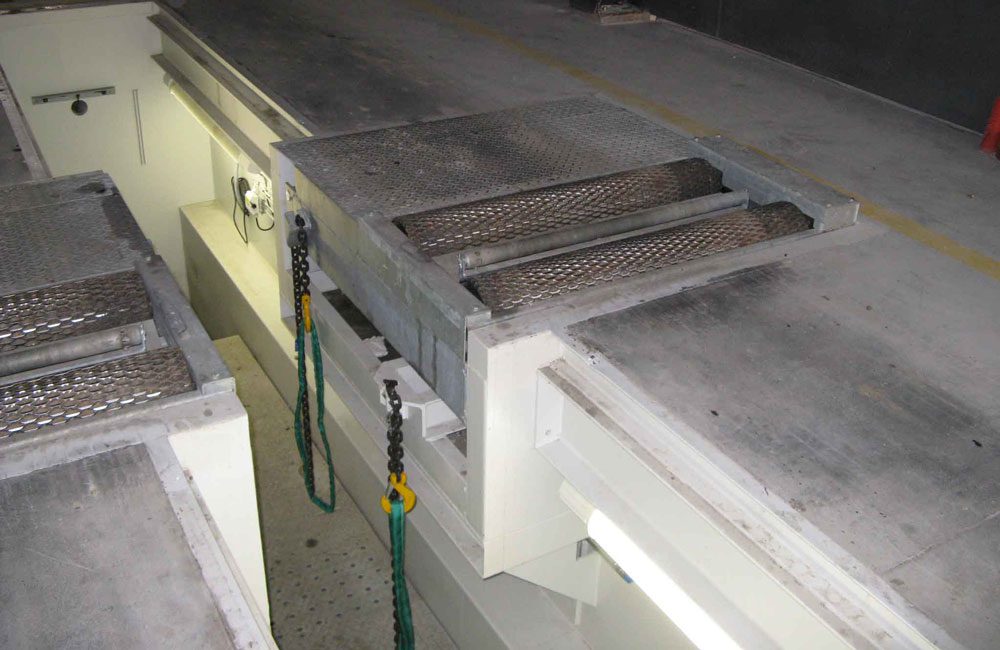

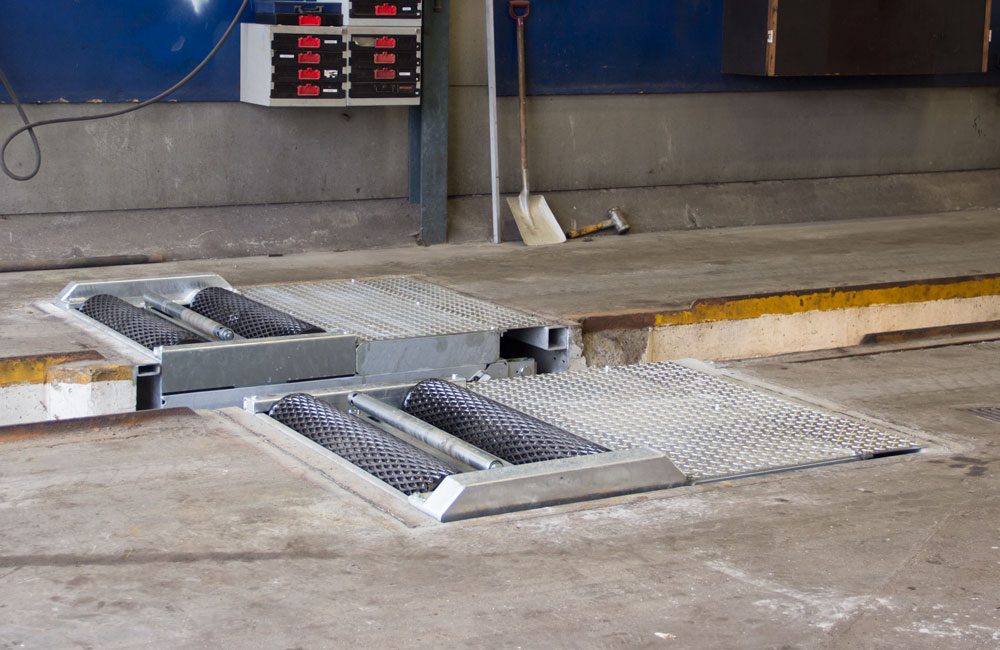

- The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
Steel mesh plus a flintstone/bauxite surface for test of all tires except spike tires.
Steel mesh for test of all tires including spike tires.
- Can be supplied in a minimum configuration and still allows for later upgrade to all options.
- Easy to use with BM software:
- Integrated guide.
- Advanced graphics printout.
- Diagnostic printout with or without connection to PC/Notebook.
- Calculation of test results according to the requirements of many national authorities.
- BM FlexCheck software:
- Advanced data collection, storing and presentation of test results.
- Data capture from a complete inspection lane.
- PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.
BM FlexCheck on smartphone and tablet
- Infrared remote control with an operating distance of 15-25 metres.
- Large and easy-to-read aluminium display with analogue and digital readout of all relevant test data.
- Integrated guiding system.
- Large analogue dials showing readings of left and right brake forces.
- 65 mm high bright digital readouts of other measurement results.
- Modularly designed so that it can be customized to existing and future demands.
- Display units are available in daN, kgf or kN.
- Up to 3 displays can be connected.
- Optional cable or radio air/hydraulic pressure system.
- Optional automatic axle weighing.

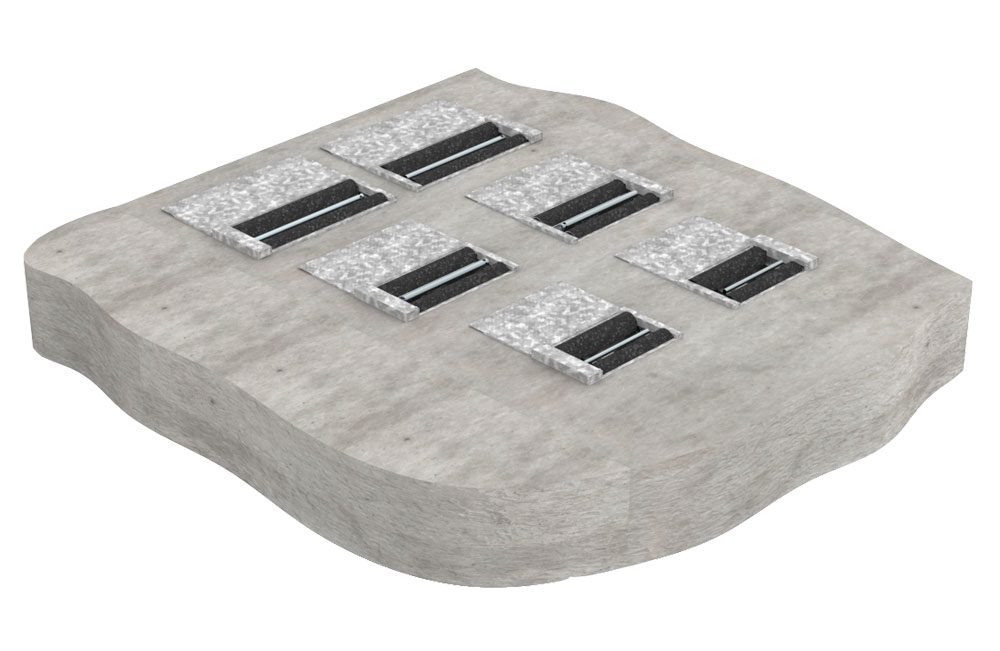

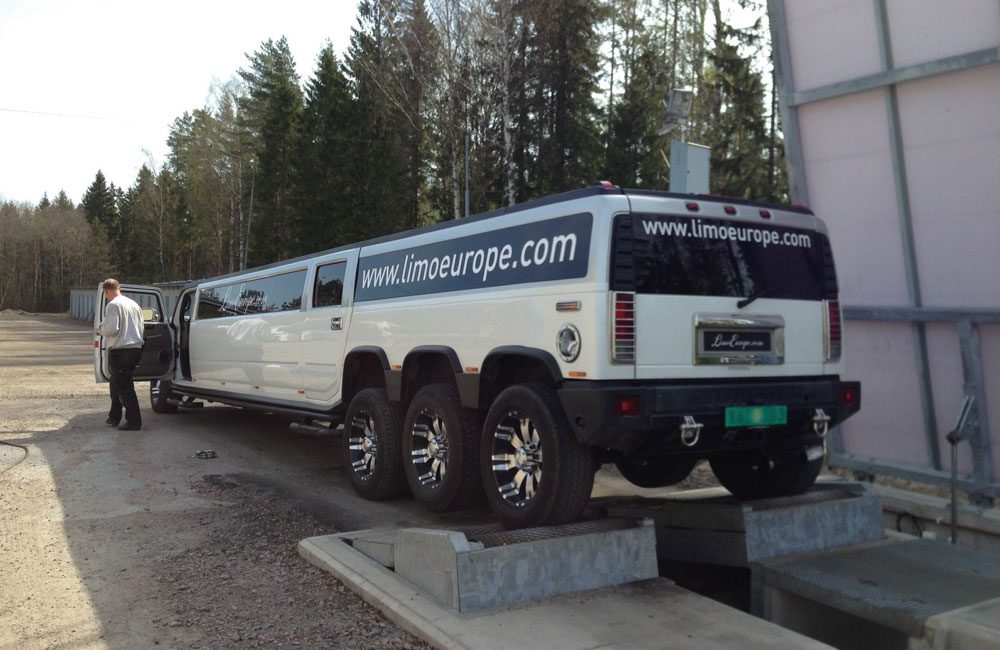

- Test of 4x4, 6x4 and 8x6 driven vehicles.
- Optional cable or radio pedal force meter.
The BM17200 roller brake tester is approved by several international authorities i.e. RWTÜV Germany and complies with the ISO standard.
See also other BM brake testers for light and heavy vehicles: BM12200, BM14200, BM20200 and BM5200.
