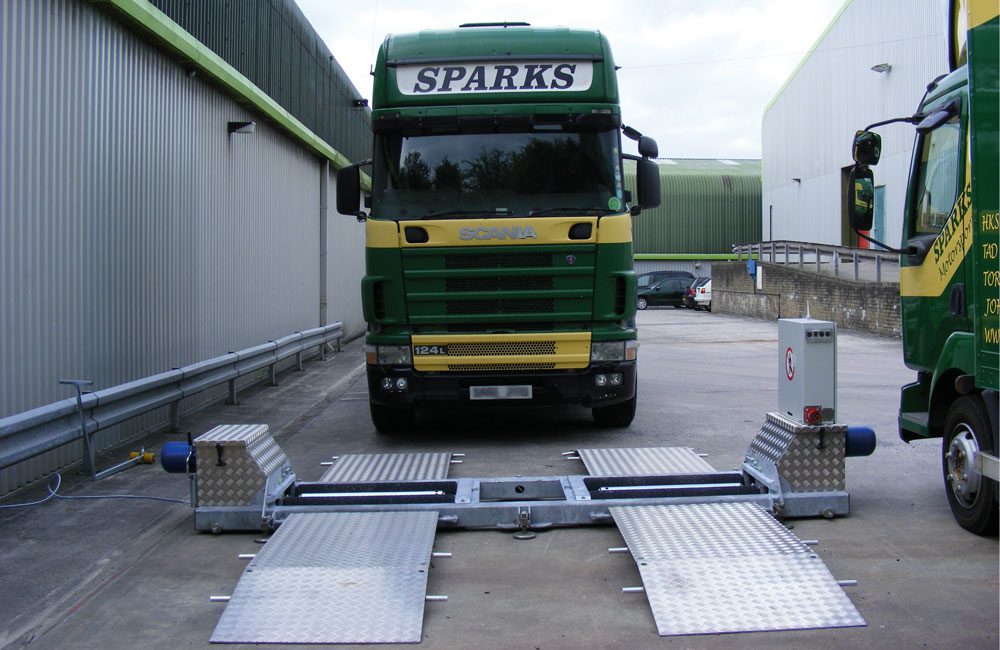

The BM20200 roller brake tester is designed for direct on-ground installation without need of civil work. It requires only approximately 10 minutes for one person to set it up for operation.
This brake tester features a large range of options that allows for a customized configuration.
OPTIONS
Robust and long lasting:
All steel is of highest quality and hot galvanized.

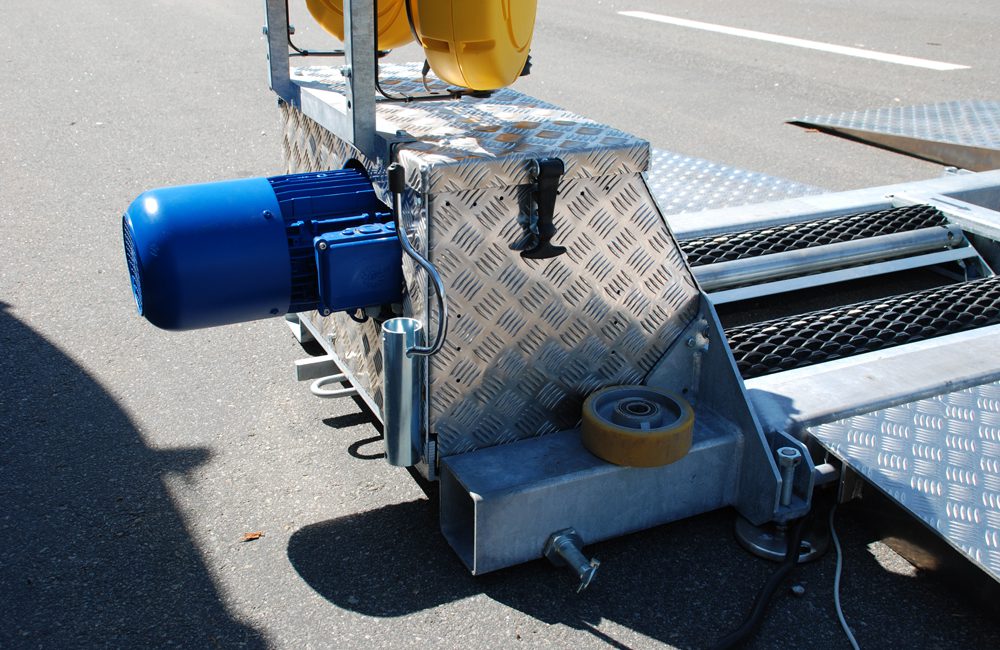

Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
Steel mesh plus a flinstone/bauxite surface for test of all tires except spike tires.
Steel mesh for test of all tires including spike tires.
Can be supplied in a minimum configuration and still allows for later upgrade to all options.
Easy to use with BM software:
Integrated guide.
Advanced graphics printout.
Diagnostic printout with or without connection to PC/Notebook.
Calculation of test results according to the requirements of many national authorities.
IT system using the latest app technology for smartphone and tablet (Windows and Android).
The rollers are only approximately 160 mm above floor level allowing for very short drive on/off ramps (only 125 cm on each side).
Requires a minimum of floor space.
Total weight of only approximately 1200 kg.
Can be supplied with wheels and trolley for easy manuovering.

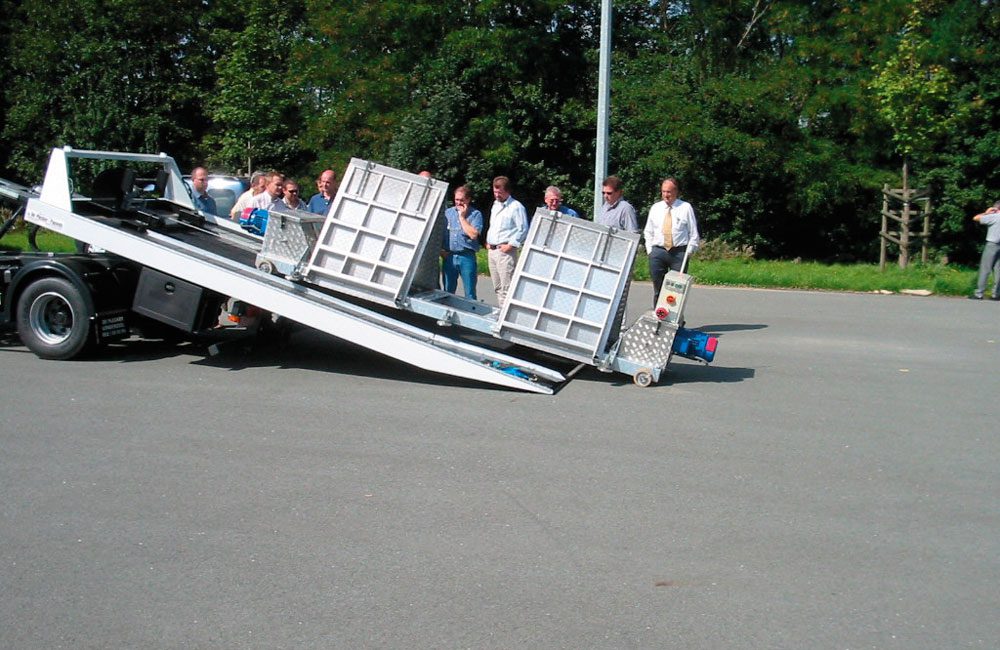

Compact design during transport with drive on/off ramps folded up and display placed between left and right side roller bed.
Can be made operational by one person in approximately 10 minutes.
Installation
Placed directly on the floor indoor or outdoor without need of civil work.

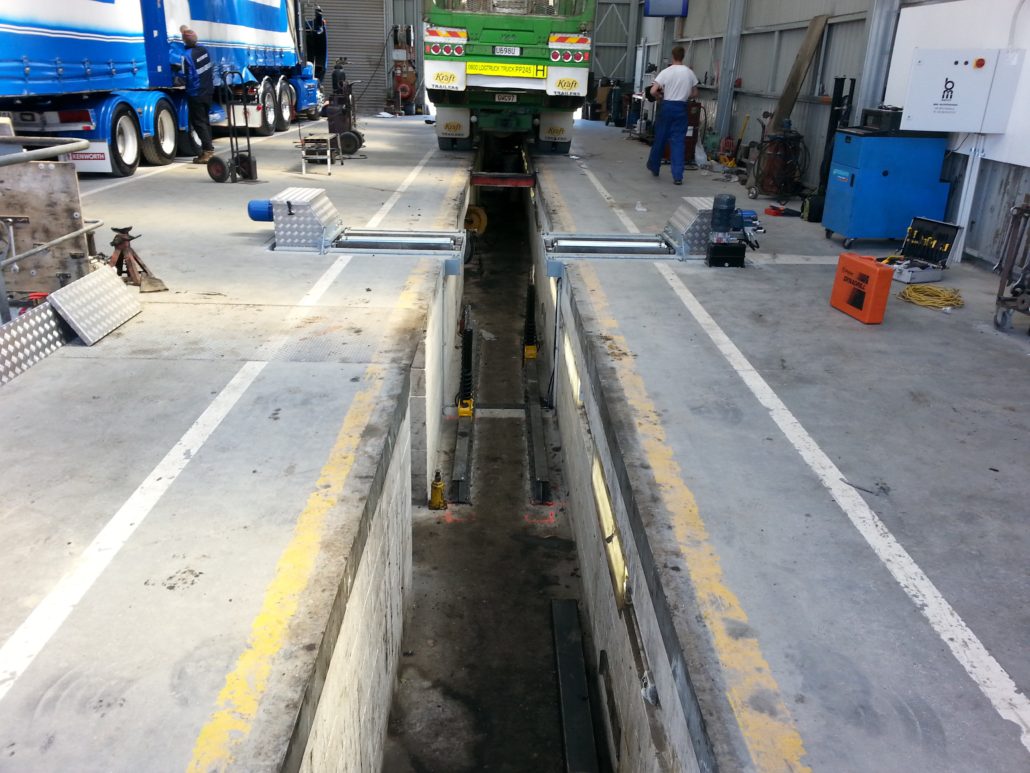

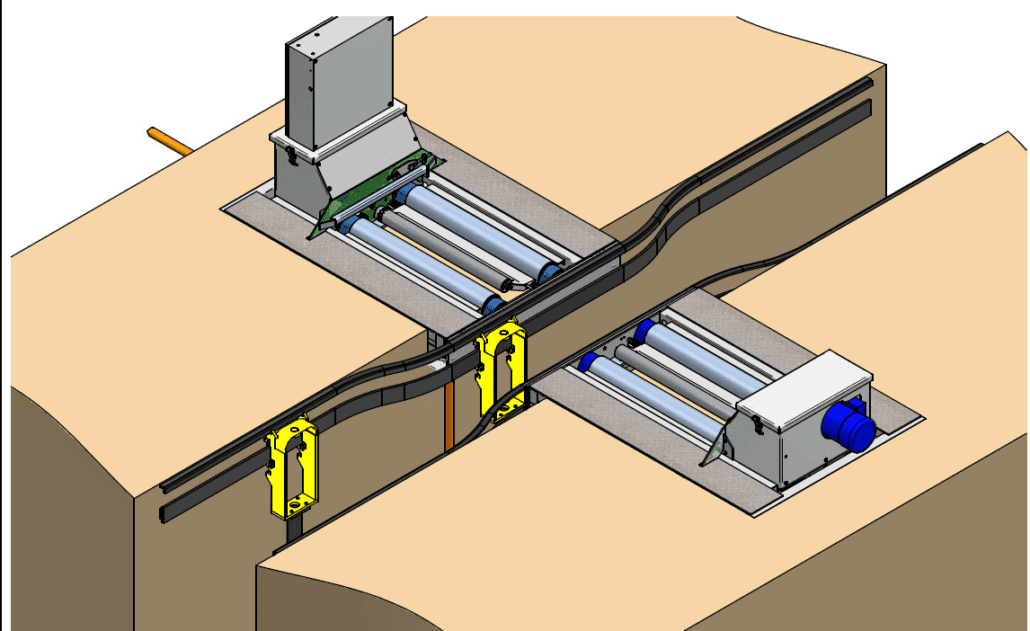

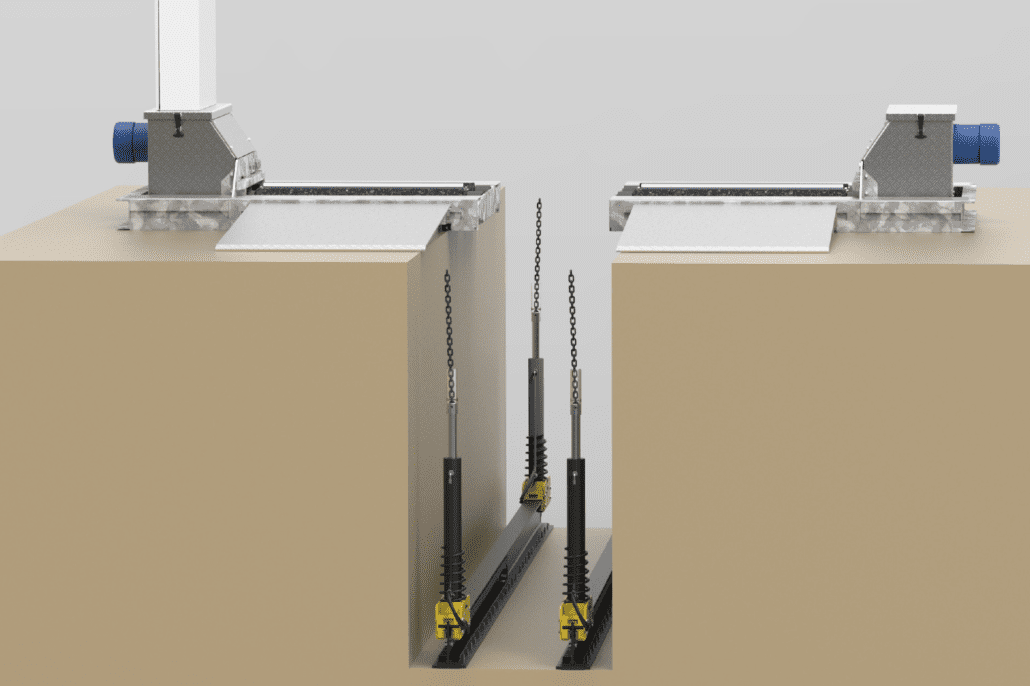

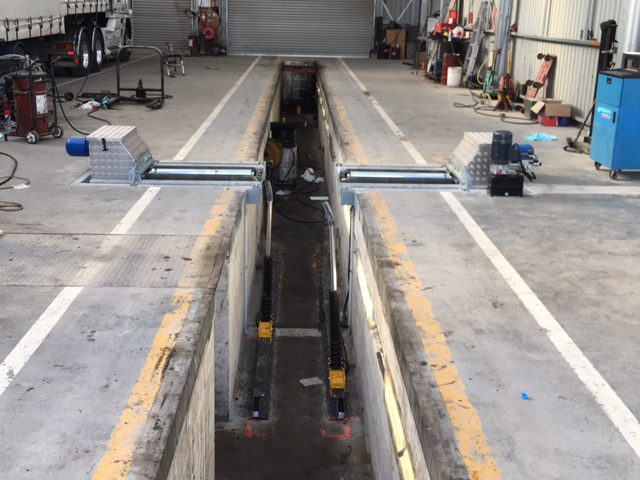

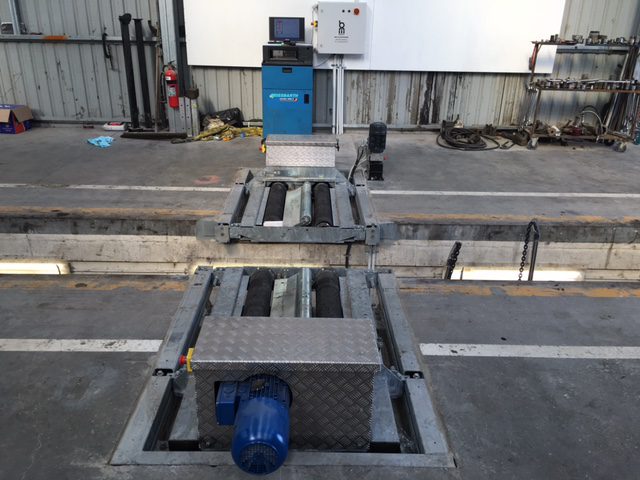

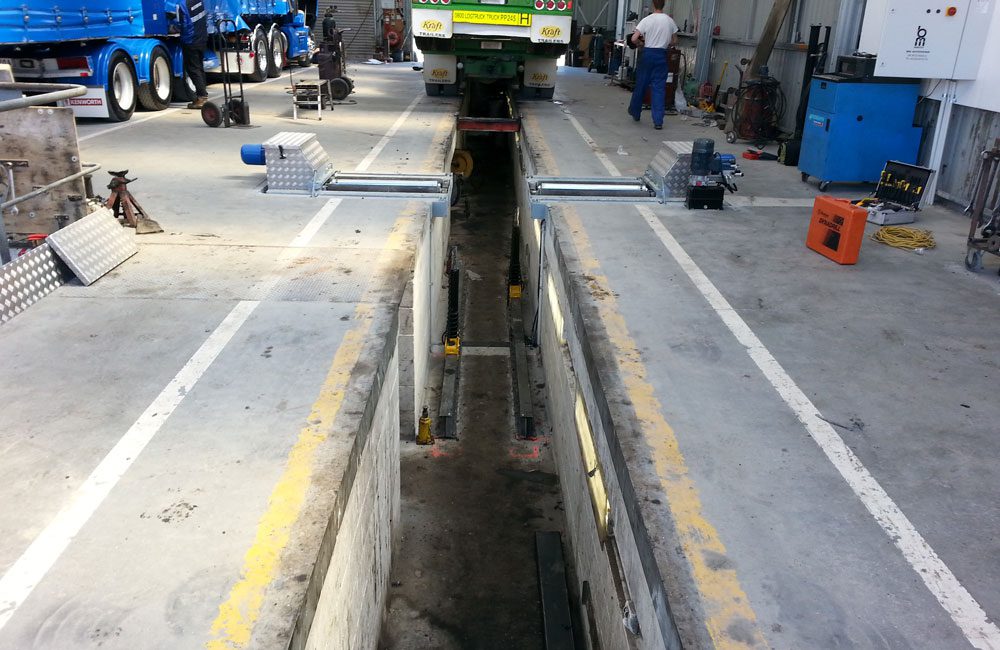

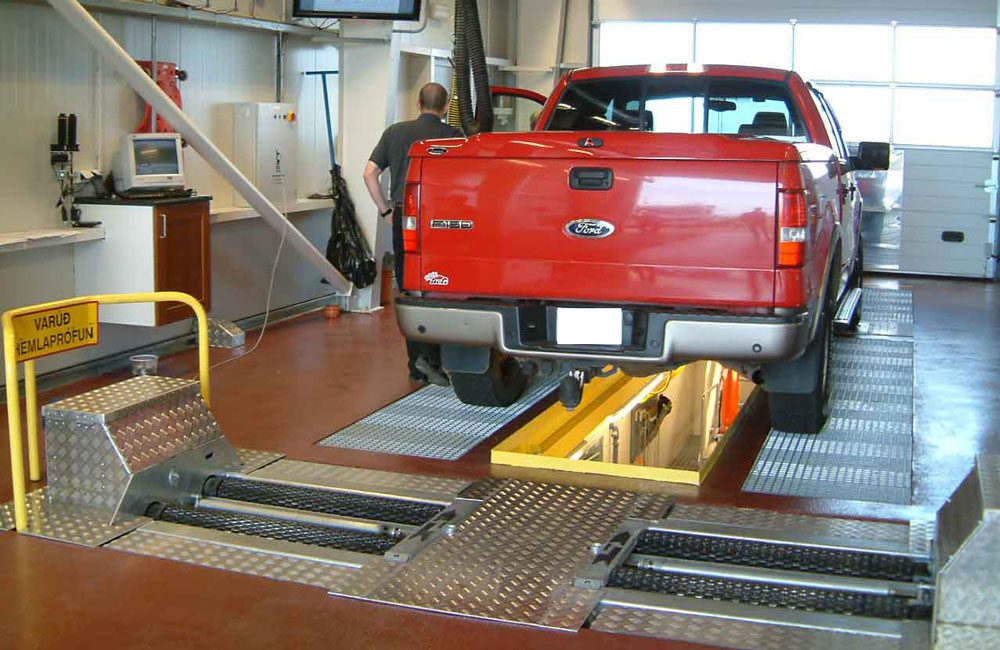

Can be installed as split bed over an inspection pit.
No particular requirements to the testing area surface (asphalt, concrete, gravel, sand, dirt etc.)
Can be installed both indoor and outdoor in most environments from -30ºC to 60°C and humidity up to 95.
Applications
Normal workshops for repair and test of light and heavy vehicles.

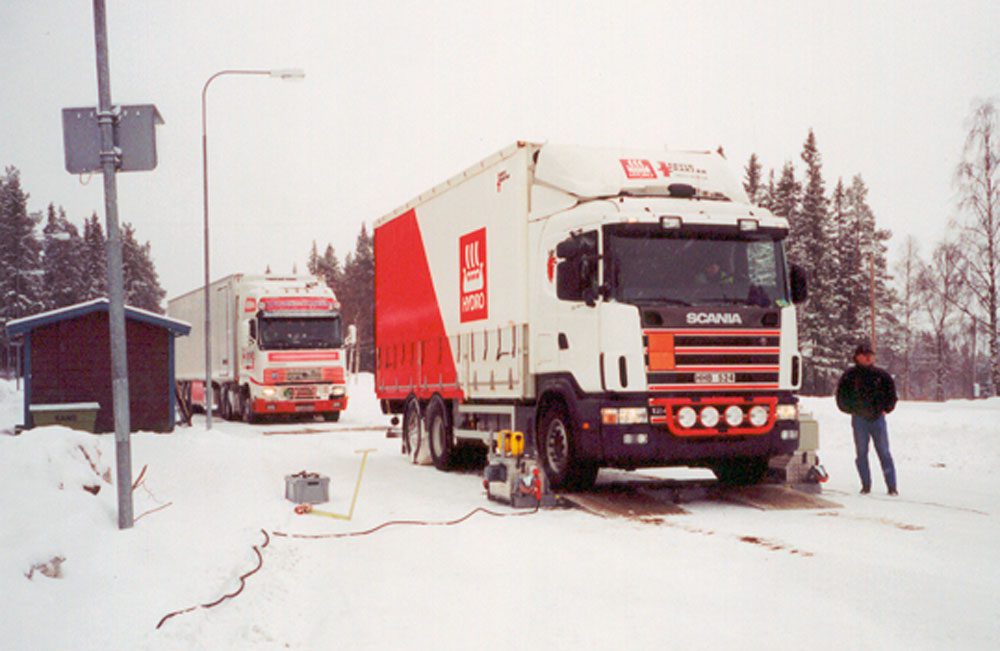

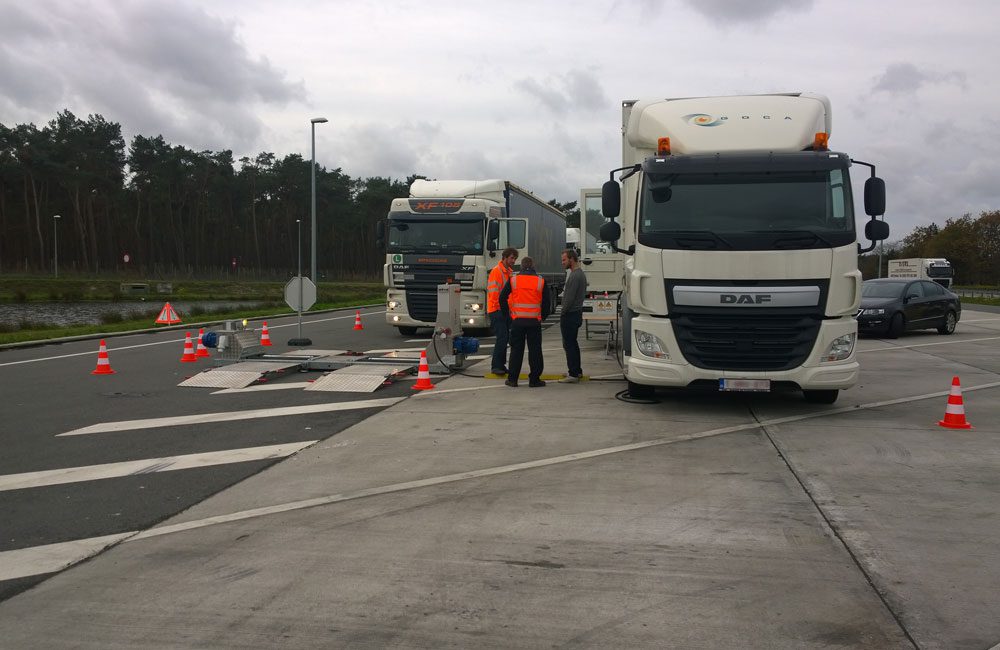

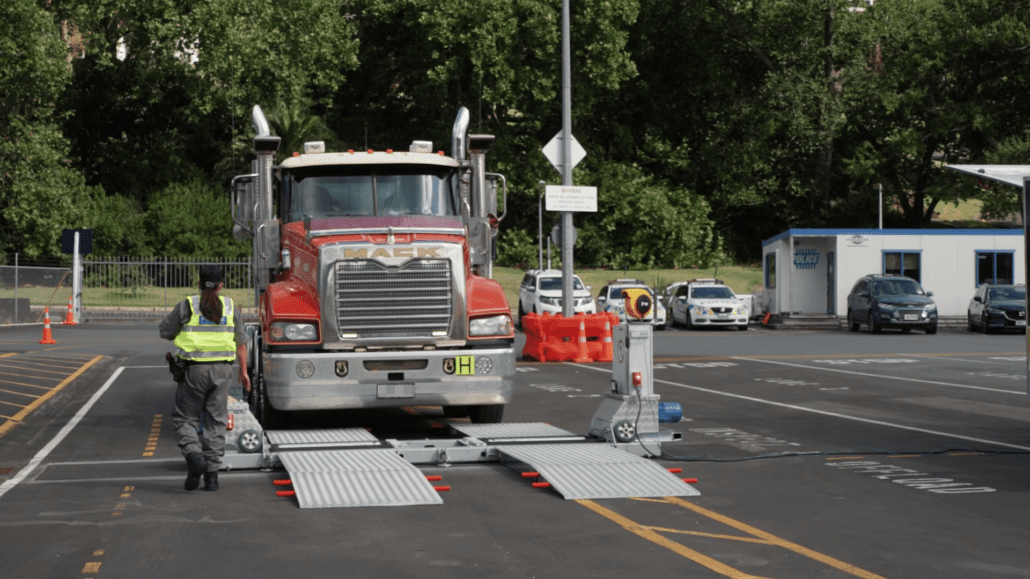

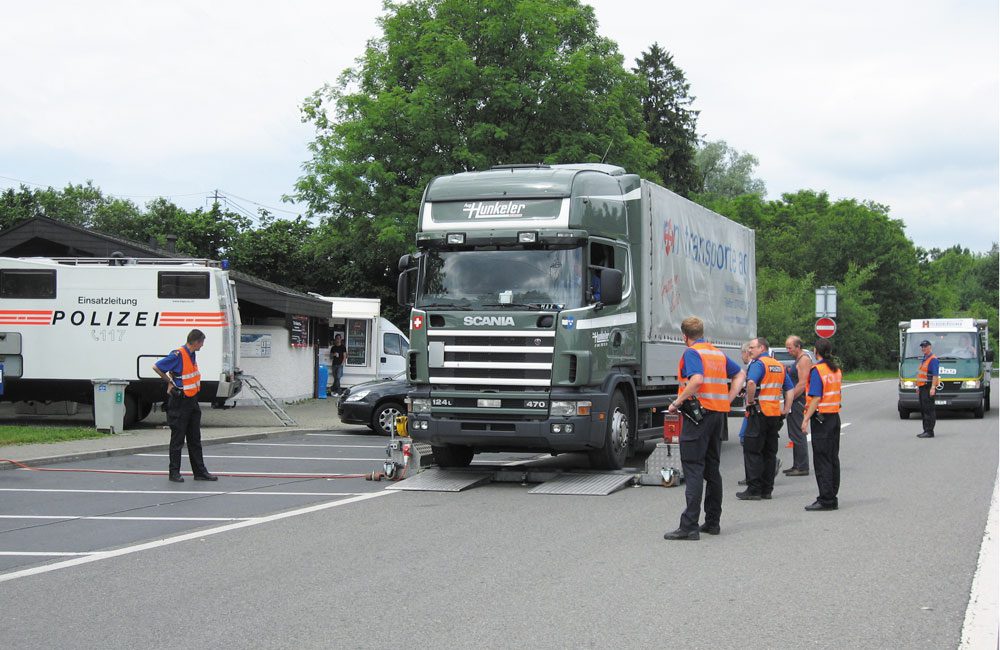

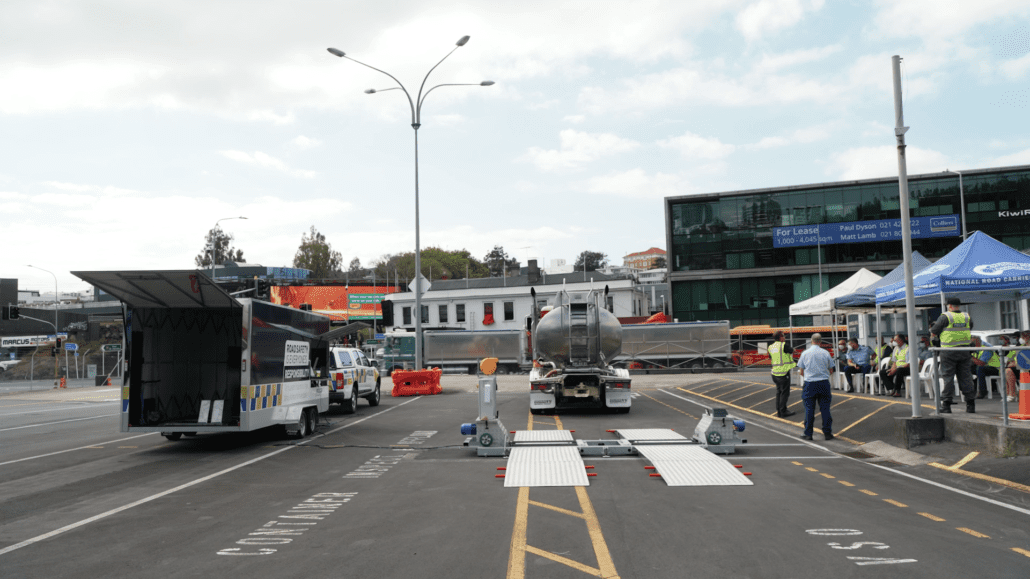

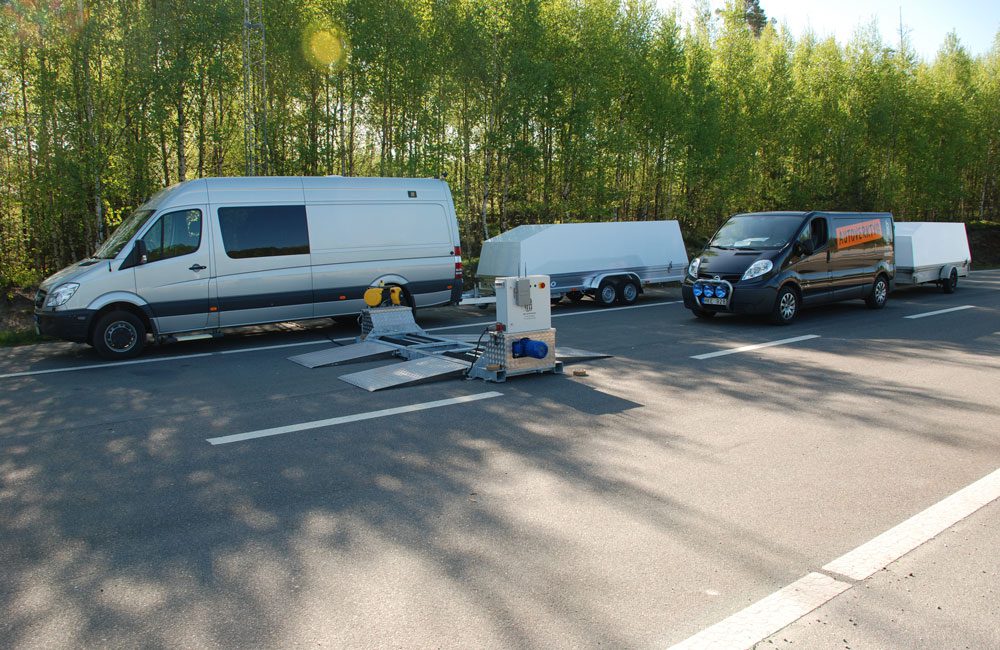

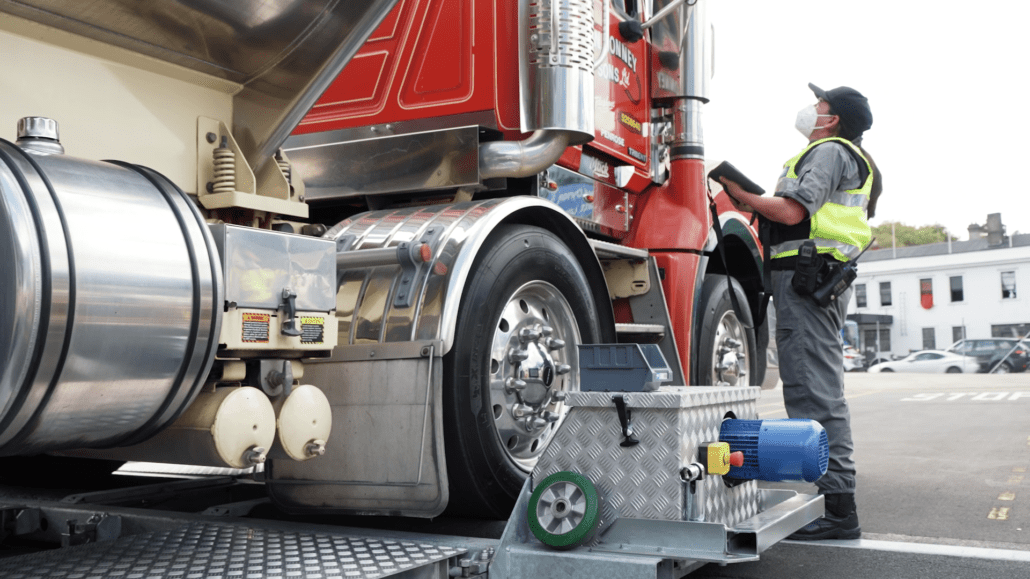

Perfect for road side inspections by enforcement authorities due to low weight and height.

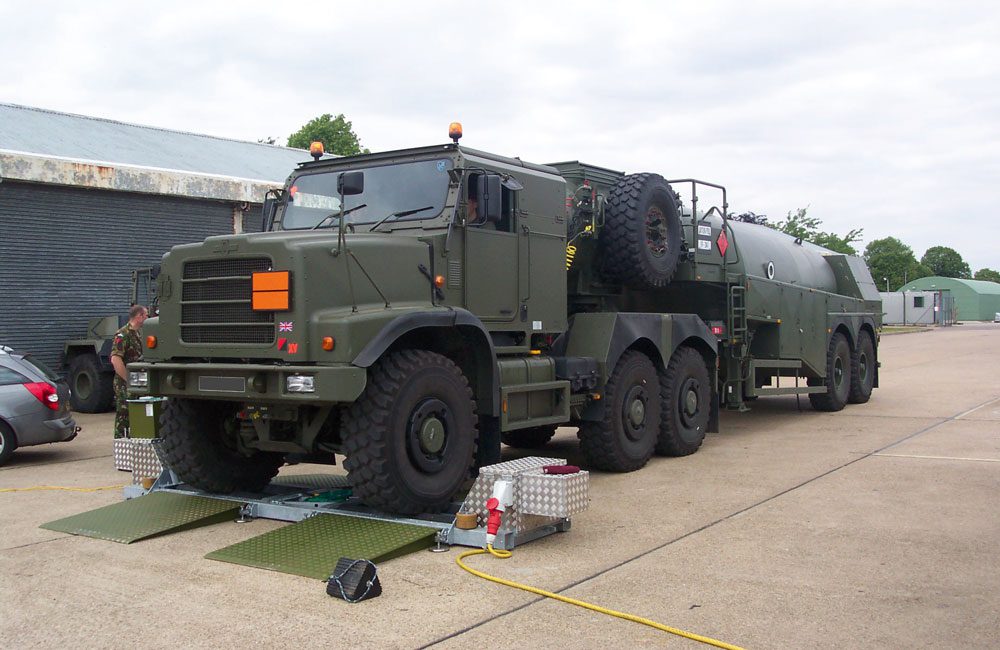

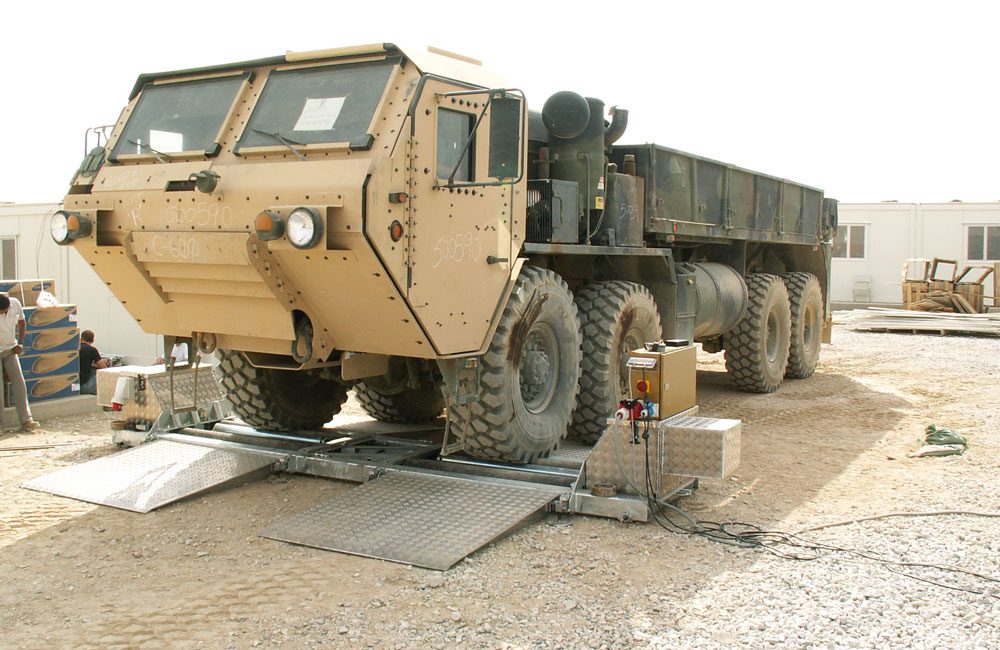

Works well in tough environments as experienced by army, navy and air force organisations.

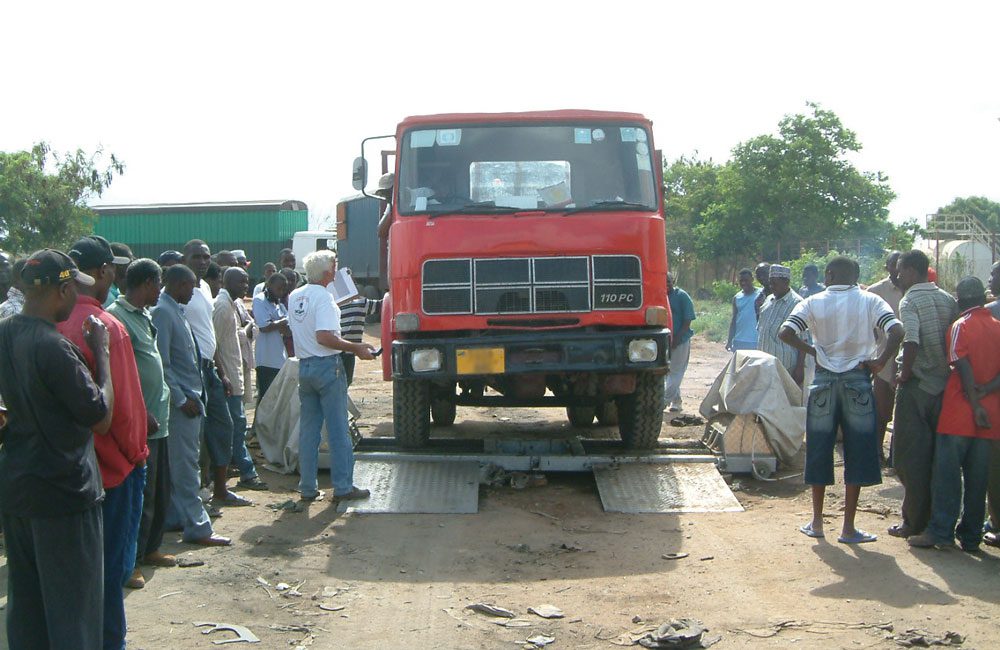

Can be placed directly on-ground on locations such as indoor and outdoor repair workshops, lay-bys at highways, port entry areas, gravel ground at remote areas etc.

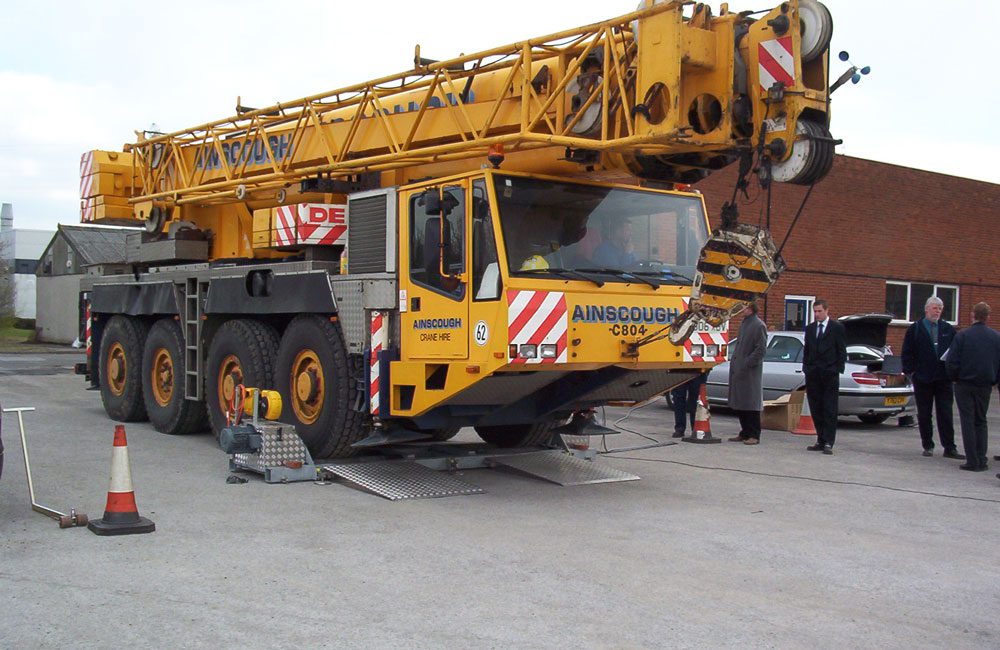

BM20200 is a mobile brake tester for light and heavy vehicles with an axle load of up to 20.000 kg.

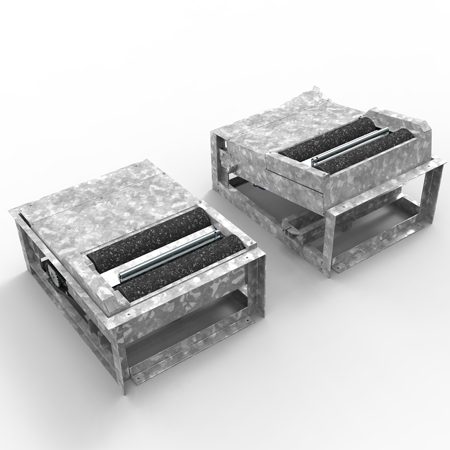

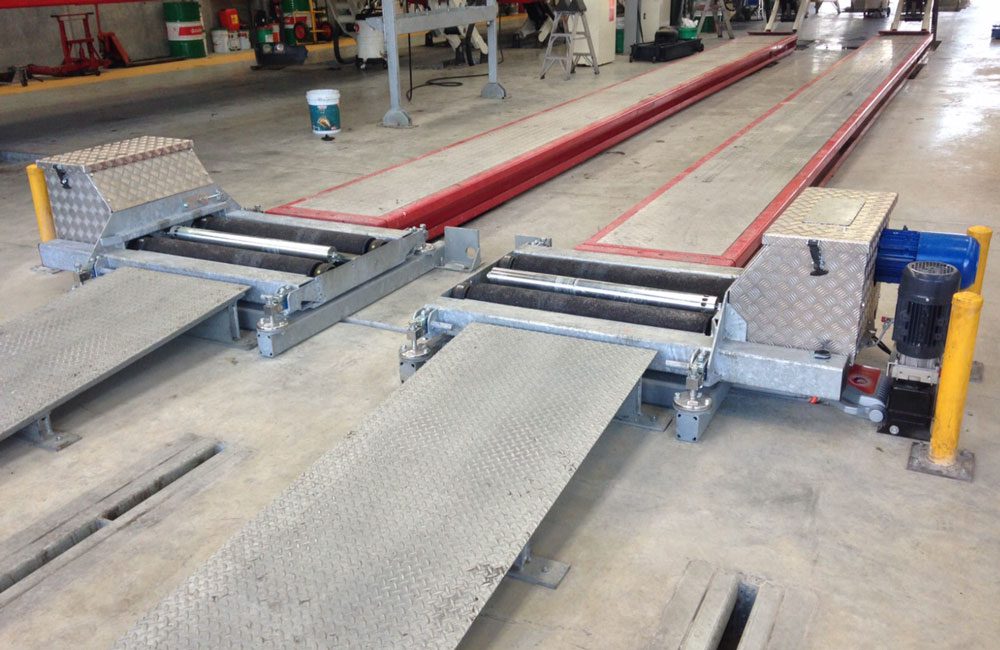

BM20200 brake tester with BM118 free rollers

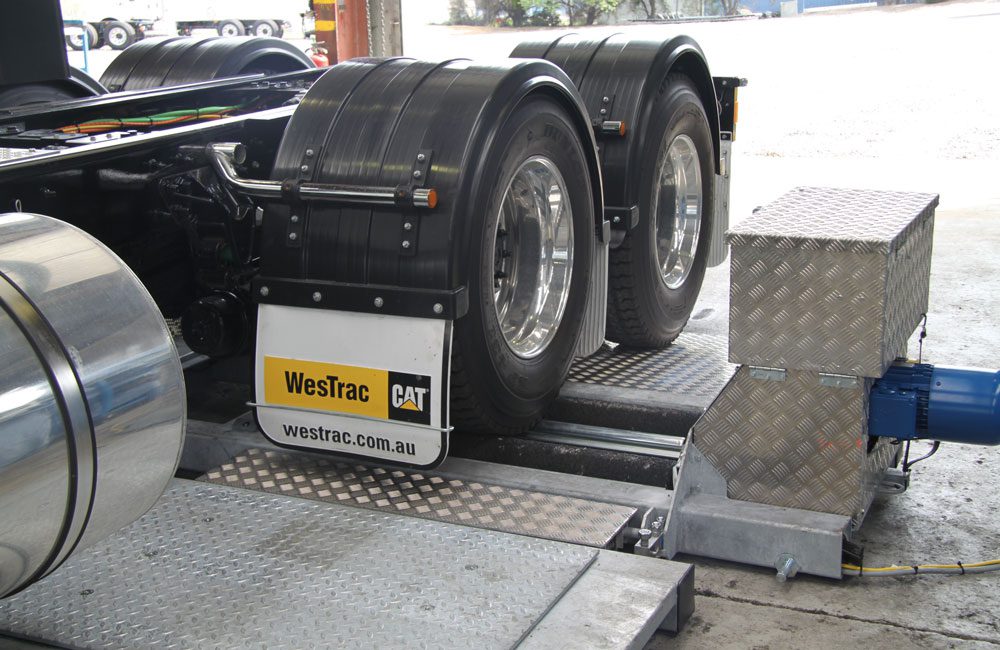

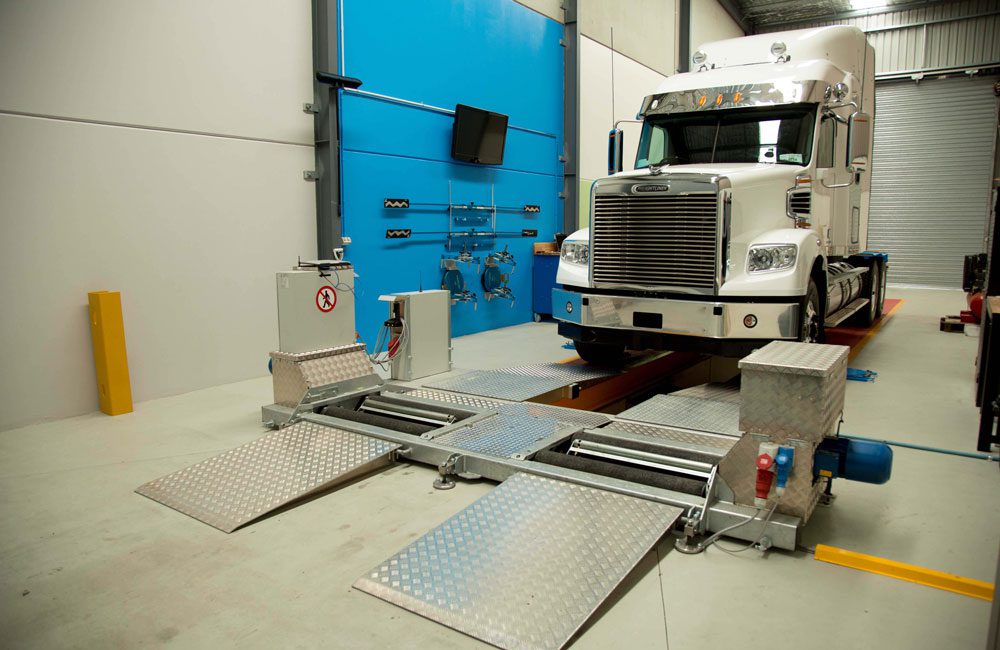

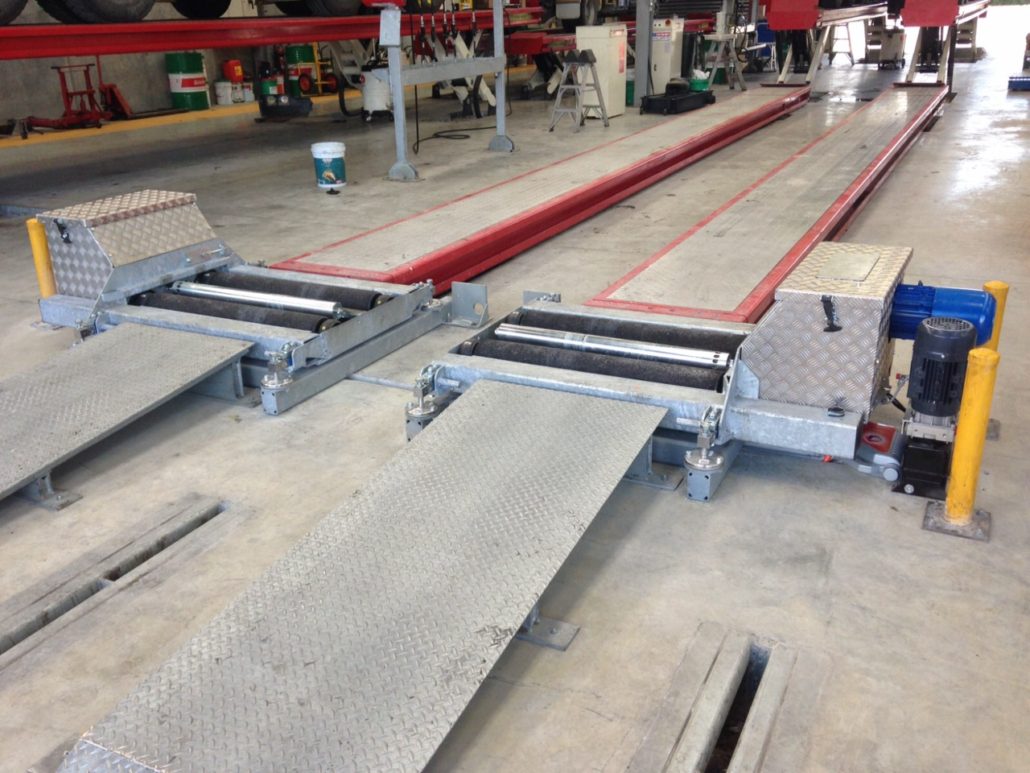

BM20200 mobile brake tester at Volvo GTO factory End of Line Brisbane Australia
Mobile brake tester installation – BM20200

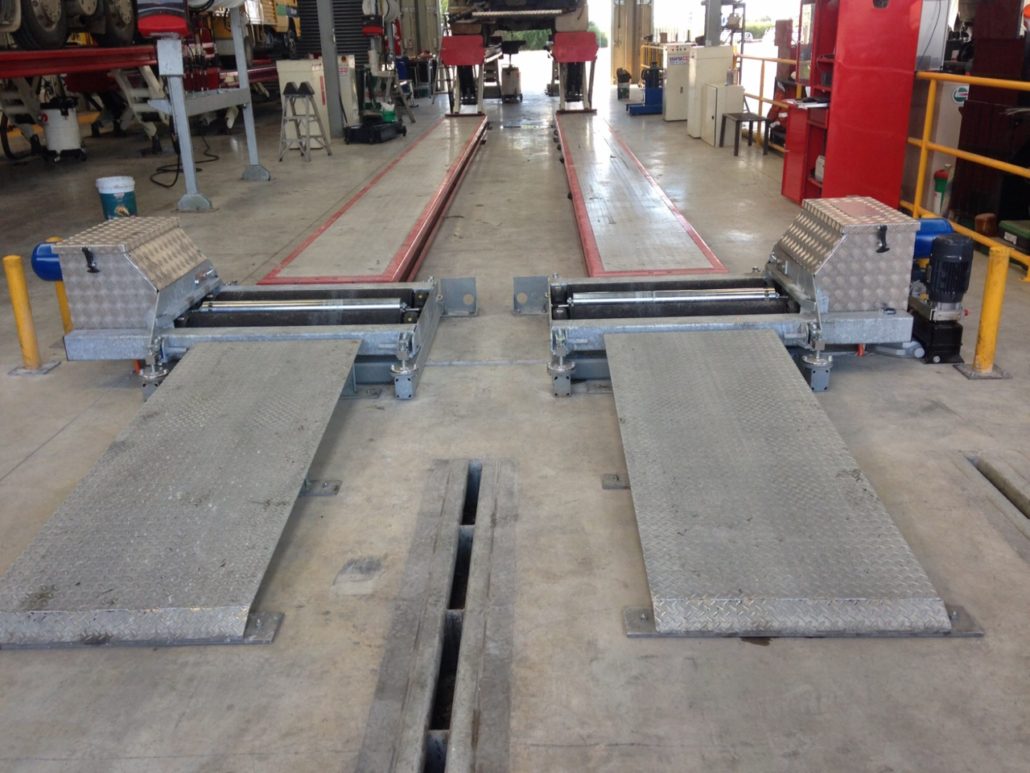

A V-Tech installation of a BM20200 Mobile roller brake tester for Omega Travel. A great workshop solution to test the fleet’s braking systems without the need for civil works and to keep the workshop space flexible.

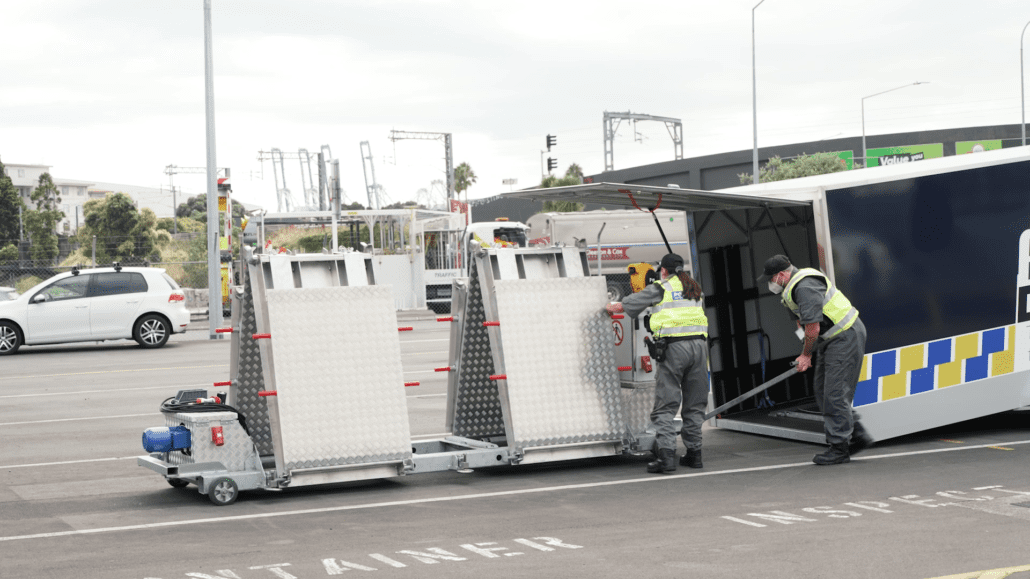

Unloading a BM20200 mobile roller brake tester
Unloading a BM20200 mobile roller brake tester in less than 10 minutes. This video was made by BM distributor in USA, LINK Engineering.
Full brake test on BM20200
Conducting a brake test on a BM20200. This video was made by BM distributor in USA, LINK Engineering.

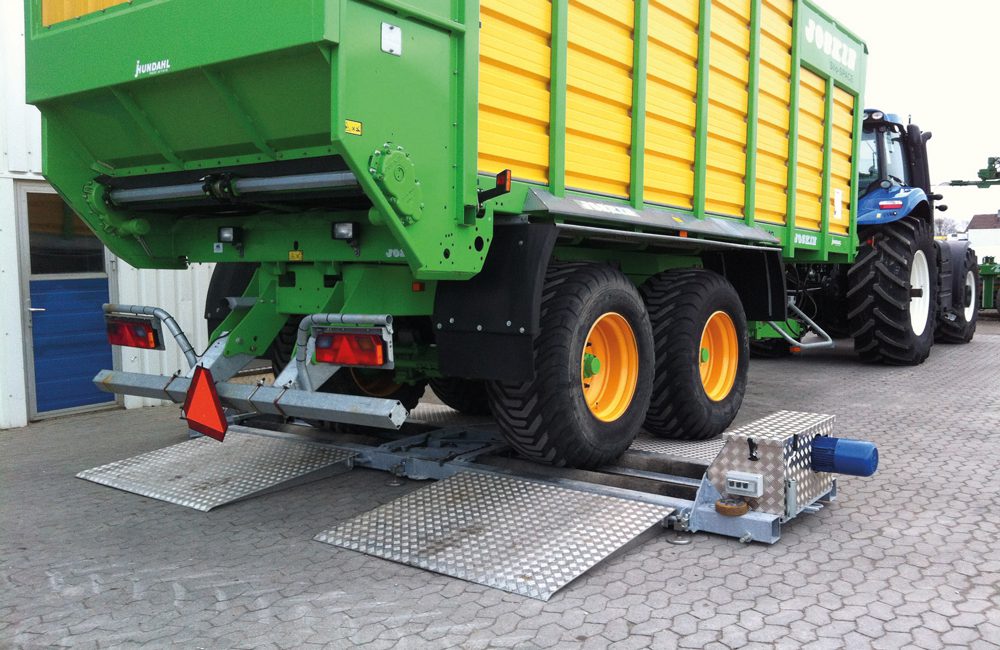

Roller brake test of agricultural vehicles
Danish.
A film about brake testing of agricultural vehicles made by BM Autoteknik in association with the Danish “Færdselsgruppen” (Traffic Group).
Roller brake test of agricultural vehicles
Danish with English subtitles.
A film about brake testing of agricultural vehicles made by BM Autoteknik in association with the Danish “Færdselsgruppen” (Traffic Group).
Tractor testing on “Bremsedagen 2011”
Danish. BM Autoteknik tested tractor train using BM25 SmartTest.
