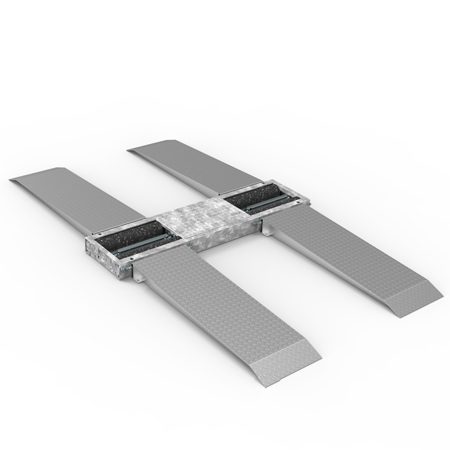

The design of the BM3010 roller brake tester is unique on the market, as it has a height of only 16 cm and can be placed directly on the floor.
This brake tester features a large range of options that allows for a customized configuration.
OPTIONS
Robust and long lasting:
All steel is of highest quality and hot galvanized.
Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
Steel mesh plus a flintstone/bauxite surface for test of all tires except spike tires.
Steel mesh for test of all tires including soike tires.
Can be supplied in a minimum configuration and still allows for later upgrade to all options.
Prepared for test line expansion including suspension tester, speedometer tester and side slip tester all controlled from the same electronics with results shown on one display.
Easy to use with BM software:
Integrated guide.
Advanced graphics printout.
Diagnostic printout with or without connection to PC/Notebook.
Calculation of test results according to the requirements of many national authorities.
IT system using latest app technology for smartphone and tablet (Windows and Android).
The rollers are only 160 mm above floor level allowing for very short drive on/off ramps (only 185 cm on each side).
Requires a minimum of floor space.
Capable of measuring up to 700 daN/kgf on each wheel, which equals or outperforms most conventional brake testers.
The display can be mounted either on the wall, saving floor space, or on floor column devices, that are designed so equipment is protected even when floor is cleaned with chemicals. It can also be mounted on a trolley making it easy to move around.
Can be supplied with wheels and trolley for easy moving around by one person.
Can easily be transported from site to site on a flatbed truck or trailer. This allows for sharing the brake tester between different sites or to perform brake test of vehicles at fleet owners site.
Installation
Can be installed in-ground using a hot galvanized subframe. Thus it can be used on-ground in a temporary location and later moved to a new location to be – if requested – installed in-ground.
Can be installed both indoor and outdoor in most environments from -30ºC to 60°C and humidity up to 95.
Applications
Normal workshops performing repair of any light vehicle.
Vehicle inspection bodies.
In workshops placed directly on the floor saving cost of civil work.
Can be placed in front of a 4-post lift. The height of the BM3010 matches the height of most 4-post lifts.
Can easily be used for both leasing/hiring as well as “try-before-buy” sales.
