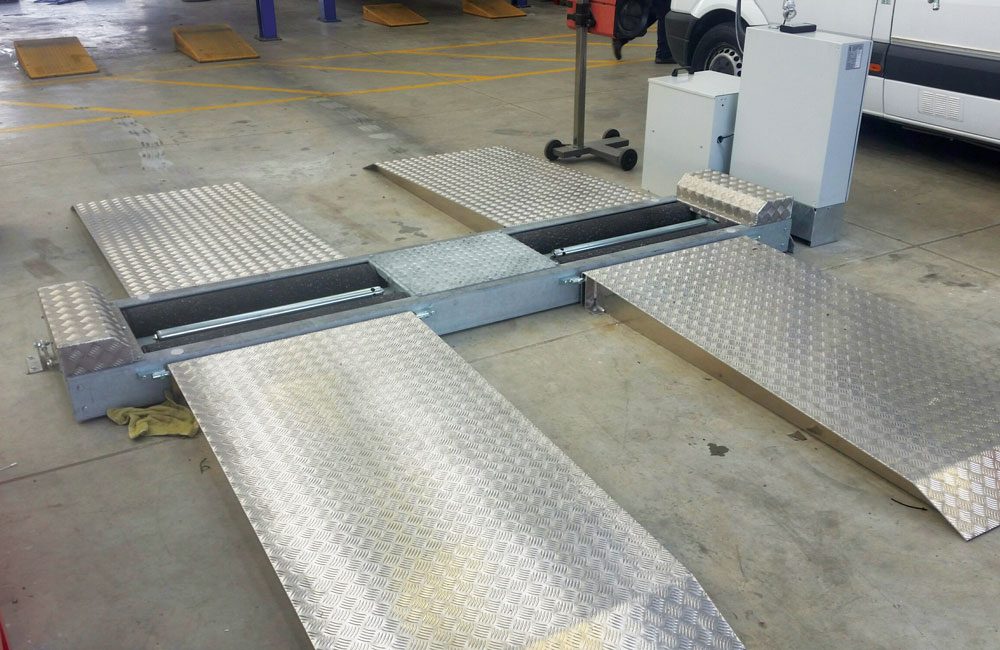

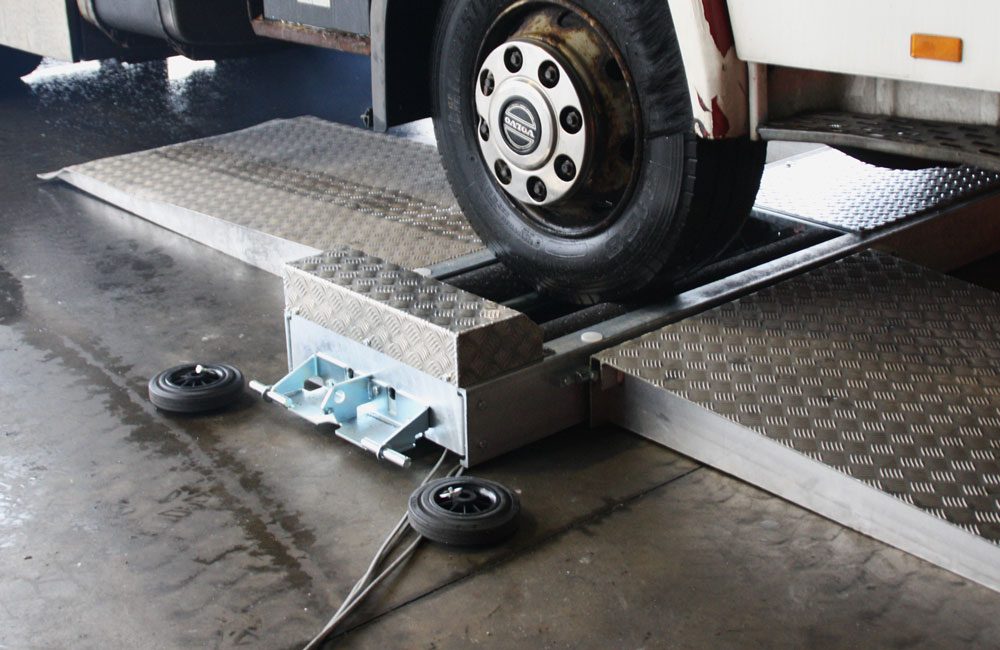

Product description
The BM5010 roller brake tester is capable of measuring up to 1450 daN/kgf in each wheel, which equals or out-performs most conventional brake testers on the market.
This brake tester features a large range of options that allows for a customized configuration.
OPTIONS
- Robust and long lasting:
- All steel is of highest quality and hot galvanized.

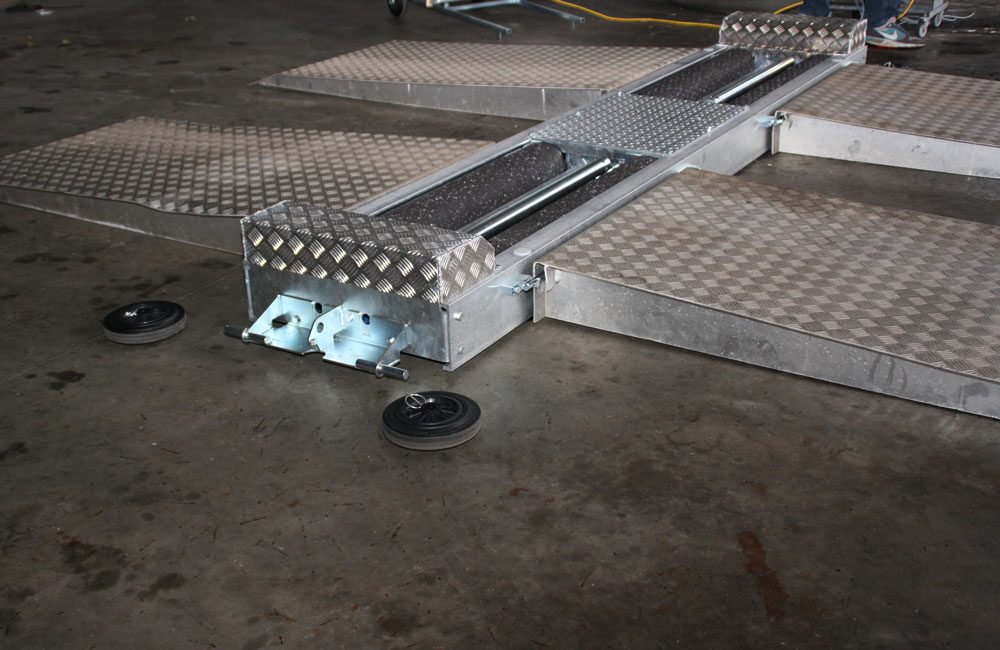

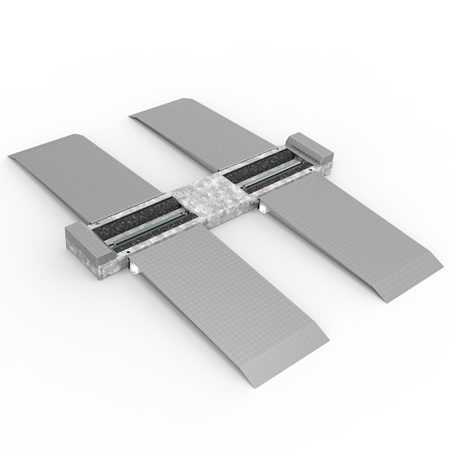

- Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
- The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
Steel mesh plus a flintstone/bauxite surface for test of all tires except spike tires.
Steel mesh for test of all tires including spike tires.
- Can be supplied in a minimum configuration and still allows for later upgrade to all options.
- Prepared for test line expansion including suspension tester, speedometer tester and side slip tester all controlled from the same electronics with results shown on one display
- Easy to use with BM software:
- Integrated guide.
- Advanced graphics printout.
- Diagnostic printout with or without connection to PC/Notebook.
- Calculation of test results according to the requirements of many national authorities.
- BM FlexCheck software:
- Advanced data collection, storing and presentation of test results.
- Data capture from a complete inspection lane.
- PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.
BM FlexCheck on smartphone and tablet
- Infrared remote control with an operating distance of 15-25 metres.
- Cable remote control with a maximum operating distance of 30 metres.
- Large and easy-to-read aluminium display with analogue and digital readout of all relevant test data.
- Two large analogue dials showing readings of left and right brake forces.
- 50 mm high bright digital readout of brake force imbalance in %.
- Optional digital readouts of e.g. ovality, pedal force, weight, efficiency, suspension values, speed and distance values.
- Pedal force measurement.
- Test of 4x4 drive vehicles.
- Automatic axle weighing system.
See also other BM brake testers for light vehicles: BM3010, BM4010, BM7010 and BM9010.
