BM605 Tacho Tester

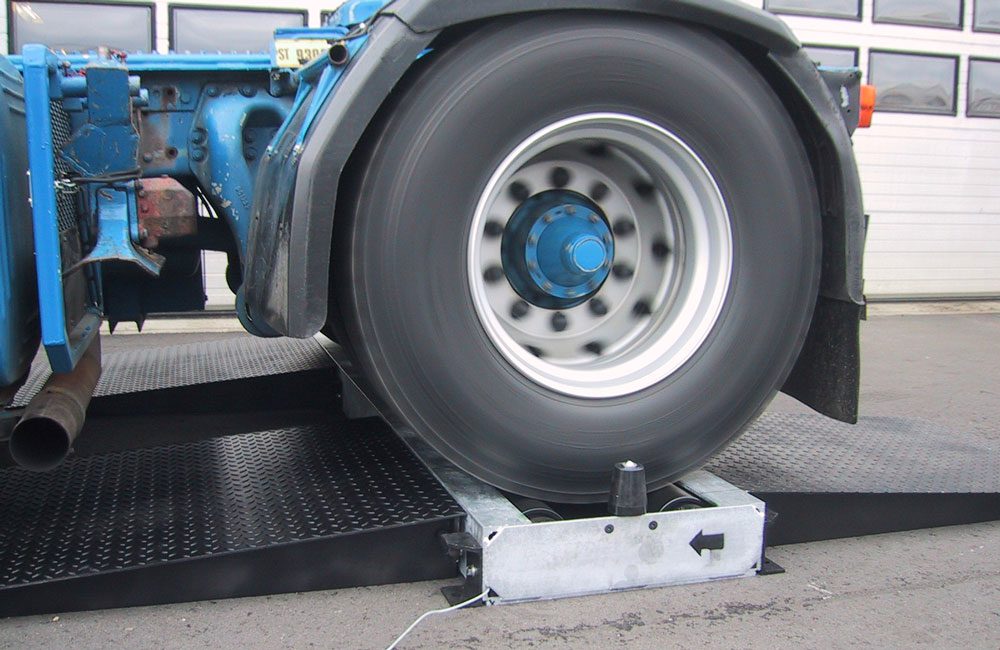

A strong tacho tester for testing of speed on light and heavy vehicles with an axle load up to 16000 kg.

Compare

Categories: , , ,
Tags: , , , , ,

Product description

The BM605 tacho tester is a strong tester with 4 rollers.

The tacho tester features a range of options that allows for a customized configuration.

OPTIONS
  • Robust and long lasting:
    • All steel is of highest quality and hot galvanized.
    • Can be supplied in a minimum configuration and still allows for later upgrade to all options.
    • Prepared for mobile test line expansion with roller brake tester and wheel play detector.
  • BM FlexCheck software:
    • Advanced data collection, storing and presentation of test results.
    • Data capture from a complete inspection lane.
    • PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.

      BM FlexCheck on smartphone and tablet

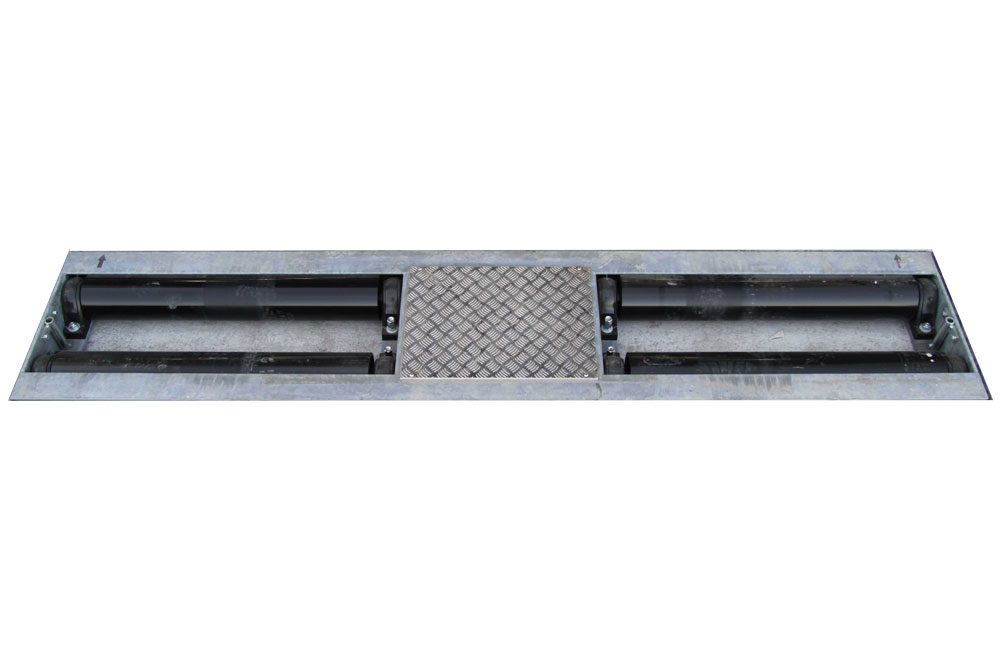

  • 4 rollers placed in a one bed steel frame.

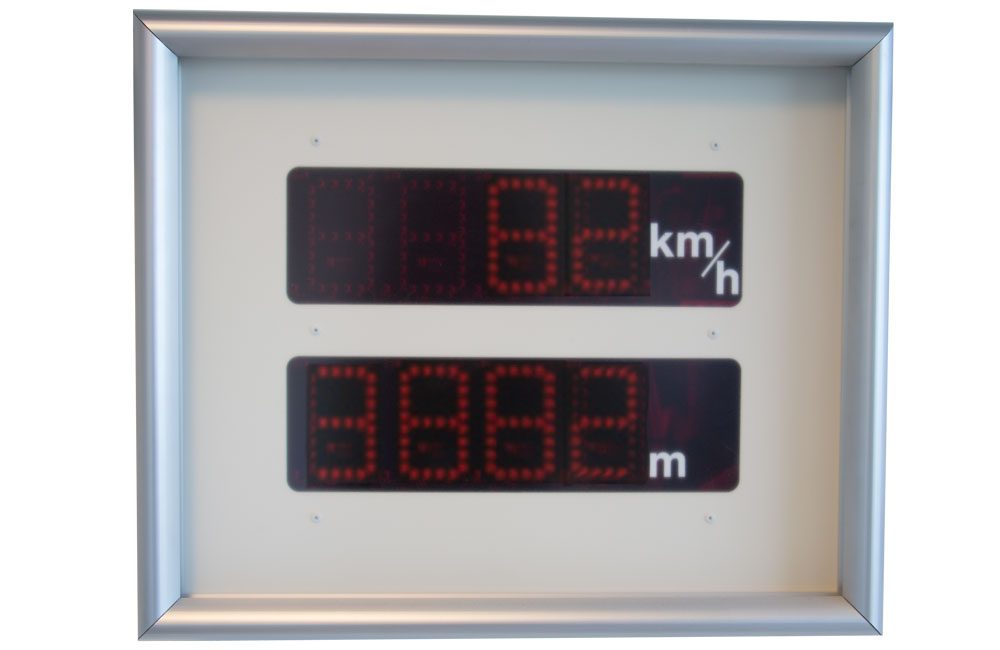

  • Large and easy-to-read display showing the speed and distance travelled.

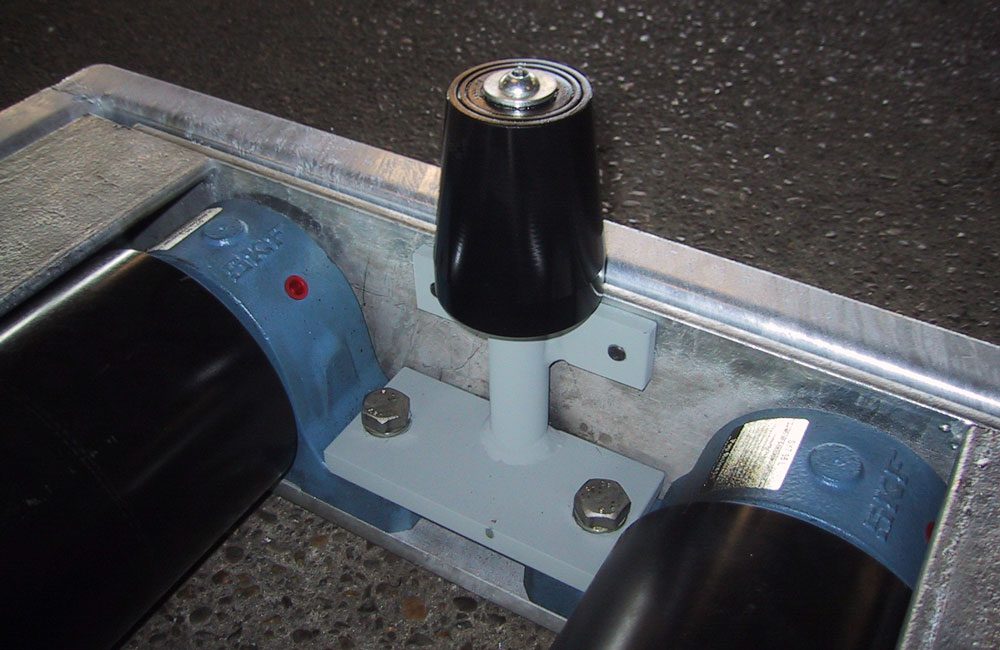

  • Integrated mechanical roller brake that allows exit in opposite direction without use of remote control.

Technical data

Weight 673 kg
Speedometer tester (LxWxH)

Subframes (LxWxH)

Roller diameter

Roller length

Wheel span

Maximum test axle weight

Measuring range

Power and fuses

Advantages

  • The rollers are only 150 mm above floor level allowing for very short drive on/off ramps (only 125 cm on each side).
  • Test of almost any vehicle regardless of brand and age.
  • The display can be mounted either on the wall, saving floor space, or on floor column devices, that are designed so equipment is protected even when floor is cleaned with chemicals.

Installation

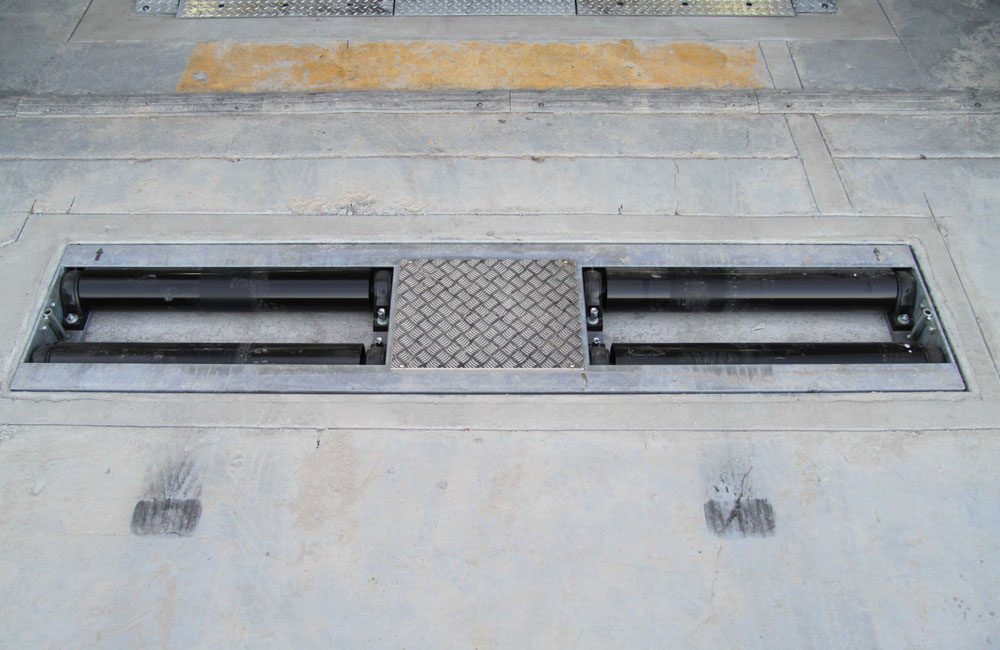

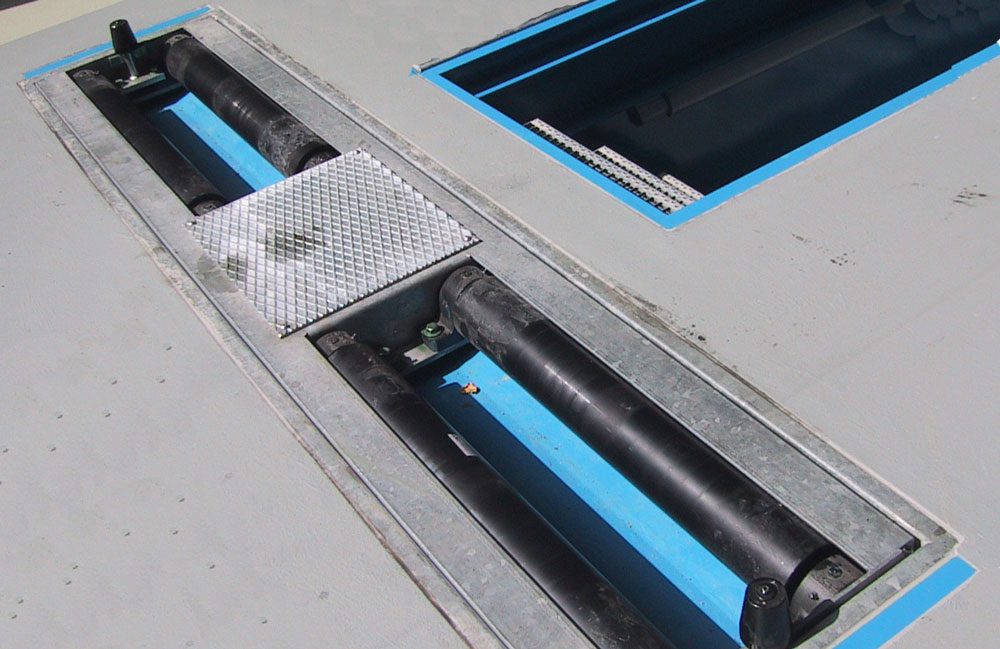

  • Can be installed in-ground using a hot galvanized subframe.

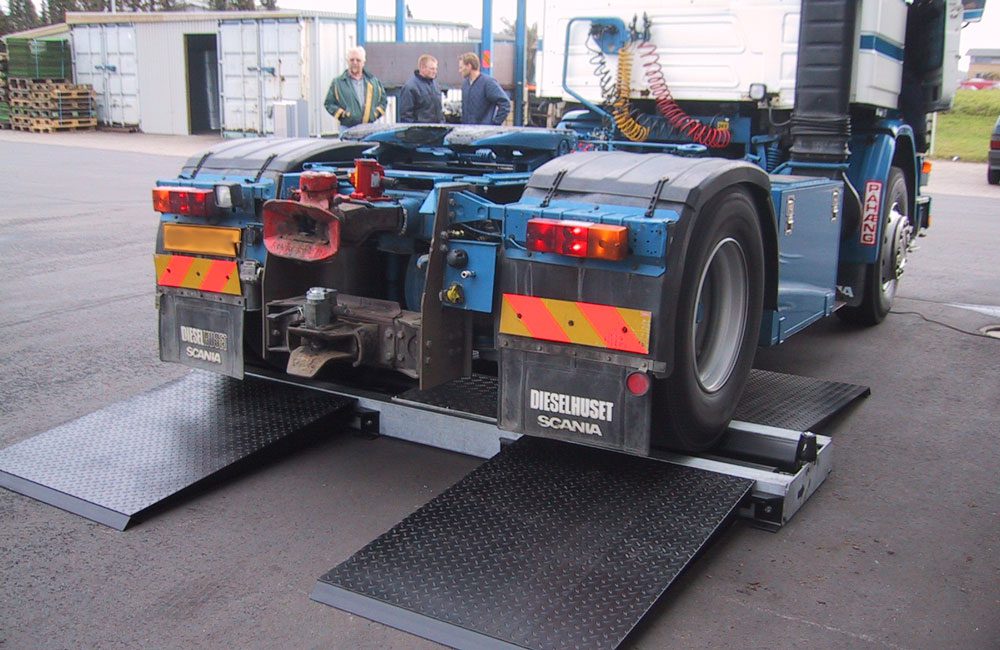

  • Can be installed on-ground.

  • Can easily be transported from site to site on a flatbed truck or trailer.

Applications

  • Private workshops.
  • Vehicle inspection bodies.

Downloads

BM Test Equipment English flag BM70A Universal Vehicle Inspection Lane for heavy vehicles brochure UK (PDF)

BM Test Equipment German flag BM70A Universal Vehicle Inspection Lane for heavy vehicles brochure DE (PDF)

BM Test Equipment Spanish flag BM70A Universal Vehicle Inspection Lane for heavy vehicles brochure ES (PDF)

Videos

BM605 – Onground Tachograph Tester

The BM605 is an onground tester for testing the speedometer of the vehicle. The BM605 can measure speed of up to 120 km/h.

BM605 – Inground Tachograph Tester

The BM605 is an inground tester for testing the speedometer of the vehicle. The BM605 can measure speed of up to 120 km/h.

BM605 in-ground tacho tester

Speed test with BM605 in-ground tacho tester. A movie by BM distributor, V-tech, in the UK.

BM605 on-ground tacho tester

Speed test with BM605 on-ground tacho tester. A movie by BM distributor, V-tech, in the UK.
