Product description

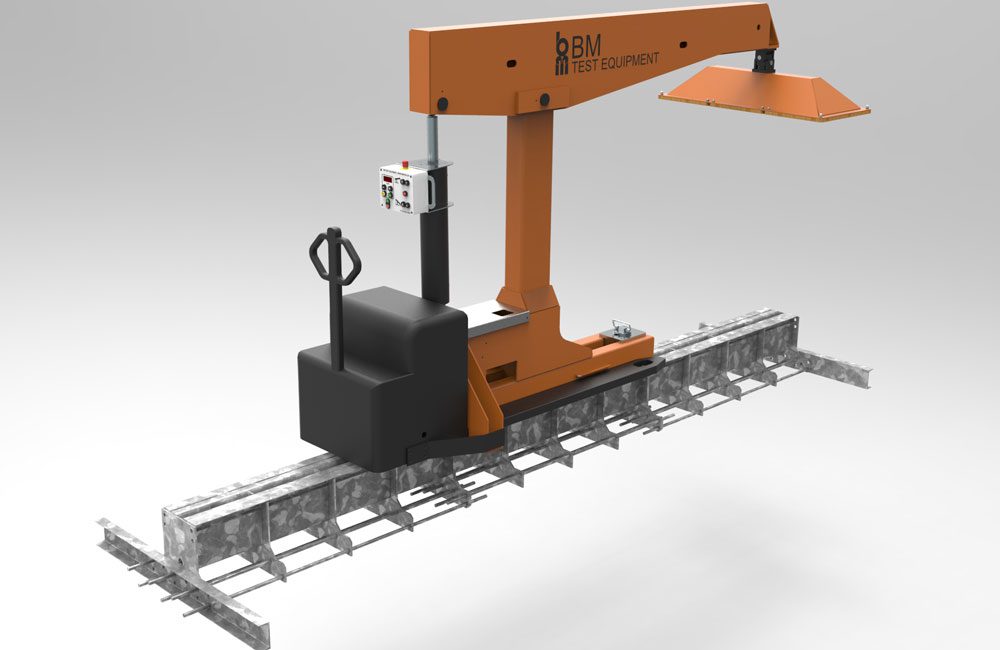

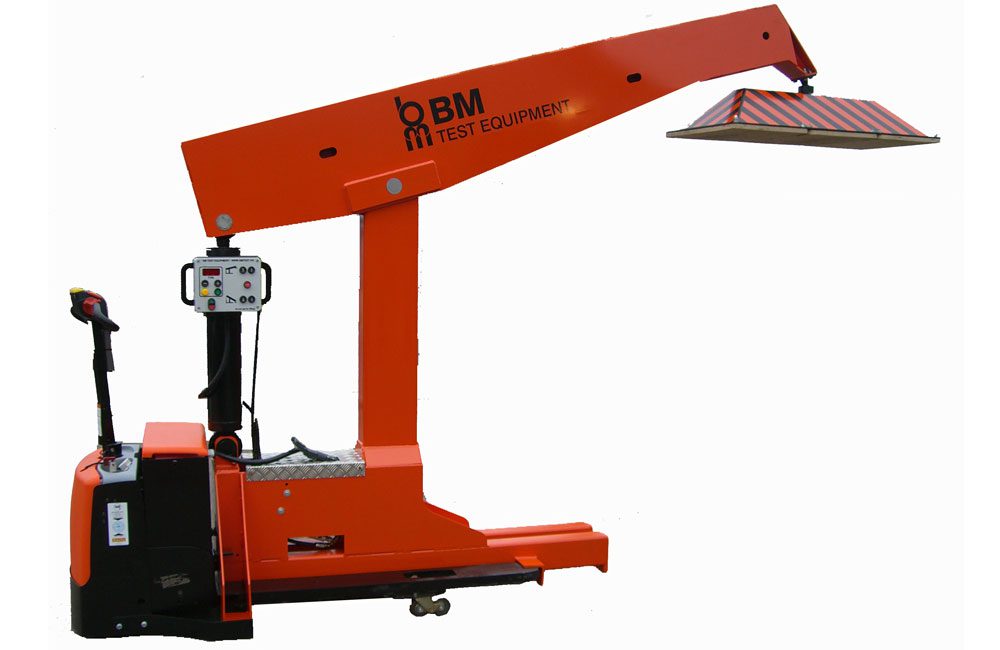

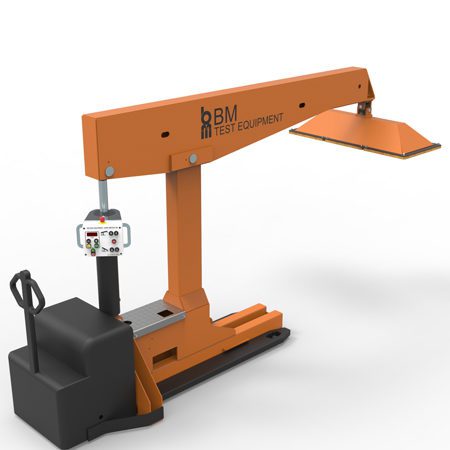

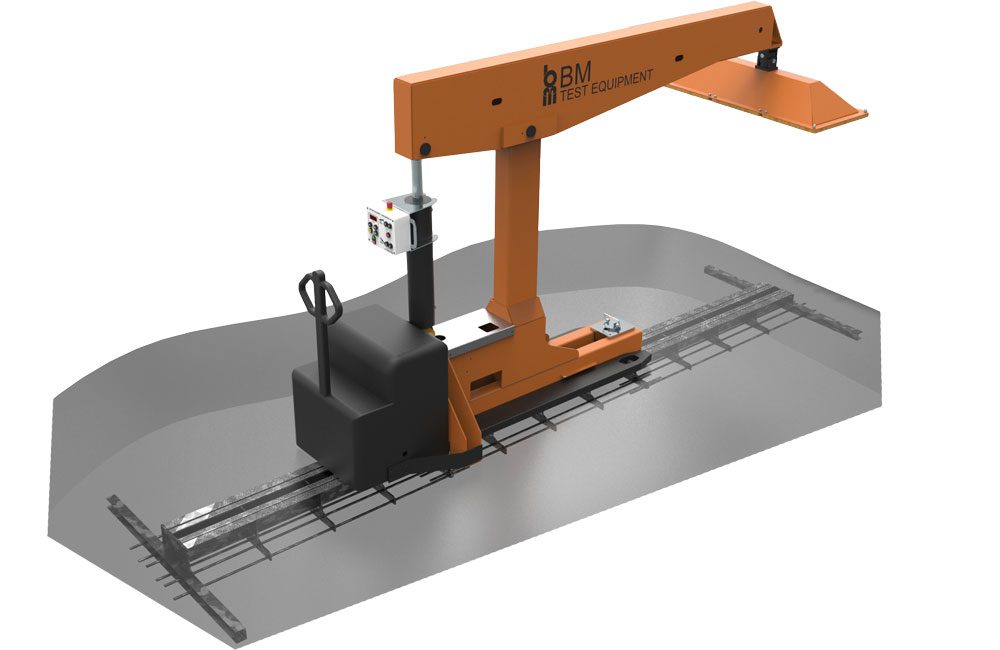

The BM74000 chassis load simulation applies the load simulation directly from top-down onto the vehicle.
This system features a range of options that allows for a costumized configuration.
OPTIONS
- Powered by an electrical pallet truck.
- Easily moved around by one person.

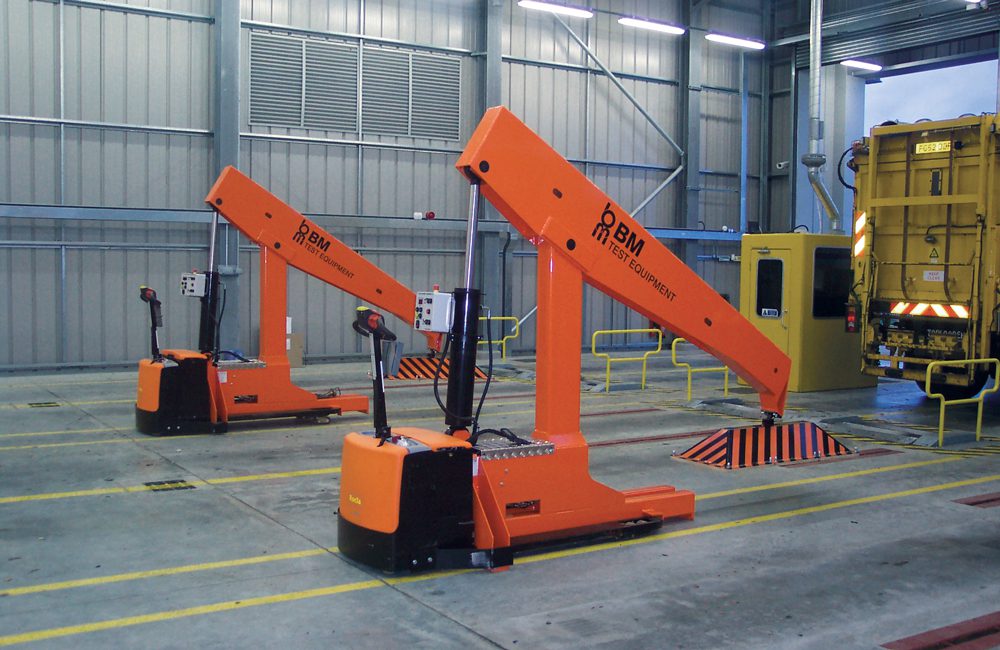

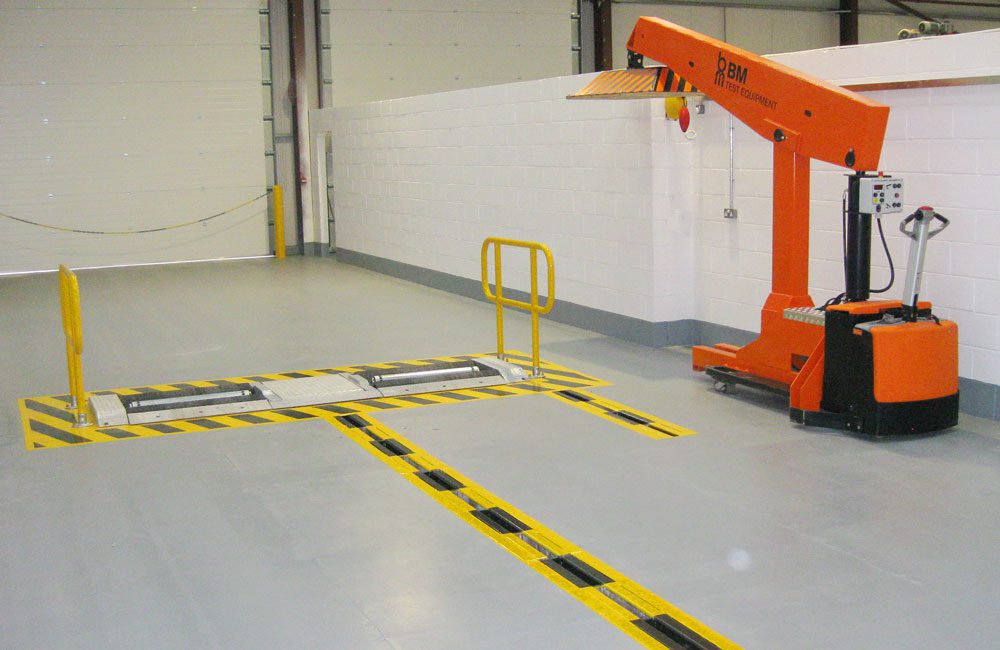

- Is moved to its position behind the vehicle or at the side.
- Load capacity:
- 10 ton (load applied directly over the axle being tested).
- > 10 Ton (load applied behind the axle(s) being tested).

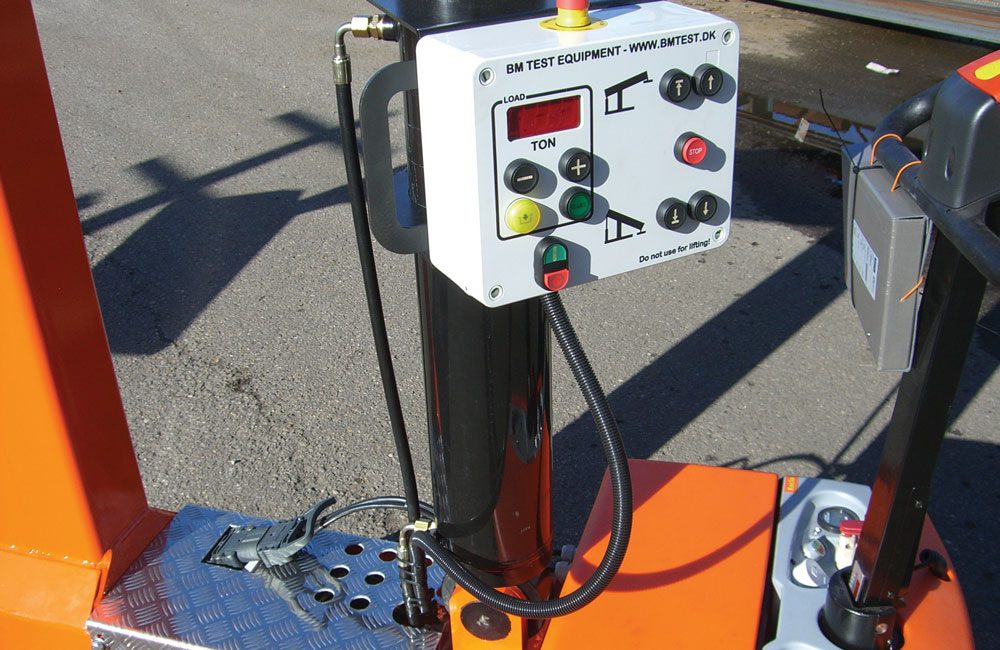

- Fully controlled from a control panel placed at the rear of the pallet truck.
- Enter requested load simulation, press START and the system will apply the load.
- Enter requested load simulation, press START and the system will apply the load.

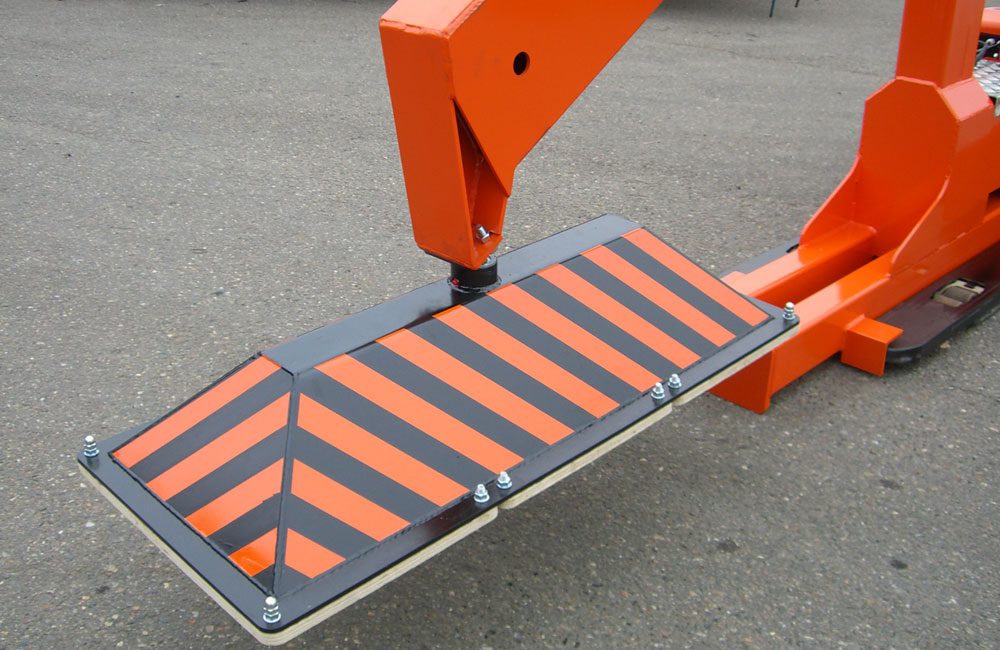

- The load platform can be turned by hand to fit into - and onto - practically any vehicle with a suitable flat area:

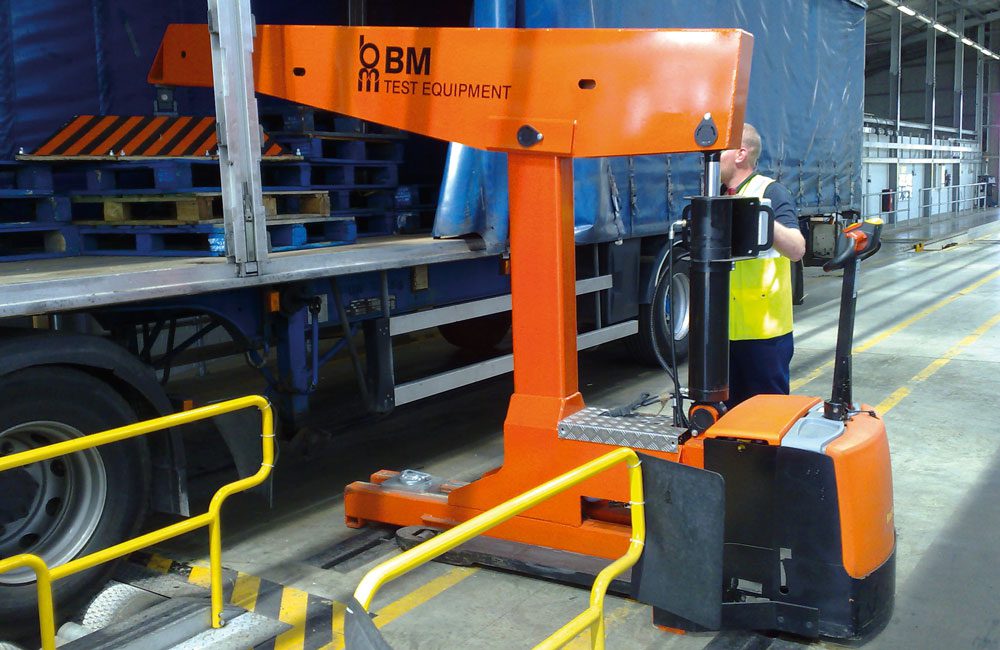

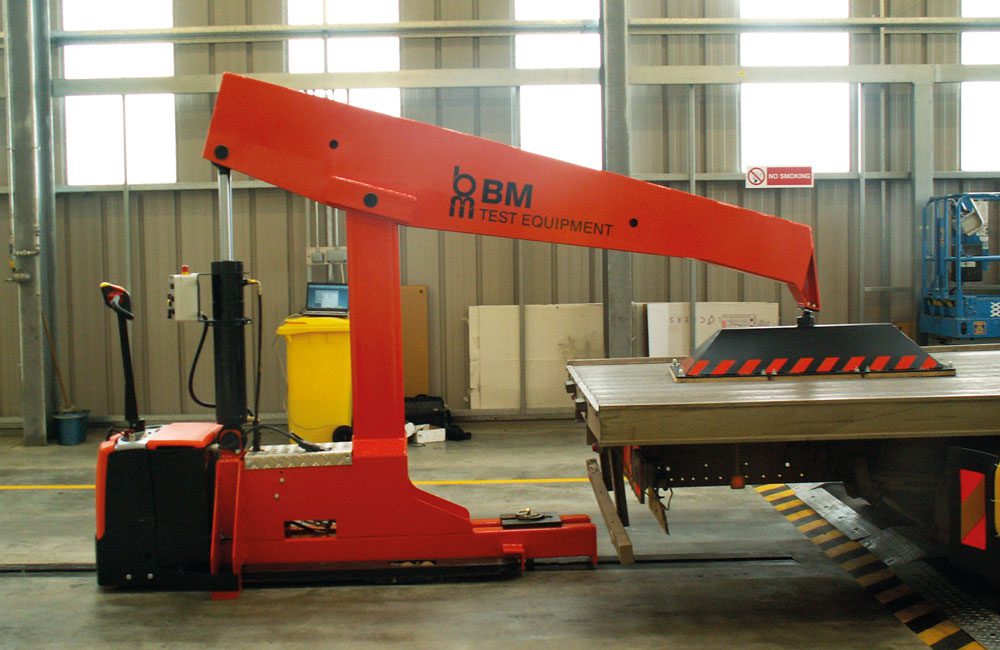

- Any vehicle with an open flat bed.

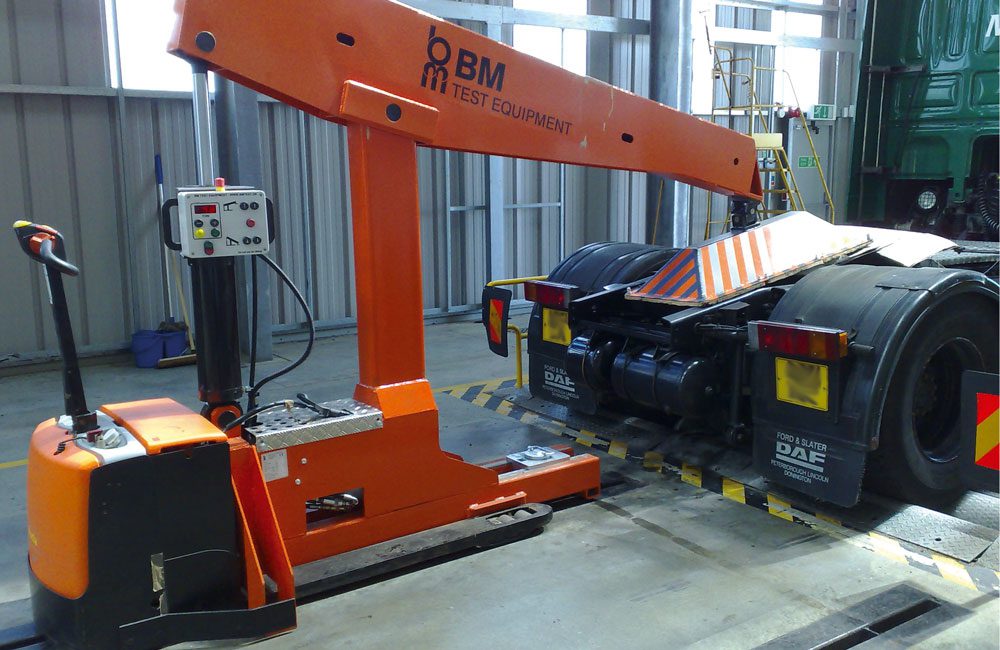

- Tractors where load is applied to the fifth wheel.
- Closed box trucks and trailers with an opening.
- Semi-trailers.
- Optional WLAN communication with the brake tester.
- Allows for control of the applied load using the RBT weighing.
See also other BM load simulation systems: BM ALS, BM CLS – Type A and BM CLS – Type D.
